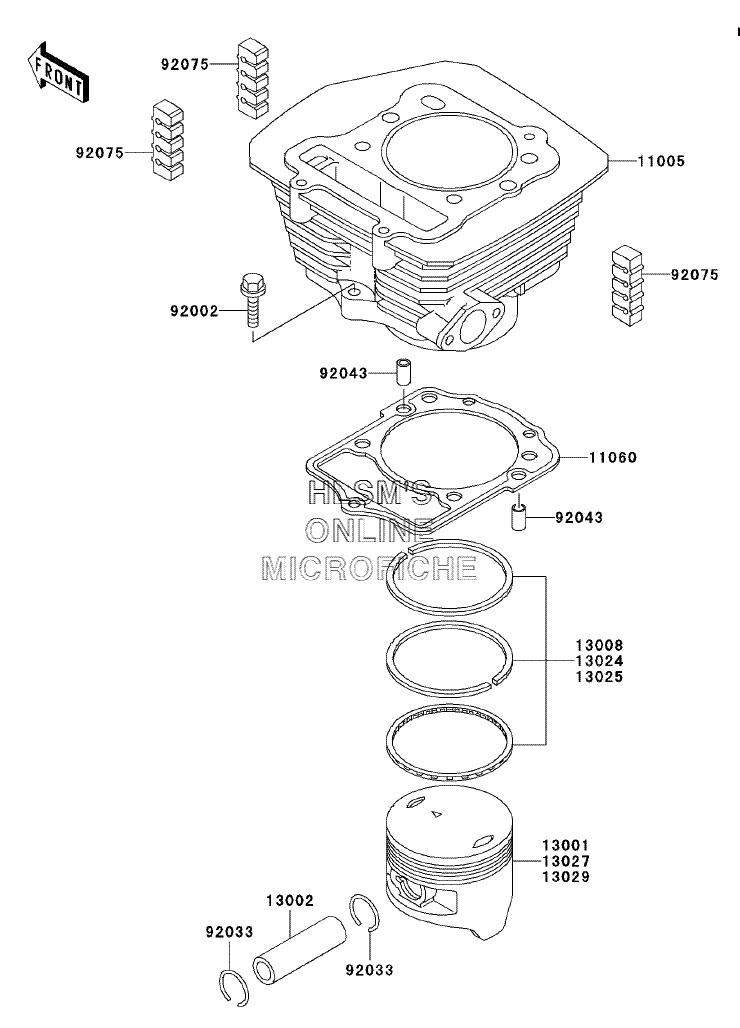

CYLINDER/PISTON(S) для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
1100511005-1533 CYLINDER-ENGINECYLINDER-ENGINE
-
1106011060-1652 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1300113001-1430 PISTON-ENGINE,STDPISTON-ENGINE,STD
-
1300213002-1059 PIN-PISTONPIN-PISTON
-
1300813008-1111 RING-SET-PISTON,STDRING-SET-PISTON,STD
-
1302413024-1080 RING-SET-PISTON LL,O/S 1.00RING-SET-PISTON LL,O/S 1.00
-
1302513025-1093 RING-SET-PISTON L,O/S 0.50RING-SET-PISTON L,O/S 0.50
-
1302713027-1178 PISTON-ENGINE LL,O/S 1.00PISTON-ENGINE LL,O/S 1.00
-
1302913029-1224 PISTON-ENGINE L,O/S 0.50PISTON-ENGINE L,O/S 0.50
-
9200292002-1105 BOLT,6X28BOLT,6X28
-
9203392033-1099 RING-SNAP,20.5X1.2RING-SNAP,20.5X1.2
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9207592075-1657 DAMPERDAMPER
