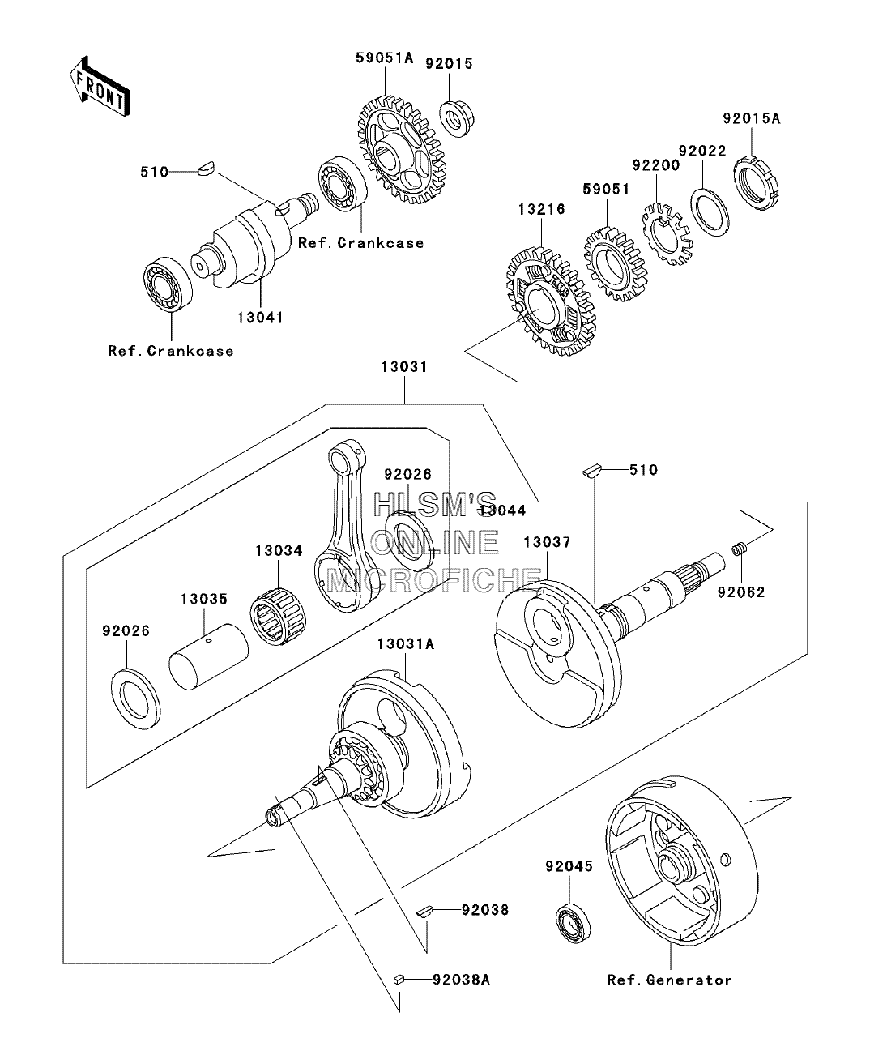

CRANKSHAFT для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
510510A5100 KEY-WOODRUFFKEY-WOODRUFF
-
1303113031-1388 CRANKSHAFT-COMPCRANKSHAFT-COMP
-
13031A13031-1402 CRANKSHAFT-COMP,LHCRANKSHAFT-COMP,LH
-
1303413034-1061 BEARING-BIG END,PK32X43X22.4BEARING-BIG END,PK32X43X22.4
-
1303513035-1067 PIN-CRANKPIN-CRANK
-
1303713037-1499 CRANKSHAFT,RHCRANKSHAFT,RH
-
1304113041-1066 BALANCERBALANCER
-
1304413044-5066 SET-CONNECTING RODSET-CONNECTING ROD
-
1321613216-1072 GEAR-COMP,BALANCERGEAR-COMP,BALANCER
-
5905159051-1140 GEAR-SPUR,OIL PUMP,36TGEAR-SPUR,OIL PUMP,36T
-
59051A59051-1141 GEAR-SPUR,BALANCER,44TGEAR-SPUR,BALANCER,44T
-
9201592015-1465 NUT,16MMNUT,16MM
-
92015A92015-1511 NUT,PUMP GEAR,30MMNUT,PUMP GEAR,30MM
-
9202292022-1987 WASHER,30.3X38X0.5WASHER,30.3X38X0.5
-
9202692026-1232 SPACER,32X51.5X1.2SPACER,32X51.5X1.2
-
9203892038-001 KEY,WOODRUFFKEY,WOODRUFF
-
92038A92038-1051 KEY,SUNKKEY,SUNK
-
9204592045-1266 BEARING-BALL,6903C3BEARING-BALL,6903C3
-
9206292062-1056 NOZZLENOZZLE
-
9220092200-1203 WASHER,PUMP GEARWASHER,PUMP GEAR
