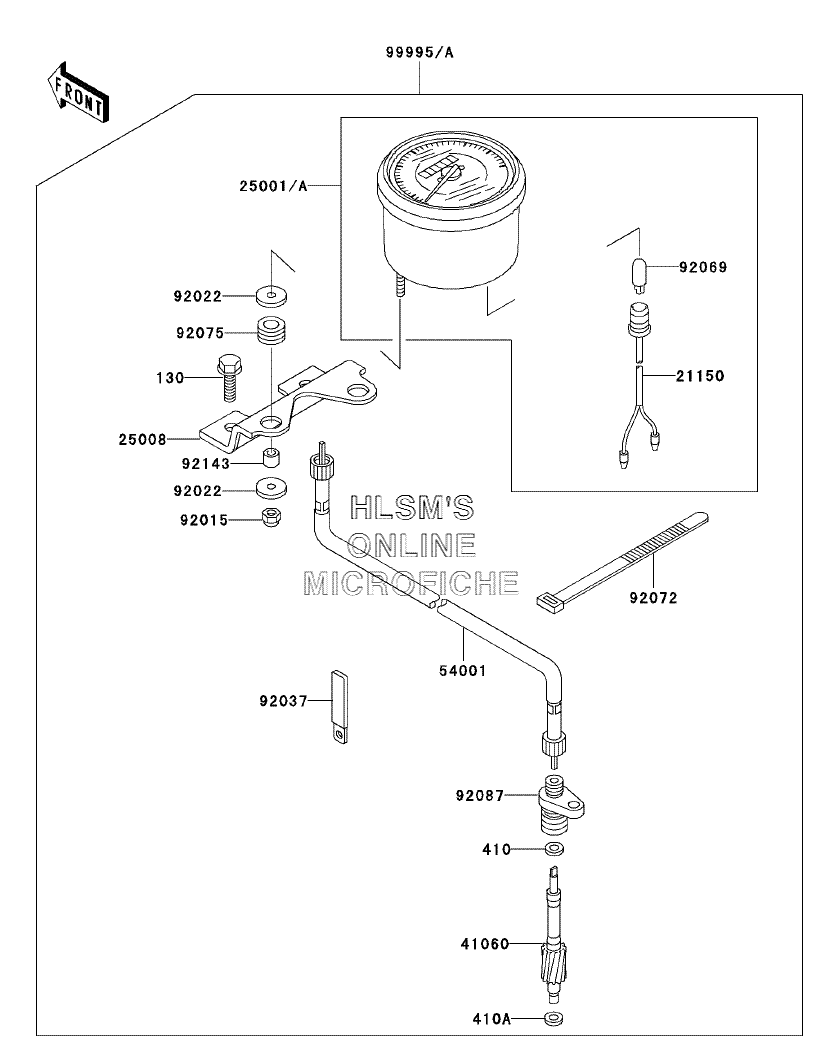

OPTIONAL PARTS (METER) для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
130130J0812 BOLT-FLANGEDBOLT-FLANGED
-
410410B0500 WASHER-PLAIN-SMALL,5MMWASHER-PLAIN-SMALL,5MM
-
410A410B0600 WASHER-PLAIN-SMALL,6MMWASHER-PLAIN-SMALL,6MM
-
2115021150-1054 CORD-ASSY,SPEEDOMETERCORD-ASSY,SPEEDOMETER
-
2500125001-1723 METER-ASSY,SPEED,MPHMETER-ASSY,SPEED,MPH
-
25001A25001-1725 METER-ASSY,SPEED,KPH (CANADA ONLY)METER-ASSY,SPEED,KPH (CANADA ONLY)
-
2500825008-1149 BRACKET-METERBRACKET-METER
-
4106041060-1126 GEAR-METER SCREWGEAR-METER SCREW
-
5400154001-1226 CABLE-SPEEDMETERCABLE-SPEEDMETER
-
9201592015-1221 NUT,LOCK,5MMNUT,LOCK,5MM
-
9202292022-1405 WASHER,5.5X20X1.2WASHER,5.5X20X1.2
-
9203792037-1069 CLAMP,L=60CLAMP,L=60
-
9206992069-1007 BULB,12V 3.4W,T10BULB,12V 3.4W,T10
-
9207292072-031 BAND,L=149BAND,L=149
-
9207592075-1409 DAMPERDAMPER
-
9208792087-1057 BUSHING-METER GEARBUSHING-METER GEAR
-
9214392143-1235 COLLAR,5.5X10X8.5COLLAR,5.5X10X8.5
-
9999599995-1415 KIT.,METER,MPHKIT.,METER,MPH
-
99995A99995-1416 KIT.,METER,KPH (CANADA ONLY)KIT.,METER,KPH (CANADA ONLY)
