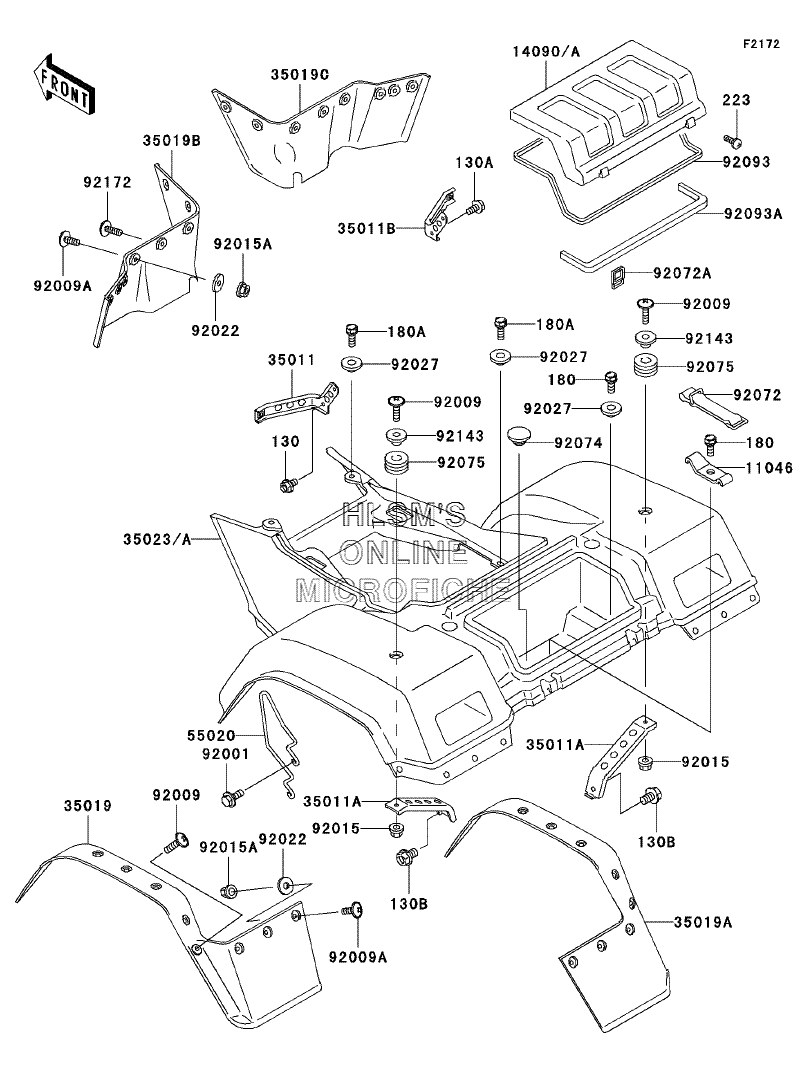

FENDER - REAR для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
130130B0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
130A130B0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130B130B0812 BOLT-FLANGED,8X12BOLT-FLANGED,8X12
-
180180D0614 BOLT-UPSET-WSBOLT-UPSET-WS
-
180A180D0618 BOLT-UPSET-WSBOLT-UPSET-WS
-
223223C0406 SCREW-PAN-WS-CROS,4X6SCREW-PAN-WS-CROS,4X6
-
1104611046-1319 BRACKET,BANDBRACKET,BAND
-
1409014090-1160-260 COVER,REAR FENDER,A.REDCOVER,REAR FENDER,A.RED
-
14090A14090-1160-6A COVER,REAR FENDER,H.GREENCOVER,REAR FENDER,H.GREEN
-
3501135011-1423 STAY,REAR FENDER,FR,LHSTAY,REAR FENDER,FR,LH
-
35011A35011-1424 STAY,REAR FENDER,UPPSTAY,REAR FENDER,UPP
-
35011B35011-1440 STAY,REAR FENDER,FR,RHSTAY,REAR FENDER,FR,RH
-
3501935019-1298-6Z FLAP,RR,LH,BLACKFLAP,RR,LH,BLACK
-
35019A35019-1299-6Z FLAP,RR,RH,BLACKFLAP,RR,RH,BLACK
-
35019B35019-1325-6Z FLAP,RR,LWR,LH,F.BLACKFLAP,RR,LWR,LH,F.BLACK
-
35019C35019-1326-6Z FLAP,RR,LWR,RH,F.BLACKFLAP,RR,LWR,RH,F.BLACK
-
3502335023-1332-260 FENDER-REAR,A.REDFENDER-REAR,A.RED
-
35023A35023-1332-6A FENDER-REAR,H.GREENFENDER-REAR,H.GREEN
-
5502055020-1322 GUARDGUARD
-
9200192001-1342 BOLT,6X18BOLT,6X18
-
9200992009-1256 SCREW,6X22,BLACKSCREW,6X22,BLACK
-
92009A92009-1621 SCREW,6X16SCREW,6X16
-
9201592015-1233 NUT,FLANGED,6MM,BLACKNUT,FLANGED,6MM,BLACK
-
92015A92015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9202292022-1093 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
9202792027-1964 COLLAR,L=4.7COLLAR,L=4.7
-
9207292072-1085 BANDBAND
-
92072A92072-1291 BAND,REAR FENDER COVERBAND,REAR FENDER COVER
-
9207492074-038 PLUG,11X3.2PLUG,11X3.2
-
9207592075-222 DAMPER,CASEDAMPER,CASE
-
9209392093-1262 SEAL,REAR FENDER COVERSEAL,REAR FENDER COVER
-
92093A92093-1539 SEAL,REAR FENDER COVERSEAL,REAR FENDER COVER
-
9214392143-1016 COLLAR,L=9.6COLLAR,L=9.6
-
9217292172-0002 SCREW,6X18SCREW,6X18
