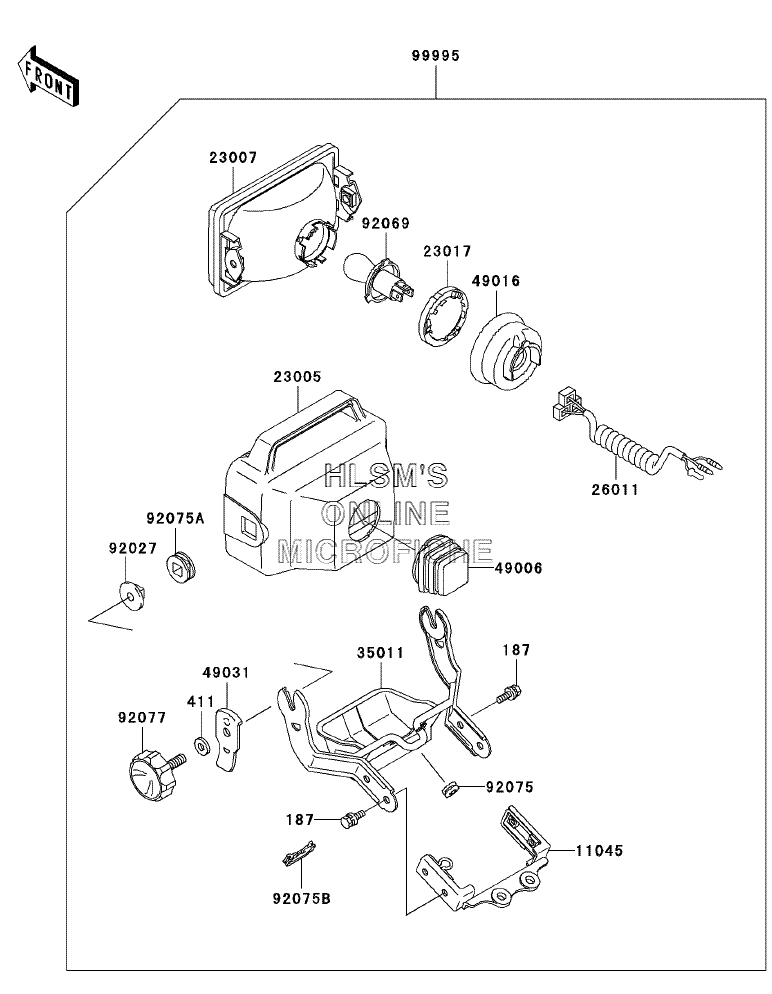

OPTIONAL PARTS (HEADLIGHT) для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
187187C0614 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
411411F0800 WASHER-PLAIN,8MM,BLACKWASHER-PLAIN,8MM,BLACK
-
1104511045-1924 BRACKET,HEAD LAMPBRACKET,HEAD LAMP
-
2300523005-1064-6Z BODY-COMP-HEAD LAMP,BLACKBODY-COMP-HEAD LAMP,BLACK
-
2300723007-1138 LENS-COMP,HEAD LAMPLENS-COMP,HEAD LAMP
-
2301723017-1051 SOCKET,BULBSOCKET,BULB
-
2601126011-1405 WIRE-LEAD,HEAD LAMPWIRE-LEAD,HEAD LAMP
-
3501135011-1413 STAY,HEAD LAMPSTAY,HEAD LAMP
-
4900649006-1172 BOOT,HEAD LAMP BODYBOOT,HEAD LAMP BODY
-
4901649016-1111 COVER-SEAL,BULB SOCKETCOVER-SEAL,BULB SOCKET
-
4903149031-1052 LATCH,HEAD LAMPLATCH,HEAD LAMP
-
9202792027-1938 COLLAR,L=11.9COLLAR,L=11.9
-
9206992069-1069 BULB,12V 65/60WBULB,12V 65/60W
-
9207592075-1482 DAMPER,HEAD LAMP HOLDERDAMPER,HEAD LAMP HOLDER
-
92075A92075-1768 DAMPER,HEAD LAMP FITTINGDAMPER,HEAD LAMP FITTING
-
92075B92075-1881 DAMPERDAMPER
-
9207792077-1060 KNOB,HEAD LAMPKNOB,HEAD LAMP
-
9999599995-1018 KIT.,HEAD LAMPKIT.,HEAD LAMP
