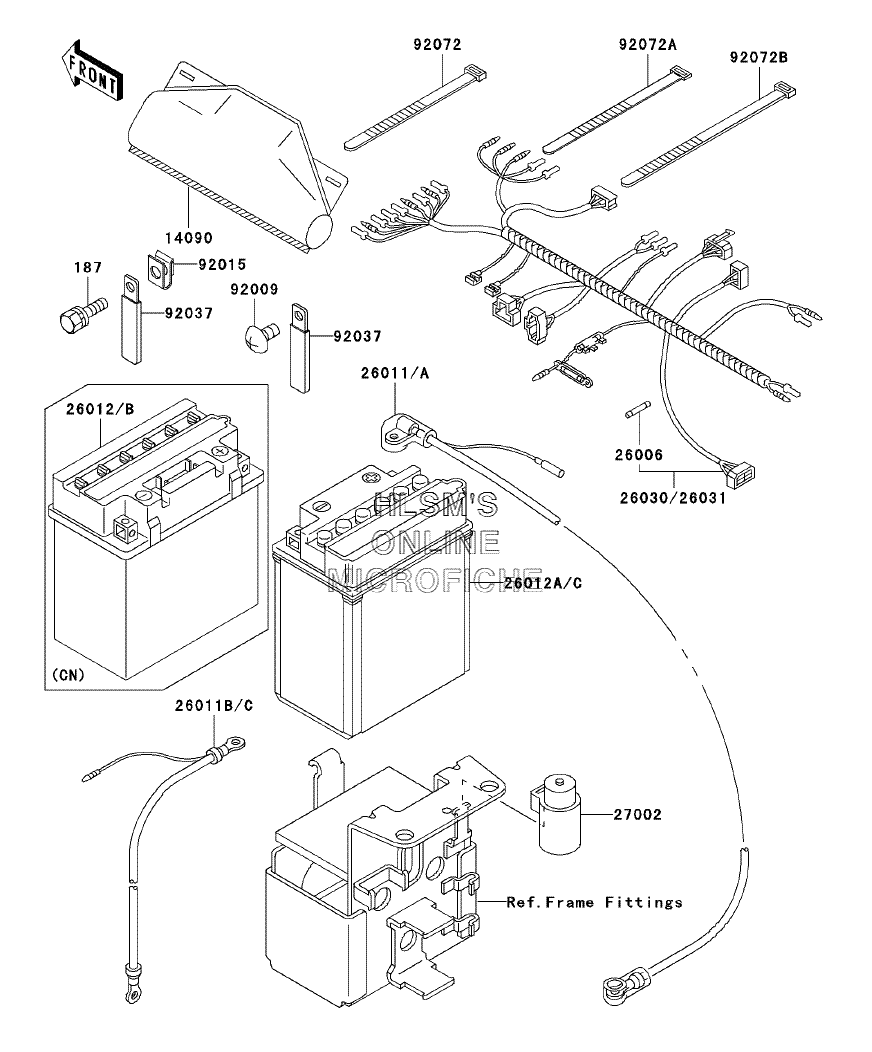

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
187187C0614 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
1409014090-1611 COVER,COUPLERCOVER,COUPLER
-
2600626006-1059 FUSE,30A,L=30FUSE,30A,L=30
-
2601126011-1544 WIRE-LEAD,BATTERY(+) (CANADA ONLY)WIRE-LEAD,BATTERY(+) (CANADA ONLY)
-
26011A26011-1545 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
26011B26011-1559 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
26011C26011-1560 WIRE-LEAD,BATTERY(-) (CANADA ONLY)WIRE-LEAD,BATTERY(-) (CANADA ONLY)
-
26012B26012-1273 BATTERY,YB16CL-B,12V 19AH (CANADA ONLY)BATTERY,YB16CL-B,12V 19AH (CANADA ONLY)
-
26012C26012-1388 BATTERY,YB14A-A2,12V 14AHBATTERY,YB14A-A2,12V 14AH
-
2603026030-1977 HARNESS,MAINHARNESS,MAIN
-
2700227002-1095 RELAY-ASSYRELAY-ASSY
-
9200992009-1155 SCREW,TAPPING,4X8SCREW,TAPPING,4X8
-
9201592015-1671 NUT,6MMNUT,6MM
-
9203792037-1069 CLAMP,L=60CLAMP,L=60
-
9207292072-030 BAND,L=123BAND,L=123
-
92072A92072-031 BAND,L=149BAND,L=149
-
92072B92072-1239 BAND,L=188BAND,L=188
