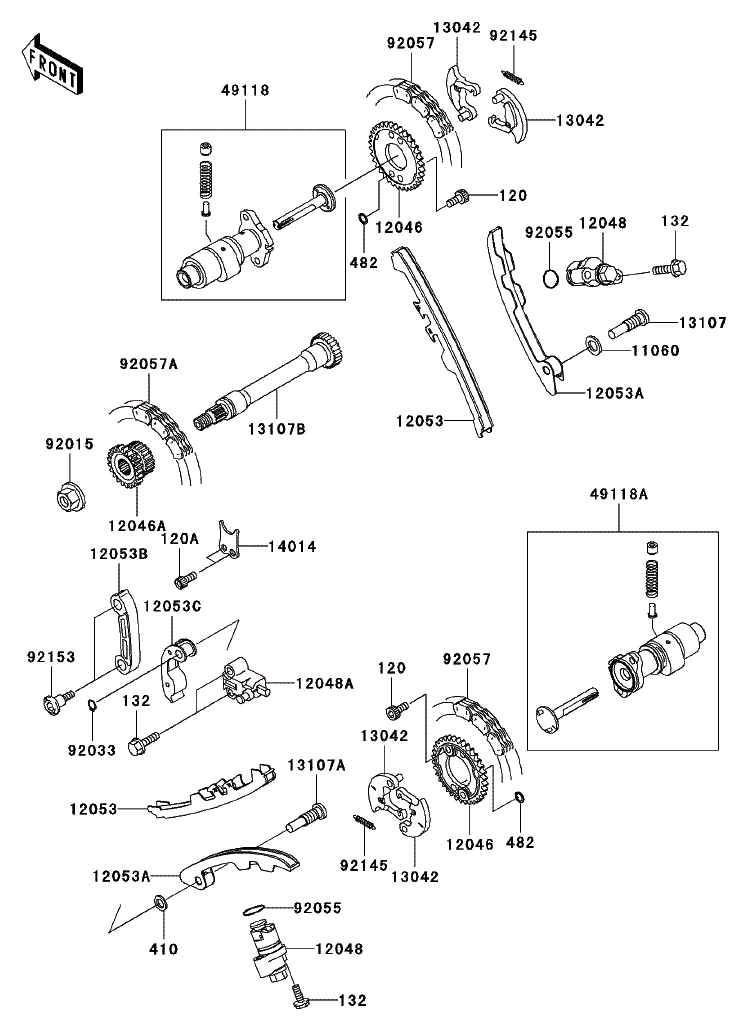

CAMSHAFT(S)/TENSIONER для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
120120P0610 BOLT-SOCKET,6X10BOLT-SOCKET,6X10
-
120A120S0614 BOLT-SOCKET,6X14BOLT-SOCKET,6X14
-
132132Y0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
410410B0800 WASHER-PLAIN-SMALL,8MMWASHER-PLAIN-SMALL,8MM
-
482482J5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
1106011060-1966 GASKETGASKET
-
1204612046-1203 SPROCKET,CAMSHAFT,34TSPROCKET,CAMSHAFT,34T
-
12046A12046-1207 SPROCKET,2ND SHAFT,21T & 17TSPROCKET,2ND SHAFT,21T & 17T
-
1204812048-1176 TENSIONER-ASSY,CAMTENSIONER-ASSY,CAM
-
12048A12048-1177 TENSIONER-ASSY,SECONDARYTENSIONER-ASSY,SECONDARY
-
1205312053-1441 GUIDE-CHAIN,CAMSHAFT,TENSIONGUIDE-CHAIN,CAMSHAFT,TENSION
-
12053A12053-1442 GUIDE-CHAIN,CAMSHAFT,SLACKGUIDE-CHAIN,CAMSHAFT,SLACK
-
12053B12053-1443 GUIDE-CHAIN,TENSIONGUIDE-CHAIN,TENSION
-
12053C12053-1444 GUIDE-CHAIN,SLACKGUIDE-CHAIN,SLACK
-
1304213042-1141 WEIGHT,DECOMPWEIGHT,DECOMP
-
1310713107-1443 SHAFT,CHAIN GUIDE,FRSHAFT,CHAIN GUIDE,FR
-
13107A13107-1444 SHAFT,CHAIN GUIDE,RRSHAFT,CHAIN GUIDE,RR
-
13107B13107-1514 SHAFT,SECONDARYSHAFT,SECONDARY
-
1401414014-1148 PLATE-POSITION,DRIVEPLATE-POSITION,DRIVE
-
4911849118-1193 CAMSHAFT-COMP,FRCAMSHAFT-COMP,FR
-
49118A49118-1194 CAMSHAFT-COMP,RRCAMSHAFT-COMP,RR
-
9201592015-1433 NUT,FLANGED,12MMNUT,FLANGED,12MM
-
9203392033-1039 RING-SNAP,8MMRING-SNAP,8MM
-
9205592055-086 RING-O,18.8X1.9RING-O,18.8X1.9
-
9205792057-1487 CHAIN,CAM SHAFTCHAIN,CAM SHAFT
-
92057A92057-1488 CHAIN,SECONDARY SHAFTCHAIN,SECONDARY SHAFT
-
9214592145-1303 SPRING,DECOMPSPRING,DECOMP
-
9215392153-1200 BOLT,SOCKET,6X24.5BOLT,SOCKET,6X24.5
