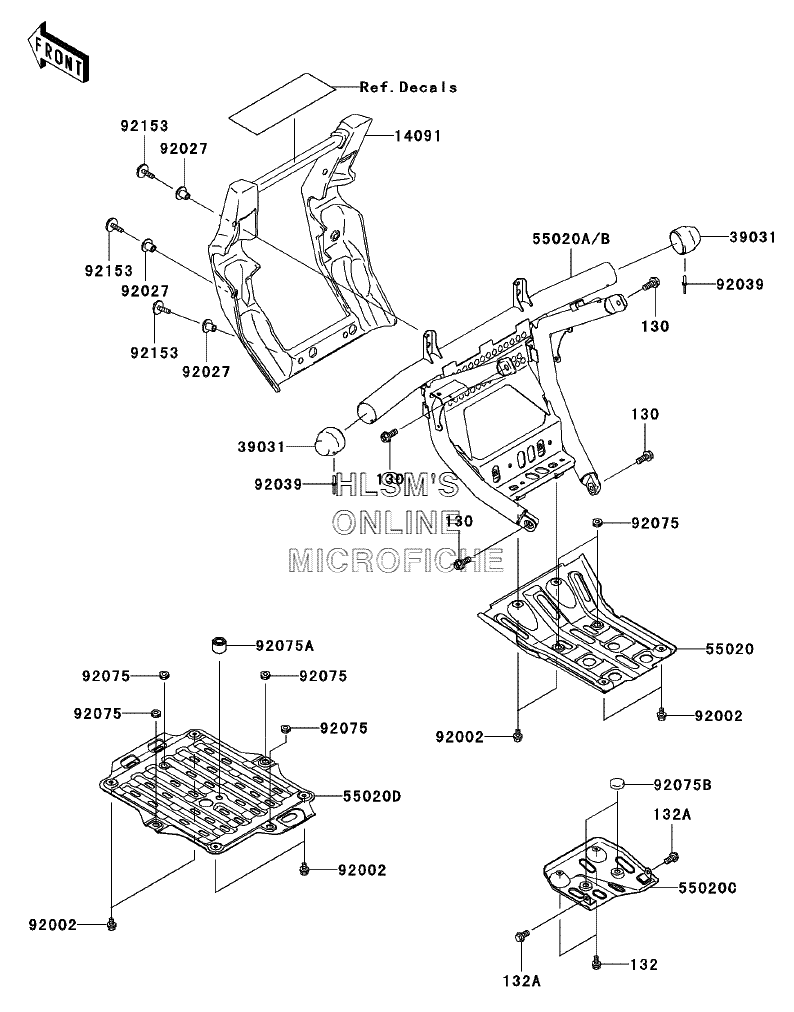

GUARD(S) для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
130130T0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
132132J0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
132A132J0816 BOLT-FLANGED-SMALL,8X16BOLT-FLANGED-SMALL,8X16
-
1409114091-0123-6Z COVER,FRONT GUARD,F.BLACKCOVER,FRONT GUARD,F.BLACK
-
3903139031-0001 CAP-END,GUARD PIPECAP-END,GUARD PIPE
-
5502055020-0001 GUARD,FRONT SKIDGUARD,FRONT SKID
-
55020A55020-0015-UF GUARD,FR,S.GOLDGUARD,FR,S.GOLD
-
55020C55020-1756 GUARD,SWING ARMGUARD,SWING ARM
-
55020D55020-1808 GUARD,ENGINE,UNDERGUARD,ENGINE,UNDER
-
9200292002-1449 BOLT,6X10BOLT,6X10
-
9202792027-1920 COLLAR,L=14.1COLLAR,L=14.1
-
9203992039-1150 RIVETRIVET
-
9207592075-051 DAMPERDAMPER
-
92075A92075-1002 DAMPERDAMPER
-
92075B92075-157 DAMPERDAMPER
-
9215392153-0665 BOLT,SOCKET,6X22BOLT,SOCKET,6X22
