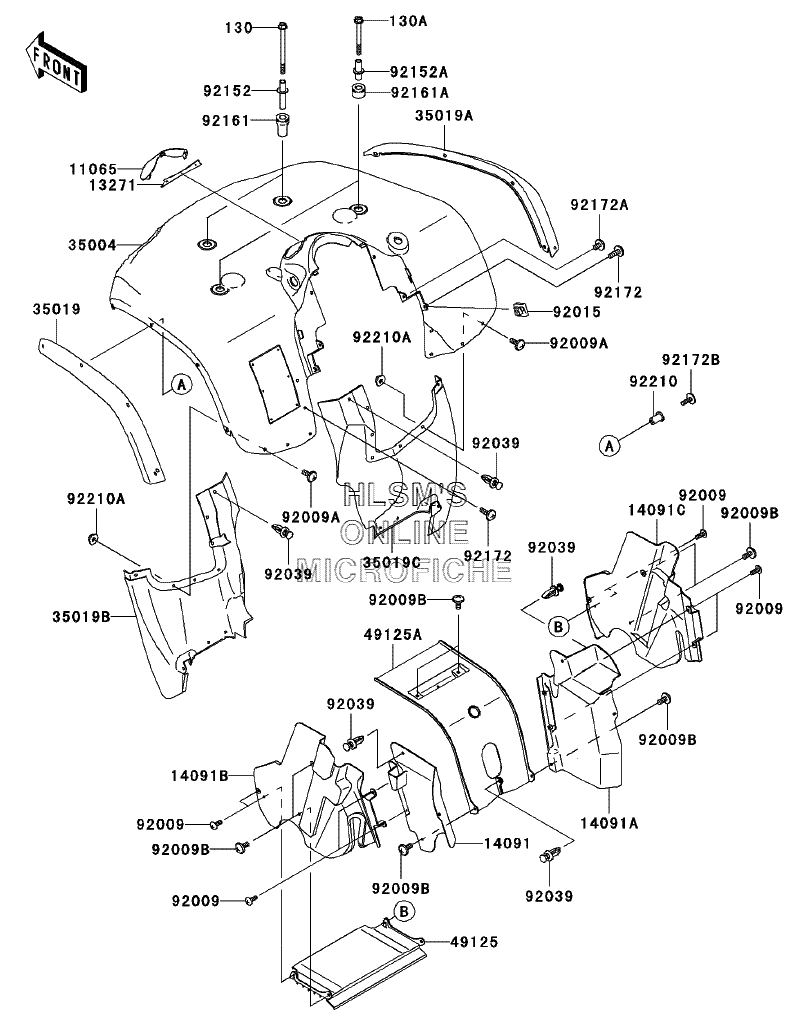

FENDER - FRONT для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
130130S08105 BOLT-FLANGED,8X105BOLT-FLANGED,8X105
-
130A130S0875 BOLT-FLANGED,8X75BOLT-FLANGED,8X75
-
1106511065-1258-374 CAP,FR FENDER,C.H.GREENCAP,FR FENDER,C.H.GREEN
-
1327113271-1640 PLATE,FR FENDER CAPPLATE,FR FENDER CAP
-
1409114091-1282 COVER,SIDE,RR,LHCOVER,SIDE,RR,LH
-
14091A14091-1283 COVER,SIDE,RR,RHCOVER,SIDE,RR,RH
-
14091B14091-1428 COVER,SIDE,FR,LHCOVER,SIDE,FR,LH
-
14091C14091-1429 COVER,SIDE,FR,RHCOVER,SIDE,FR,RH
-
3500435004-1470-374 FENDER-FRONT,C.H.GREENFENDER-FRONT,C.H.GREEN
-
3501935019-1365-6Z FLAP,FR,SIDE,LH,F.BLACKFLAP,FR,SIDE,LH,F.BLACK
-
35019A35019-1366-6Z FLAP,FR,SIDE,RH,F.BLACKFLAP,FR,SIDE,RH,F.BLACK
-
35019B35019-1391-6Z FLAP,FR,RR,LH,F.BLACKFLAP,FR,RR,LH,F.BLACK
-
35019C35019-1392-6Z FLAP,FR,RR,RH,F.BLACKFLAP,FR,RR,RH,F.BLACK
-
4912549125-0006 SHROUD,FR,LWRSHROUD,FR,LWR
-
49125A49125-1081 SHROUD,FR,UPPSHROUD,FR,UPP
-
9200992009-1197 SCREW,TAPPING,5X14SCREW,TAPPING,5X14
-
92009A92009-1621 SCREW,6X16SCREW,6X16
-
92009B92009-1662 SCREW,6X14SCREW,6X14
-
9201592015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9203992039-1229 RIVETRIVET
-
9215292152-0025 COLLAR,L=90COLLAR,L=90
-
92152A92152-0026 COLLAR,L=60.7COLLAR,L=60.7
-
9216192161-0035 DAMPER,L=58.5DAMPER,L=58.5
-
92161A92161-1166 DAMPER,L=25.5DAMPER,L=25.5
-
9217292172-0002 SCREW,6X18SCREW,6X18
-
92172A92172-0005 SCREW,6X10SCREW,6X10
-
92172B92172-1063 SCREW,5X18SCREW,5X18
-
9221092210-0012 NUT,POP,5MMNUT,POP,5MM
-
92210A92210-1368 NUT,6MMNUT,6MM
