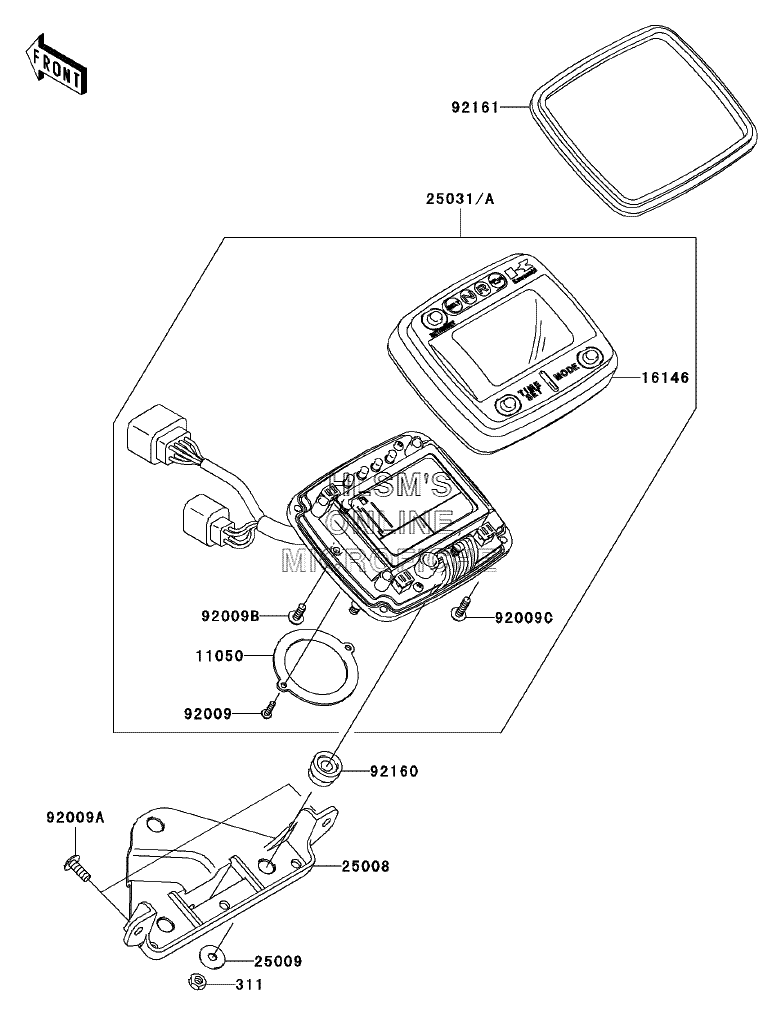

METER(S) для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
311311C0500 NUT-HEXNUT-HEX
-
1105011050-1932 BRACKET,METERBRACKET,METER
-
1614616146-0011 COVER-ASSY,UPPERCOVER-ASSY,UPPER
-
2500825008-1226 BRACKET-METERBRACKET-METER
-
2500925009-004 WASHER,5.2X16X1.2WASHER,5.2X16X1.2
-
2503125031-0025 METER-ASSY,MPH (US ONLY)METER-ASSY,MPH (US ONLY)
-
25031A25031-0026 METER-ASSY,KPH (CANADA ONLY)METER-ASSY,KPH (CANADA ONLY)
-
9200992009-1028 SCREW,TAPPING,3X12SCREW,TAPPING,3X12
-
92009A92009-1197 SCREW,TAPPING,5X14SCREW,TAPPING,5X14
-
92009B92009-1254 SCREW,TAPPING,4X12SCREW,TAPPING,4X12
-
92009C92009-1663 SCREW,6X18SCREW,6X18
-
9216092160-1460 DAMPERDAMPER
-
9216192161-1114 DAMPER,METER,UPPDAMPER,METER,UPP
