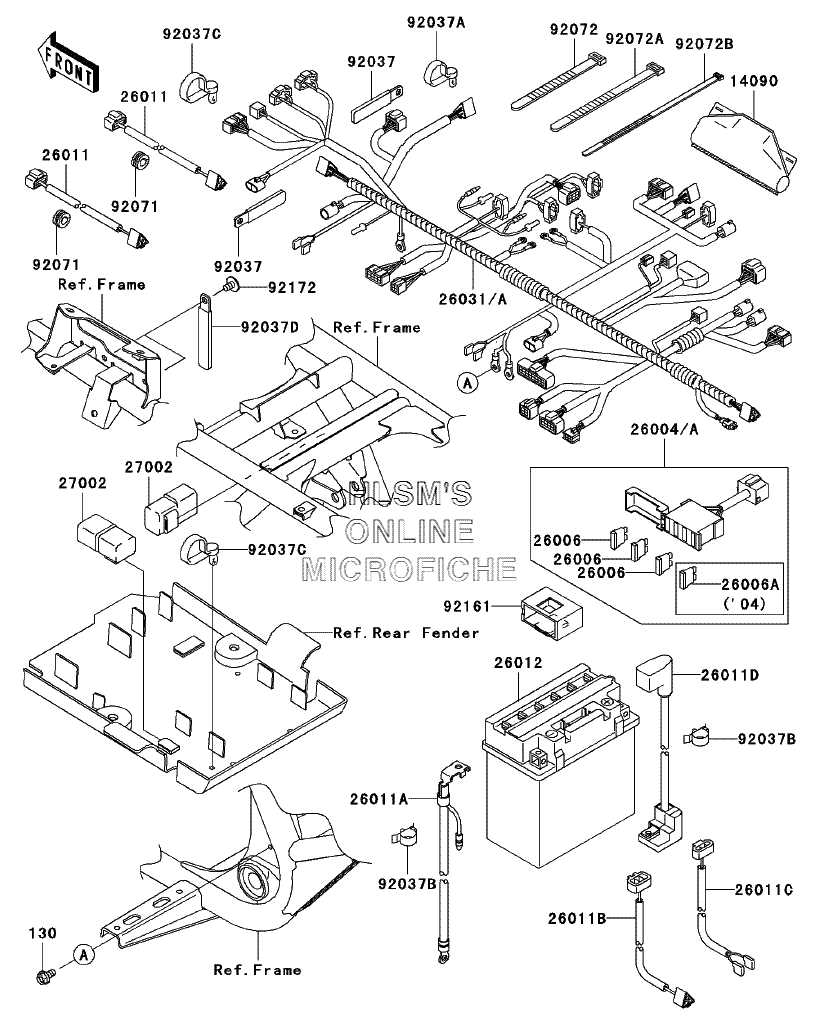

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
130130B0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
1409014090-1331 COVER,COUPLERCOVER,COUPLER
-
2600426004-0003 FUSE-ASSYFUSE-ASSY
-
2600626006-1007 FUSE,10A-RFUSE,10A-R
-
26006A26006-1061 FUSE,15A-BFUSE,15A-B
-
2601126011-1741 WIRE-LEAD,HEAD LAMPWIRE-LEAD,HEAD LAMP
-
26011A26011-1752 WIRE-LEAD,BATTERY(-)WIRE-LEAD,BATTERY(-)
-
26011B26011-1801 WIRE-LEAD,SPEED SENSORWIRE-LEAD,SPEED SENSOR
-
26011C26011-1802 WIRE-LEAD,FRONT BRAKEWIRE-LEAD,FRONT BRAKE
-
26011D26011-1827 WIRE-LEAD,BATTERY(+)WIRE-LEAD,BATTERY(+)
-
2601226012-1414 BATTERY,MF,KMX14-BS,12V 12AHBATTERY,MF,KMX14-BS,12V 12AH
-
2603126031-0021 HARNESS,MAINHARNESS,MAIN
-
2700227002-1086 RELAY-ASSYRELAY-ASSY
-
9203792037-1069 CLAMP,L=60CLAMP,L=60
-
92037A92037-1163 CLAMP,SPEED,L=58CLAMP,SPEED,L=58
-
92037B92037-1878 CLAMP,HARNESSCLAMP,HARNESS
-
92037C92037-1903 CLAMP,SPEED,L=80.5CLAMP,SPEED,L=80.5
-
92037D92037-1993 CLAMPCLAMP
-
9207192071-1128 GROMMETGROMMET
-
9207292072-030 BAND,L=123BAND,L=123
-
92072A92072-031 BAND,L=149BAND,L=149
-
92072B92072-1239 BAND,L=188BAND,L=188
-
9216192161-1136 DAMPER,FUSEDAMPER,FUSE
-
9217292172-0005 SCREW,6X10SCREW,6X10
