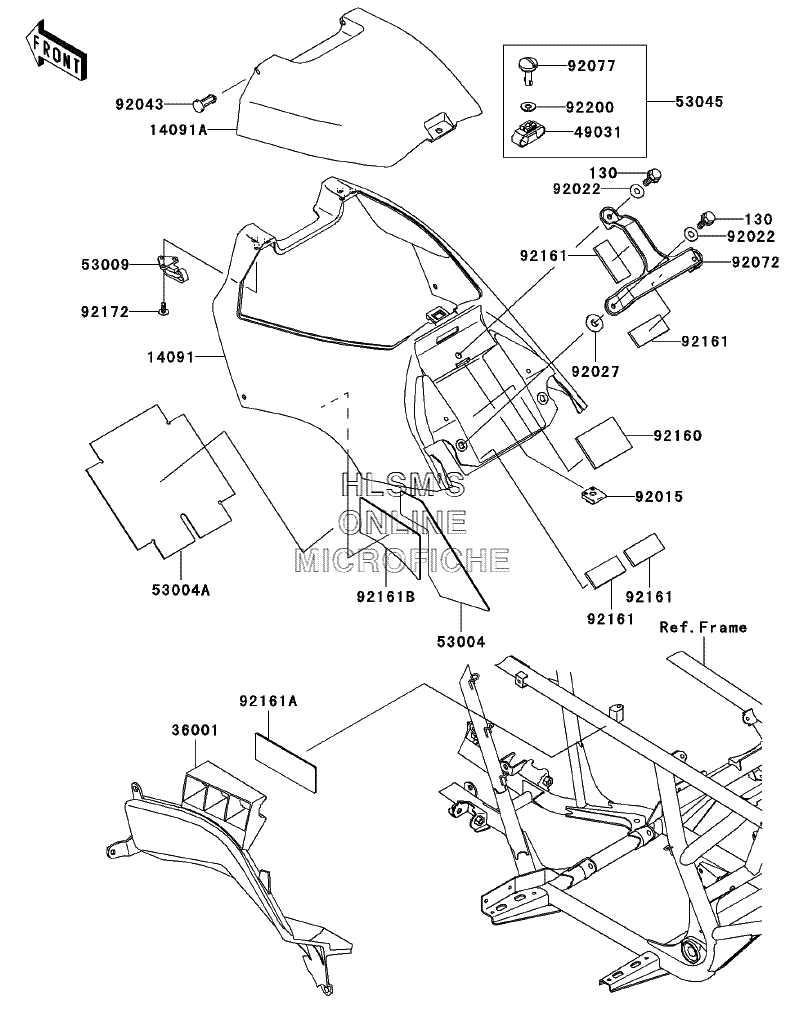

SIDE COVERS для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
130130J0618 BOLT-FLANGED,6X18BOLT-FLANGED,6X18
-
1409114091-1558-374 COVER,FUEL TANK,C.H.GREENCOVER,FUEL TANK,C.H.GREEN
-
14091A14091-1559-374 COVER,FUEL TANK,UPP,C.H.GREENCOVER,FUEL TANK,UPP,C.H.GREEN
-
3600136001-1647 COVER-SIDECOVER-SIDE
-
4903149031-1060 LATCHLATCH
-
5300453004-1148 MAT,FUEL TANK COVERMAT,FUEL TANK COVER
-
53004A53004-1172 MAT,BATTERY CASEMAT,BATTERY CASE
-
5300953009-1110 HINGE,FUEL TANK COVER,FRHINGE,FUEL TANK COVER,FR
-
5304553045-1070 HOOK-ASSY,FUEL TANK COVER,RRHOOK-ASSY,FUEL TANK COVER,RR
-
9201592015-1678 NUT,CLAMP,6MMNUT,CLAMP,6MM
-
9202292022-1093 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
9202792027-1964 COLLAR,L=4.7COLLAR,L=4.7
-
9204392043-1623 PIN,HINGEPIN,HINGE
-
9207292072-1406 BAND,BATTERYBAND,BATTERY
-
9207792077-1129 KNOBKNOB
-
9216092160-1897 DAMPER,BATTERYDAMPER,BATTERY
-
9216192161-1127 DAMPERDAMPER
-
92161A92161-1201 DAMPER,SIDE COVERDAMPER,SIDE COVER
-
92161B92161-1202 DAMPER,FUEL TANK COVERDAMPER,FUEL TANK COVER
-
9217292172-1061 SCREW,TAPPING,5X10SCREW,TAPPING,5X10
-
9220092200-1578 WASHERWASHER
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S)/TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CONTROL
- CONVERTER COVER
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER/PISTON(S)
- DECALS
- DRIVE CONVERTER
- DRIVE SHAFT- FRONT
- DRIVE SHAFT- PROPELLER
- DRIVE SHAFT- REAR
- DRIVEN CONVERTER W/ DRIVE BELT
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- FRONT HUB
- FUEL TANK
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S)
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS (DRIVE CONVERTER)
- OPTIONAL PARTS (GUARD)
- OWNER'S TOOLS
- PUBLICATIONS
- RADIATOR (JKAVF6B1 4B504674 AND ABOVE)
- RADIATOR (UP TO JKAVF6B1 4B504673)
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- • SIDE COVERS
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S)
- WHEELS/TIRES
