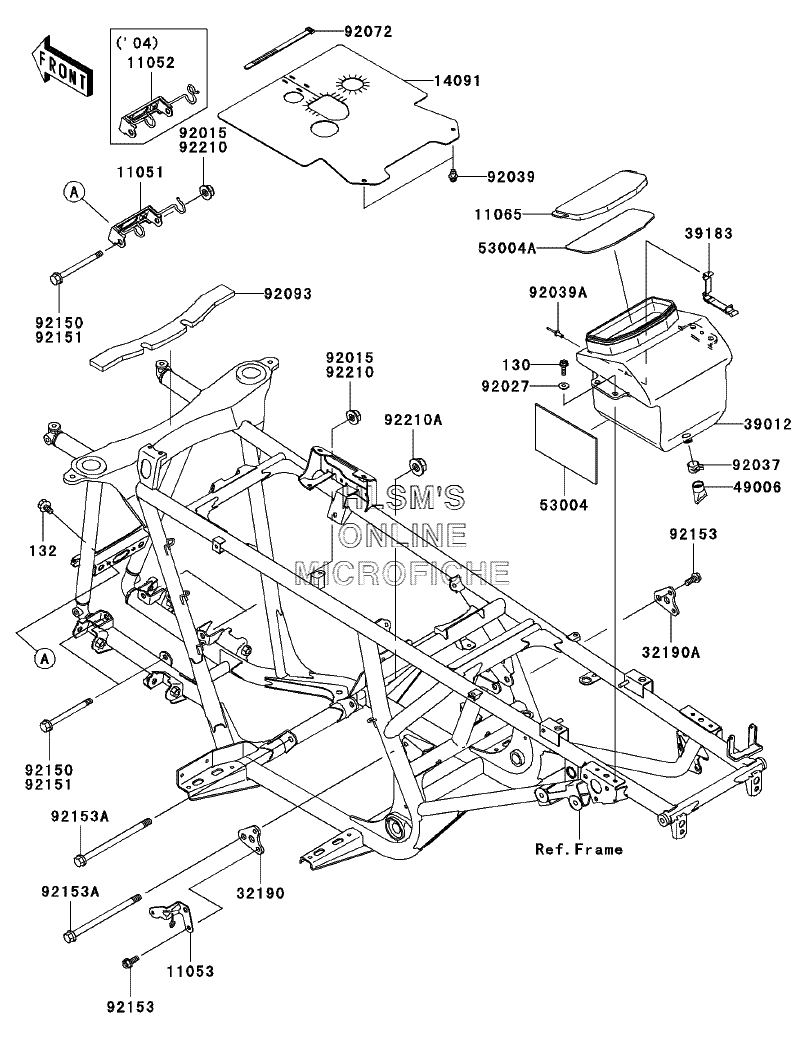

FRAME FITTINGS для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
130130G0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
132132J0814 BOLT-FLANGED-SMALL,8X14BOLT-FLANGED-SMALL,8X14
-
1105211052-1181 BRACKET,FRONT DIFFBRACKET,FRONT DIFF
-
1105311053-0481 BRACKET,RESERVOIR TANKBRACKET,RESERVOIR TANK
-
1106511065-1154 CAP,STORAGE CASECAP,STORAGE CASE
-
1409114091-1347 COVER,FR,UPPCOVER,FR,UPP
-
3219032190-0045 BRACKET-ENGINE,RR,UPP,LHBRACKET-ENGINE,RR,UPP,LH
-
32190A32190-0046 BRACKET-ENGINE,RR,UPP,RHBRACKET-ENGINE,RR,UPP,RH
-
3901239012-1064 CASE-STORAGECASE-STORAGE
-
3918339183-1065 BAND-ASSY,TOOL BAGBAND-ASSY,TOOL BAG
-
4900649006-1292 BOOTBOOT
-
5300453004-1139 MAT,STORAGE CASEMAT,STORAGE CASE
-
53004A53004-1147 MAT,STORAGE CASE CAPMAT,STORAGE CASE CAP
-
9202792027-1936 COLLARCOLLAR
-
9203792037-1460 CLAMP,HOSE CLIPCLAMP,HOSE CLIP
-
9203992039-1229 RIVETRIVET
-
92039A92039-3719 RIVET,4.8MMRIVET,4.8MM
-
9207292072-030 BAND,L=123BAND,L=123
-
9209392093-1555 SEALSEAL
-
9215192151-1914 BOLT,FLANGED,10X120BOLT,FLANGED,10X120
-
9215392153-0948 BOLT,FLANGED,8X20BOLT,FLANGED,8X20
-
92153A92153-1272 BOLT,FLANGED,12X190BOLT,FLANGED,12X190
-
9221092210-1081 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1150 NUT,LOCK,FLANGED,12MMNUT,LOCK,FLANGED,12MM
