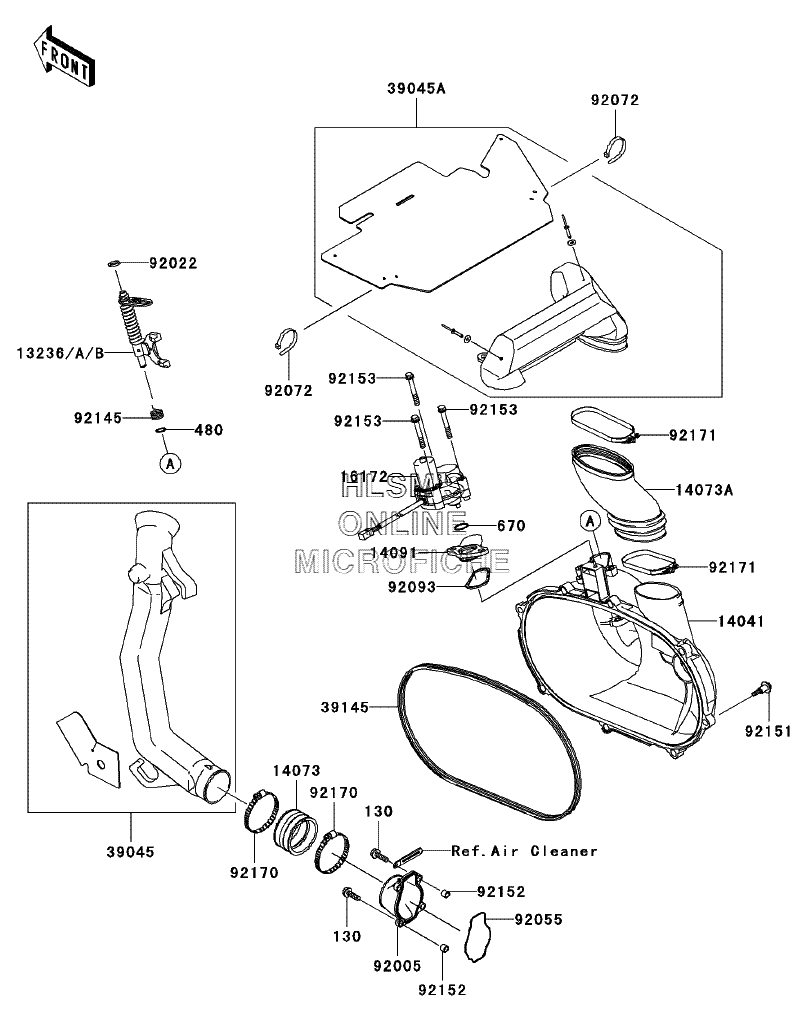

CONVERTER COVER для Kawasaki Prairie 700 4x4 Hardwoods Green HD (KVF700-B1) - 2004 года выпуска
-
№АртикулНазвание
-
130130Z0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
480480J1000 CIRCLIP-TYPE-C,10MMCIRCLIP-TYPE-C,10MM
-
670670D3022 O RINGO RING
-
1323613236-0046 LEVER-COMP,YELLOWLEVER-COMP,YELLOW
-
13236A13236-0047 LEVER-COMP,GREENLEVER-COMP,GREEN
-
13236B13236-0048 LEVER-COMP,PAINT LESSLEVER-COMP,PAINT LESS
-
1404114041-1158 COVER-COMPCOVER-COMP
-
1407314073-1775 DUCT,JOINTDUCT,JOINT
-
14073A14073-1792 DUCT,EXHAUSTDUCT,EXHAUST
-
1409114091-1421 COVERCOVER
-
1617216172-0006 ACTUATORACTUATOR
-
3904539045-0002 DUCT-ASSY,SNORKEL,INDUCT-ASSY,SNORKEL,IN
-
39045A39045-1063 DUCT-ASSY,SNORKEL,EXDUCT-ASSY,SNORKEL,EX
-
3914539145-1135 TRIM-SEALTRIM-SEAL
-
9200592005-1387 FITTINGFITTING
-
9202292022-1829 WASHER,10.2X16X1WASHER,10.2X16X1
-
9205592055-1630 RING-ORING-O
-
9207292072-1239 BAND,L=188BAND,L=188
-
9209392093-1548 SEALSEAL
-
9214592145-1567 SPRINGSPRING
-
9215192151-1686 BOLT,FLANGED,6X30BOLT,FLANGED,6X30
-
9215292152-1332 COLLARCOLLAR
-
9215392153-0678 BOLT,6X47BOLT,6X47
-
9217092170-1764 CLAMPCLAMP
-
9217192171-1336 CLAMPCLAMP
