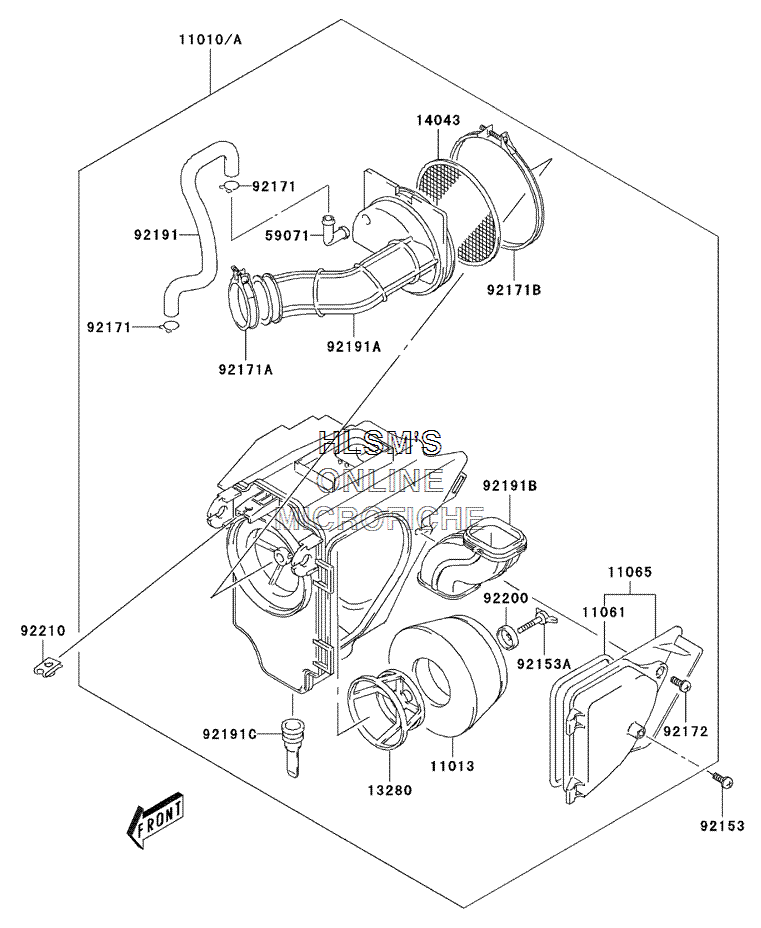

AIR CLEANER для Kawasaki KLX 125L - 2003 года выпуска
-
№АртикулНазвание
-
1101011010-S003 FILTER, ASSY, AIRFILTER, ASSY, AIR
-
1101311013-S004 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1106111061-S039 GASKETGASKET
-
1106511065-S033 CAP, AIR CLEANERCAP, AIR CLEANER
-
1328013280-S014 HOLDER, FILTERHOLDER, FILTER
-
1404314043-S003 FILTERFILTER
-
5907159071-S003 JOINTJOINT
-
9215392153-S011 BOLTBOLT
-
92153A92153-S165 BOLTBOLT
-
9217192171-S006 CLAMPCLAMP
-
92171A92171-S009 CLAMPCLAMP
-
92171B92171-S054 CLAMP, OUTLET TUBECLAMP, OUTLET TUBE
-
9217292172-S163 SCREWSCREW
-
9219192191-S030 TUBE, BREATHERTUBE, BREATHER
-
92191A92191-S032 TUBE, OUTLETTUBE, OUTLET
-
92191B92191-S033 TUBE, INLETTUBE, INLET
-
92191C92191-S043 TUBE, DRAINTUBE, DRAIN
-
9220092200-S076 WASHERWASHER
-
9221092210-S050 NUTNUT
