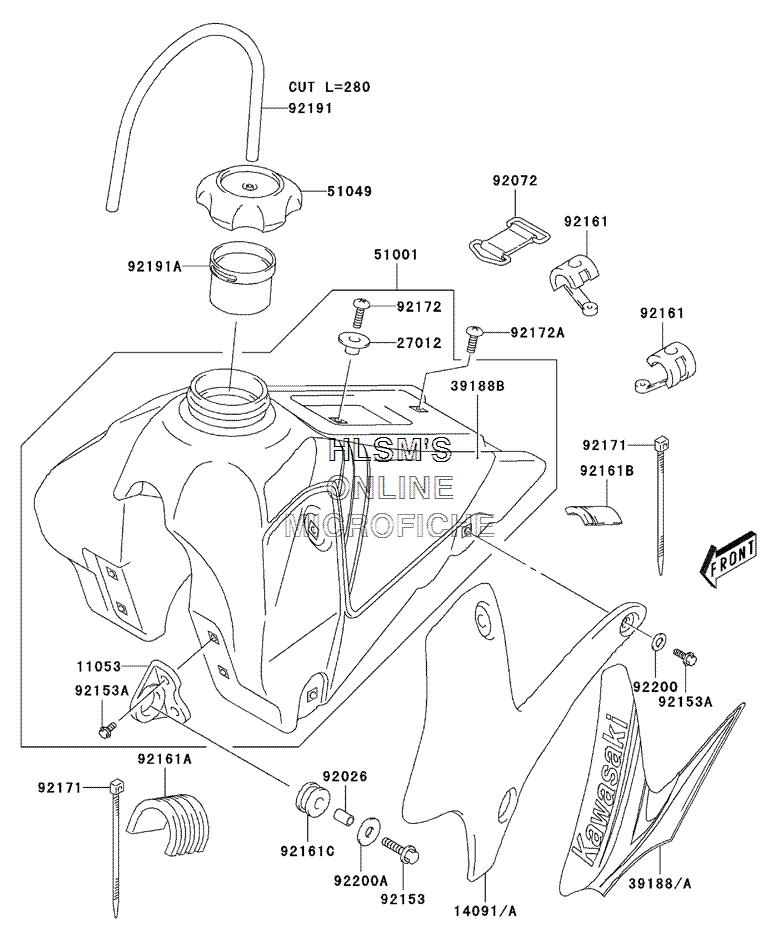

FUEL TANK для Kawasaki KLX 125L - 2003 года выпуска`
-
№АртикулНазвание
-
1105311053-S001 BRACKET, FUEL TANK, FRONTBRACKET, FUEL TANK, FRONT
-
1409114091-S062-535 COVER, FUEL TANK (RIGHT) (L.GREEN)COVER, FUEL TANK (RIGHT) (L.GREEN)
-
14091A14091-S063-535 COVER, FUEL TANK (LEFT) (L.GREEN)COVER, FUEL TANK (LEFT) (L.GREEN)
-
2701227012-S003 HOOK, SEAT FRONTHOOK, SEAT FRONT
-
3918839188-S002-537 TAPE, FUEL TANK COVER (RIGHT)TAPE, FUEL TANK COVER (RIGHT)
-
39188A39188-S003-537 TAPE, FUEL TANK COVER (LEFT)TAPE, FUEL TANK COVER (LEFT)
-
39188B39188-S005-536 TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
5100151001-S004-539 TANK, COMP, FUEL (S.BLACK)TANK, COMP, FUEL (S.BLACK)
-
5104951049-S004 CAP, TANKCAP, TANK
-
9202692026-S049 SPACER, FUEL TANK, FRONTSPACER, FUEL TANK, FRONT
-
9207292072-S004 BAND, FUEL TANK, REARBAND, FUEL TANK, REAR
-
9215392153-S003 BOLTBOLT
-
92153A92153-S144 BOLTBOLT
-
9216192161-S062 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161A92161-S063 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161B92161-S064 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92161C92161-S065 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9217192171-S056 CLAMP, FUEL TANK CUSHIONCLAMP, FUEL TANK CUSHION
-
9217292172-S019 SCREWSCREW
-
92172A92172-S055 SCREWSCREW
-
9219192191-S028 TUBE, FUEL TANK BREATHERTUBE, FUEL TANK BREATHER
-
92191A92191-S029 TUBE, FUEL TANK FILLERTUBE, FUEL TANK FILLER
-
9220092200-S078 WASHERWASHER
-
92200A92200-S080 WASHERWASHER
