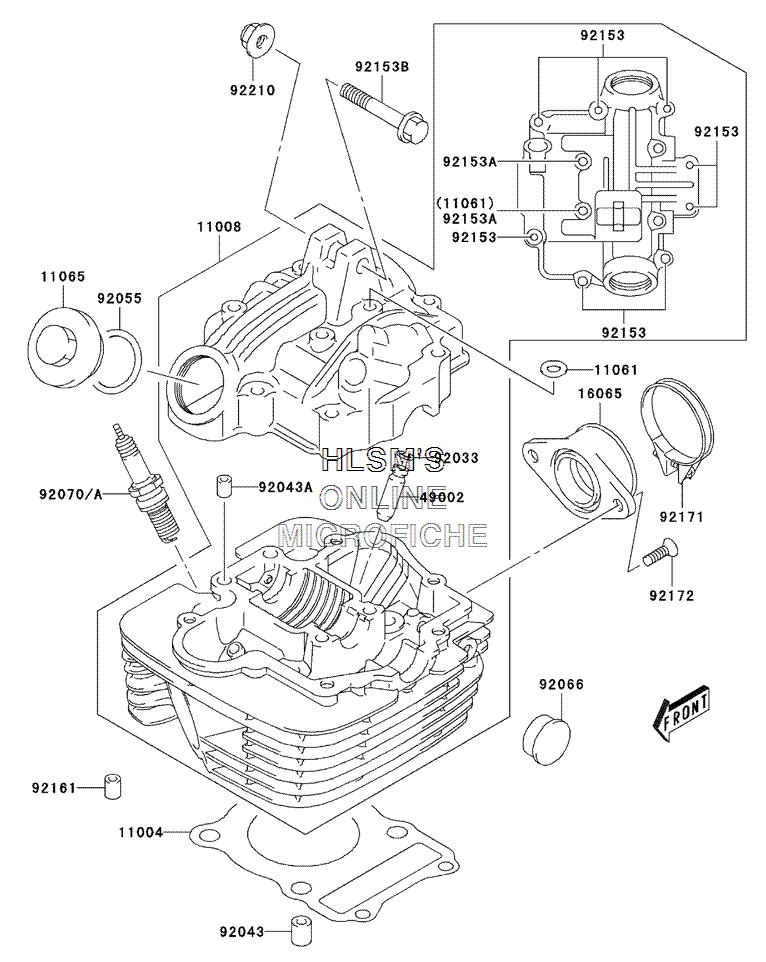

CYLINDER HEAD для Kawasaki KLX 125L - 2003 года выпуска
-
№АртикулНазвание
-
1100411004-S003 GASKET, HEADGASKET, HEAD
-
1100811008-S003 HEAD, COMP, CYLINDERHEAD, COMP, CYLINDER
-
1106111061-S001 GASKET, 5.8X13X1.2GASKET, 5.8X13X1.2
-
1106511065-S014 CAP, INSPECTIONCAP, INSPECTION
-
1606516065-S005 HOLDER, CARBURETORHOLDER, CARBURETOR
-
4900249002-S002 GUIDE, VALVEGUIDE, VALVE
-
9203392033-S021 RING, SNAPRING, SNAP
-
9204392043-S002 PINPIN
-
92043A92043-S004 PIN, 6.2X8X11PIN, 6.2X8X11
-
9205592055-S036 O-RING, D=3O-RING, D=3
-
9206692066-S014 PLUGPLUG
-
9207092070-S013 PLUG, SPARK, X24ESR, U (DN)PLUG, SPARK, X24ESR, U (DN)
-
92070A92070-S014 PLUG, SPARK, DR8EA (NGK)PLUG, SPARK, DR8EA (NGK)
-
9215392153-S130 BOLTBOLT
-
92153A92153-S131 BOLTBOLT
-
92153B92153-S176 BOLTBOLT
-
9216192161-S056 DAMPER, CYLINDER HEADDAMPER, CYLINDER HEAD
-
9217192171-S049 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
9217292172-S008 SCREWSCREW
-
9221092210-S094 NUTNUT
