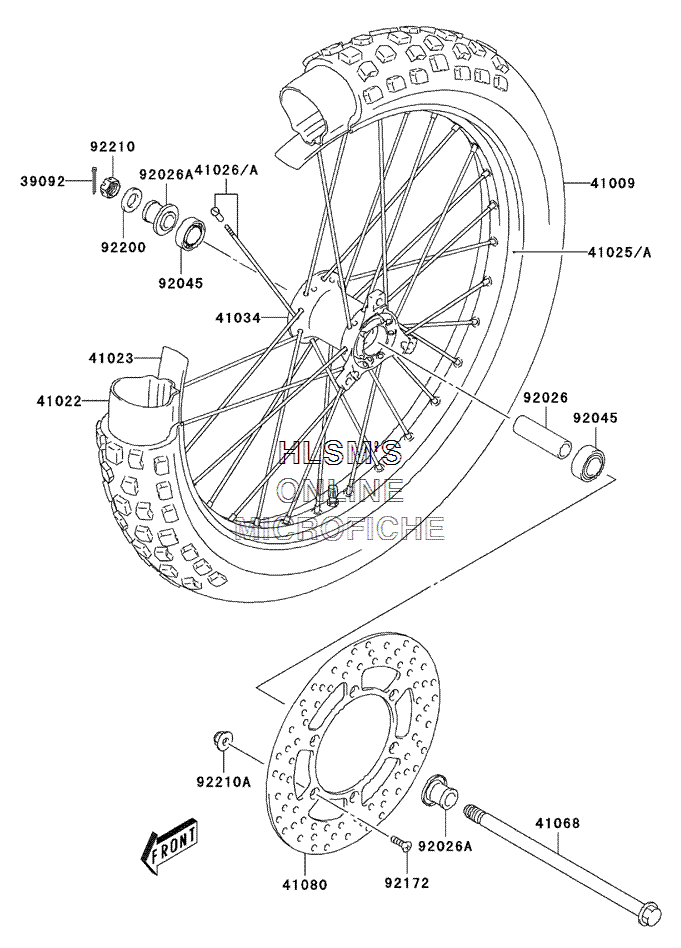

FRONT HUB для Kawasaki KLX 125L - 2003 года выпуска
-
№АртикулНазвание
-
3909239092-S005 PIN, HAIR, COTTERPIN, HAIR, COTTER
-
4100941009-S007 TIRE, FRONTTIRE, FRONT
-
4102241022-S003 TUBE, TIRETUBE, TIRE
-
4102341023-S003 BAND, RIMBAND, RIM
-
4102541025-S003 RIM, FRONT WHEEL, 19X1.40RIM, FRONT WHEEL, 19X1.40
-
4102641026-S003 SPOKE, ASSY, FRONT WHEELSPOKE, ASSY, FRONT WHEEL
-
4103441034-S002 DRUM, ASSY, FRONT WHEELDRUM, ASSY, FRONT WHEEL
-
4106841068-S005 AXLE, FRONTAXLE, FRONT
-
4108041080-S004 DISCDISC
-
9202692026-S050 SPACER, FRONT HUB BEARINGSPACER, FRONT HUB BEARING
-
92026A92026-S051 SPACER, FRONT AXLESPACER, FRONT AXLE
-
9204592045-S002 BEARING, BALL, FRONT HUBBEARING, BALL, FRONT HUB
-
9217292172-S109 SCREWSCREW
-
9220092200-S079 WASHERWASHER
-
9221092210-S064 NUTNUT
-
92210A92210-S066 NUTNUT
