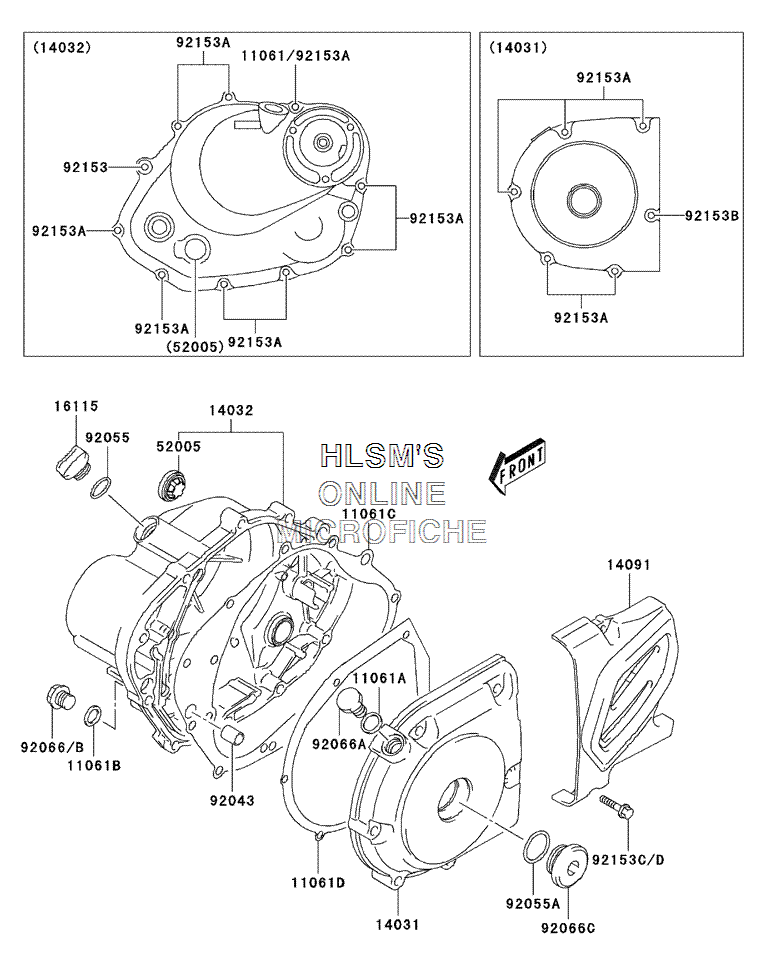

ENGINE COVER для Kawasaki KLX 125L - 2003 года выпуска`
-
№АртикулНазвание
-
1106111061-S001 GASKET, 5.8X13X1.2GASKET, 5.8X13X1.2
-
11061A11061-S005 GASKET, 12X16X2GASKET, 12X16X2
-
11061B11061-S006 GASKET, 13.8X18.8X0.4GASKET, 13.8X18.8X0.4
-
11061C11061-S036 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
11061D11061-S037 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1403114031-S004 COVER, GENERATORCOVER, GENERATOR
-
1403214032-S005 COVER, CLUTCHCOVER, CLUTCH
-
1409114091-S059 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
1611516115-S002 CAP, OIL FILLERCAP, OIL FILLER
-
5200552005-S004 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
9204392043-S003 PINPIN
-
9205592055-S006 O-RING, D=3.1O-RING, D=3.1
-
92055A92055-S035 O-RING, D=3.1O-RING, D=3.1
-
92066A92066-S015 PLUGPLUG
-
92066B92066-S017 PLUGPLUG
-
92066C92066-S018 PLUG, 20X10PLUG, 20X10
-
9215392153-S005 BOLTBOLT
-
92153A92153-S062 BOLTBOLT
-
92153B92153-S128 BOLTBOLT
-
92153D92153-S240 BOLTBOLT
