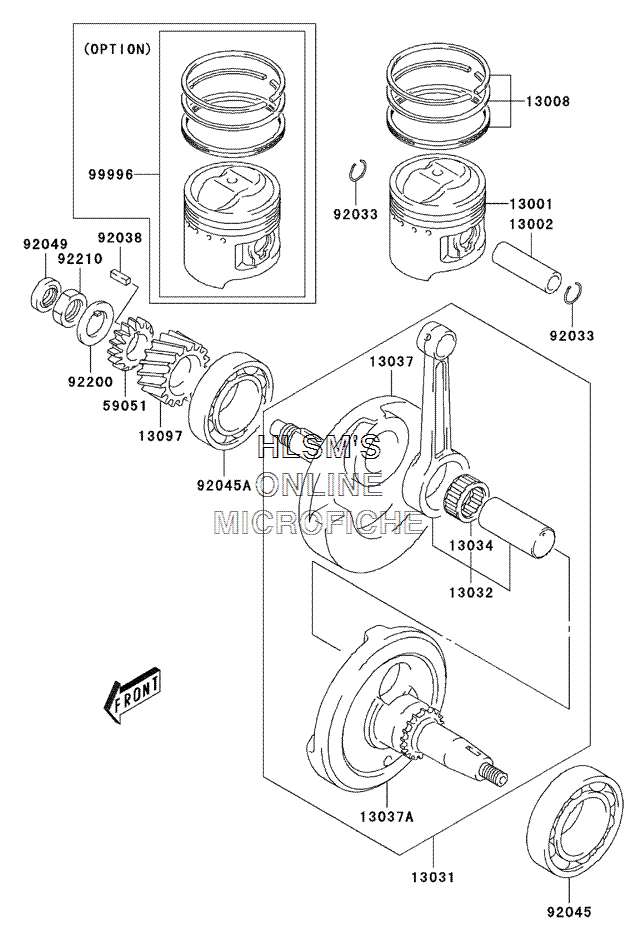

CRANKSHAFT - PISTON(S) для Kawasaki KLX 125L - 2003 года выпуска`
-
№АртикулНазвание
-
1300113001-S003 PISTON, ENGINEPISTON, ENGINE
-
1300213002-S003 PIN, PISTONPIN, PISTON
-
1300813008-S003 RING, SET, PISTONRING, SET, PISTON
-
1303113031-S003 CRANKSHAFT, COMPCRANKSHAFT, COMP
-
1303213032-S003 ROD, CONNECTINGROD, CONNECTING
-
1303413034-S003 BEARING, BIG END, 28X36X15.8BEARING, BIG END, 28X36X15.8
-
1303713037-S005 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
13037A13037-S006 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
1309713097-S003 GEAR, PRIMARY SPURGEAR, PRIMARY SPUR
-
5905159051-S001 GEAR, SPUR, OIL PUMP DRIVEGEAR, SPUR, OIL PUMP DRIVE
-
9203392033-S022 RING, SNAPRING, SNAP
-
9203892038-S003 KEY, PRIMARY DRIVEKEY, PRIMARY DRIVE
-
9204592045-S010 BEARING, BALL, 35X72X17BEARING, BALL, 35X72X17
-
92045A92045-S026 BEARING, BALL, 28X68X18BEARING, BALL, 28X68X18
-
9204992049-S001 SEAL, OIL, 12X21X7SEAL, OIL, 12X21X7
-
9220092200-S058 WASHERWASHER
-
9221092210-S048 NUTNUT
-
9999699996-S007 KIT, PISTON O/S 0.50 (OPT)KIT, PISTON O/S 0.50 (OPT)
