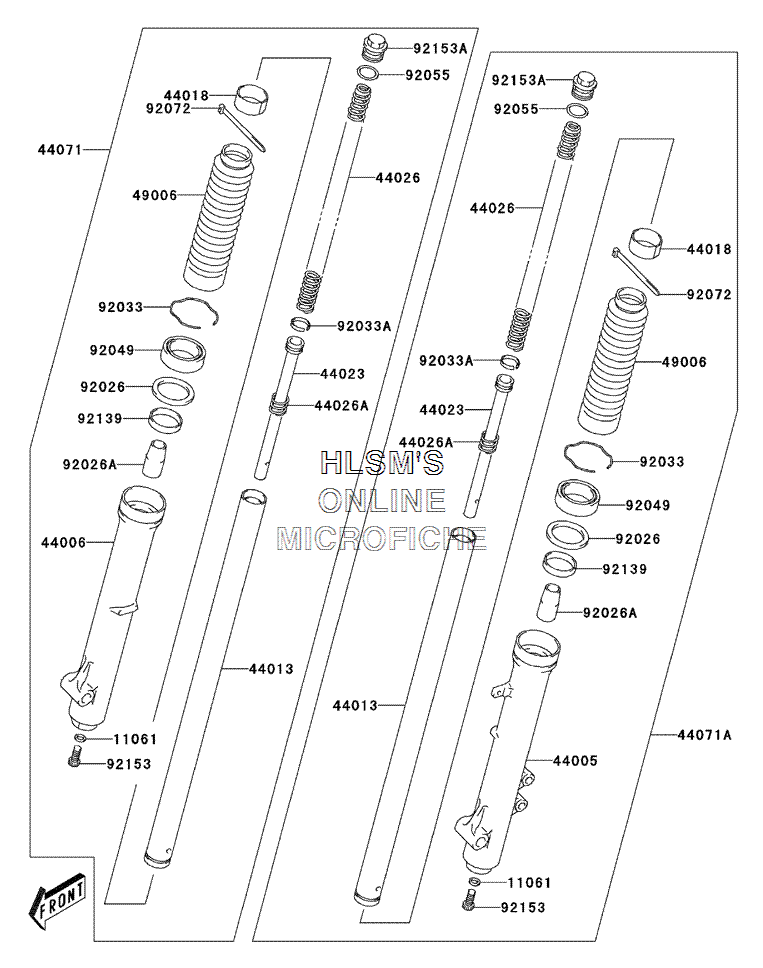

FRONT FORK для Kawasaki KLX 125L - 2003 года выпуска
-
№АртикулНазвание
-
1106111061-S019 GASKETGASKET
-
4400544005-S005 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-S005 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-S003 PIPE, FORK INNERPIPE, FORK INNER
-
4401844018-S002 PISTON, FORKPISTON, FORK
-
4402344023-S002 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-S005 SPRING, FRONT FORKSPRING, FRONT FORK
-
44026A44026-S006 SPRING, FRONT FORKSPRING, FRONT FORK
-
4407144071-S003 DAMPER, ASSY, FRONT FORK (RIGHT)DAMPER, ASSY, FRONT FORK (RIGHT)
-
44071A44071-S004 DAMPER, ASSY, FRONT FORK (LEFT)DAMPER, ASSY, FRONT FORK (LEFT)
-
4900649006-S011 BOOTBOOT
-
9202692026-S079 SPACERSPACER
-
92026A92026-S080 SPACERSPACER
-
9203392033-S035 RING, SNAPRING, SNAP
-
92033A92033-S036 RING, SNAPRING, SNAP
-
9204992049-S047 SEAL, OILSEAL, OIL
-
9205592055-S051 O-RINGO-RING
-
9207292072-S005 BANDBAND
-
9213992139-S021 BUSHINGBUSHING
-
9215392153-S241 BOLTBOLT
-
92153A92153-S242 BOLTBOLT
