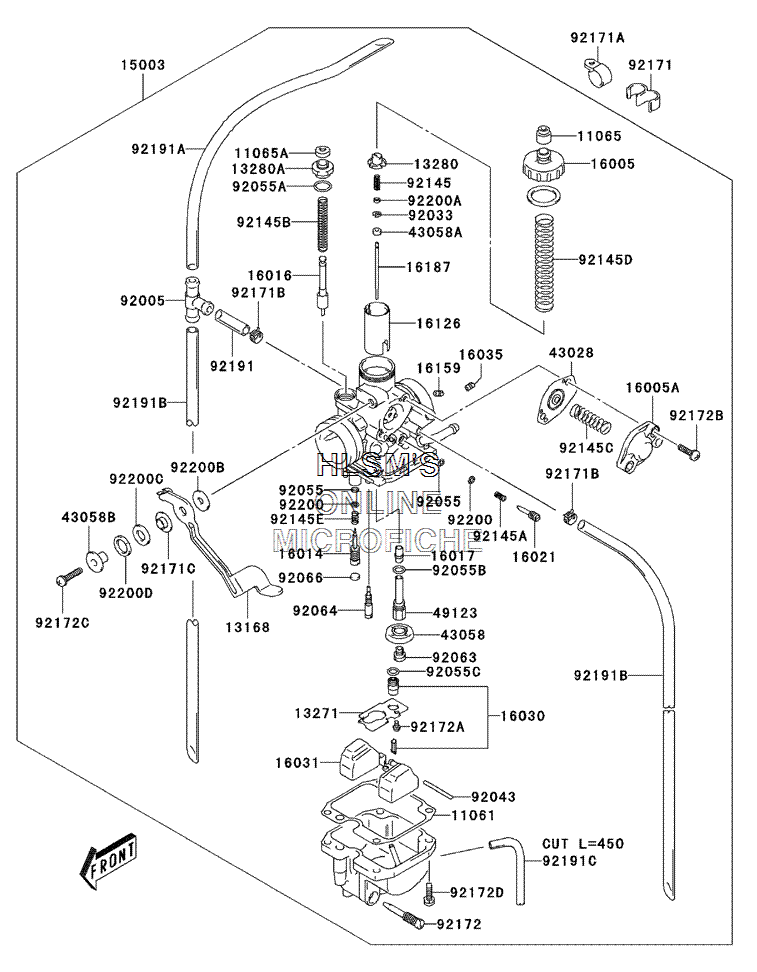

CARBURETOR для Kawasaki KLX 125L - 2003 года выпуска
-
№АртикулНазвание
-
1106111061-S052 GASKETGASKET
-
1106511065-S020 CAPCAP
-
11065A11065-S031 CAPCAP
-
1316813168-S001 LEVERLEVER
-
1327113271-S036 PLATEPLATE
-
1328013280-S015 HOLDERHOLDER
-
13280A13280-S021 HOLDERHOLDER
-
1500315003-S003 CARBURETOR, ASSYCARBURETOR, ASSY
-
1600516005-S003 TOP, CHAMBERTOP, CHAMBER
-
16005A16005-S004 TOP, CHAMBERTOP, CHAMBER
-
1601416014-S003 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-S006 PLUNGERPLUNGER
-
1601716017-S002 JET, NEEDLEJET, NEEDLE
-
1602116021-S002 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603016030-S003 VALVE, FLOATVALVE, FLOAT
-
1603116031-S003 FLOATFLOAT
-
1603516035-S002 JET, AIR, #85JET, AIR, #85
-
1612616126-S005 VALVE, PISTONVALVE, PISTON
-
1615916159-S001 JET, POWER, POWER, 145JET, POWER, POWER, 145
-
1618716187-S003 NEEDLE, JETNEEDLE, JET
-
4302843028-S008 DIAPHRAGMDIAPHRAGM
-
4305843058-S002 RINGRING
-
43058A43058-S005 RINGRING
-
43058B43058-S006 RINGRING
-
4912349123-S003 HOLDER, MAIN JETHOLDER, MAIN JET
-
9200592005-S004 FITTINGFITTING
-
9203392033-S033 RING, SNAPRING, SNAP
-
9204392043-S034 PINPIN
-
9205592055-S013 O-RINGO-RING
-
92055A92055-S048 O-RINGO-RING
-
92055B92055-S049 O-RINGO-RING
-
92055C92055-S050 O-RINGO-RING
-
9206392063-S005 JET, MAINJET, MAIN
-
9206492064-S003 JET, PILOT, #17.5JET, PILOT, #17.5
-
9206692066-S027 PLUGPLUG
-
9214592145-S013 SPRINGSPRING
-
92145A92145-S054 SPRINGSPRING
-
92145B92145-S055 SPRINGSPRING
-
92145C92145-S056 SPRINGSPRING
-
92145D92145-S057 SPRINGSPRING
-
92145E92145-S088 SPRINGSPRING
-
9217192171-S052 CLAMP, AIR VENT HOSECLAMP, AIR VENT HOSE
-
92171A92171-S060 CLAMPCLAMP
-
92171B92171-S061 CLAMPCLAMP
-
92171C92171-S083 CLAMPCLAMP
-
9217292172-S113 SCREWSCREW
-
92172A92172-S114 SCREWSCREW
-
92172B92172-S115 SCREWSCREW
-
92172C92172-S116 SCREWSCREW
-
92172D92172-S139 SCREWSCREW
-
9219192191-S035 TUBE, 5X8X25TUBE, 5X8X25
-
92191A92191-S036 TUBE, 5X8X375TUBE, 5X8X375
-
92191B92191-S037 TUBE, 5X8X475TUBE, 5X8X475
-
92191C92191-S053 TUBETUBE
-
9220092200-S019 WASHERWASHER
-
92200A92200-S082 WASHERWASHER
-
92200B92200-S122 WASHERWASHER
-
92200C92200-S123 WASHERWASHER
-
92200D92200-S124 WASHERWASHER
