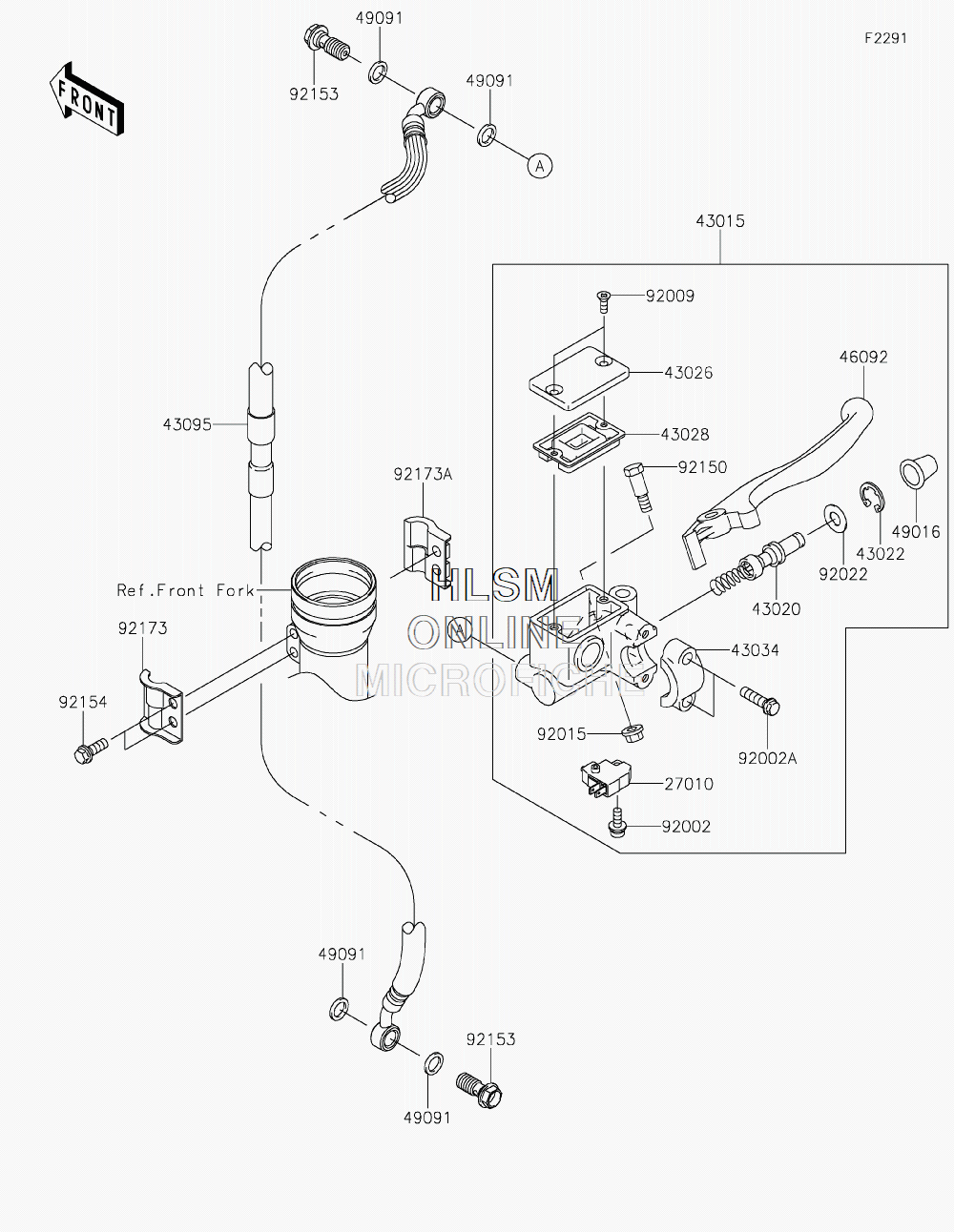

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
2701027010-0738 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-0586 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-0019 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1074 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4309543095-1433 HOSE-BRAKE, FRONT, 1296MMHOSE-BRAKE, FRONT, 1296MM
-
4609246092-0044 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1814 WASHERWASHER
-
9215092150-1451 BOLT, LEVER SETBOLT, LEVER SET
-
9215392153-0029 BOLT, OIL, L=23BOLT, OIL, L=23
-
9215492154-0460 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9217392173-0827 CLAMP, BRAKE HOSE, OUTSIDECLAMP, BRAKE HOSE, OUTSIDE
-
92173A92173-1785 CLAMP, BRAKE HOSE, INSIDECLAMP, BRAKE HOSE, INSIDE
