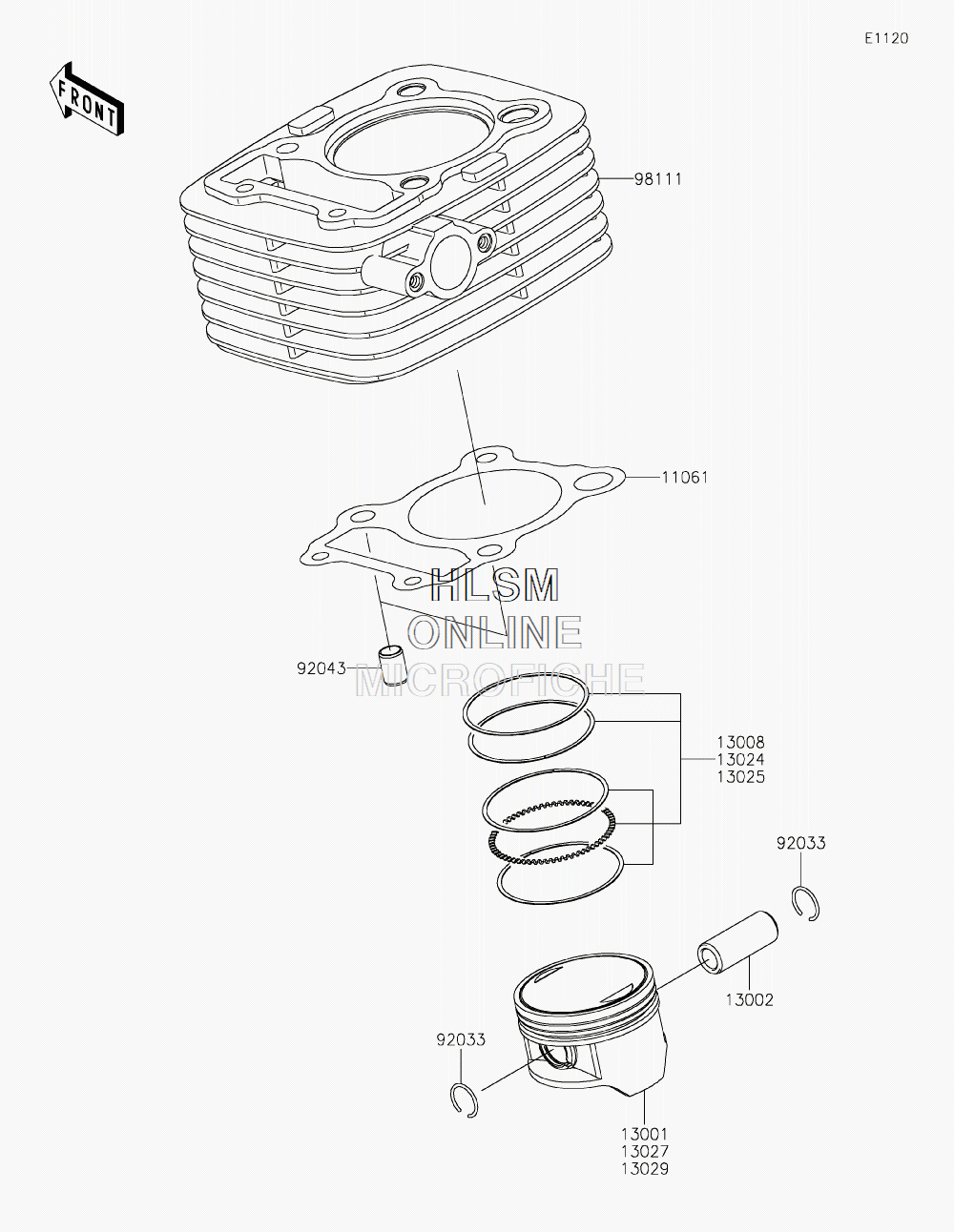

CYLINDER/PISTON(S) для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0863 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0769 PISTON-ENGINE, STDPISTON-ENGINE, STD
-
1300213002-1126 PIN-PISTONPIN-PISTON
-
1300813008-0038 RING-SET-PISTONRING-SET-PISTON
-
1302413024-0009 RING-SET-PISTON LL, O/S 1.00 (OPTION)RING-SET-PISTON LL, O/S 1.00 (OPTION)
-
1302513025-0011 RING-SET-PISTON L, O/S 0.50 (OPTION)RING-SET-PISTON L, O/S 0.50 (OPTION)
-
1302713027-0021 PISTON-ENGINE LL, O/S, 1.00 (OPTION)PISTON-ENGINE LL, O/S, 1.00 (OPTION)
-
1302913029-0039 PISTON-ENGINE L, O/S, 0.50 (OPTION)PISTON-ENGINE L, O/S, 0.50 (OPTION)
-
9203392033-1287 RING-SNAPRING-SNAP
-
9204392043-0100 PIN, 8.2X10X14PIN, 8.2X10X14
-
9811198111-0040 CYLINDER-COMP-ENGINECYLINDER-COMP-ENGINE
