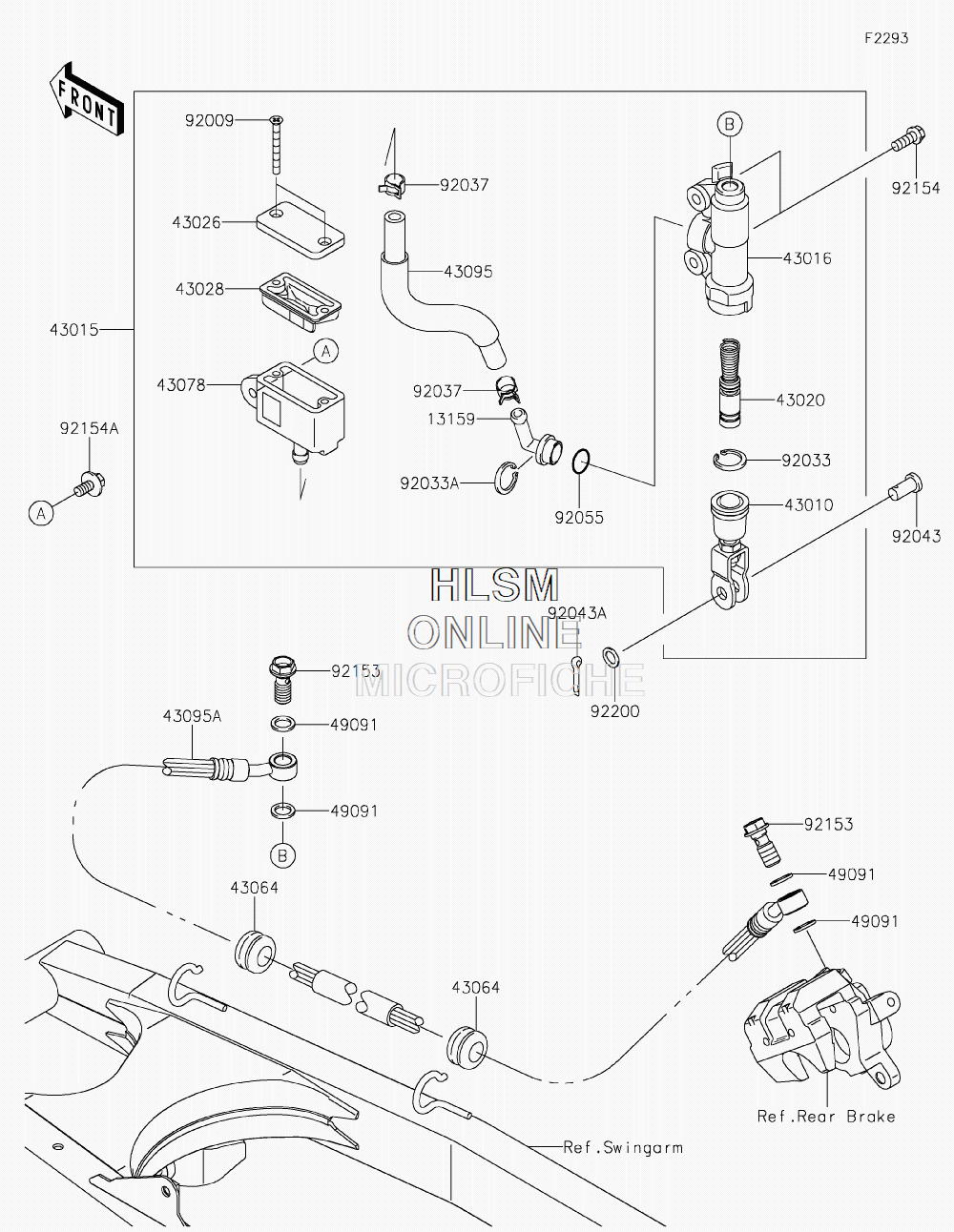

BRAKE - MASTER CYLINDER - REAR для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1315913159-1056 CONNECTORCONNECTOR
-
4301043010-1068 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0587 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4301643016-1149 CYLINDER-MASTERCYLINDER-MASTER
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1075 CAP-BRAKECAP-BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4307843078-1189 RESERVOIRRESERVOIR
-
4309543095-0550 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0803 HOSE-BRAKE, 589MMHOSE-BRAKE, 589MM
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200992009-1596 SCREW, 4X40SCREW, 4X40
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0004 PINPIN
-
92043A92043-0766 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
9205592055-0766 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9215392153-0029 BOLT, OIL, L=23BOLT, OIL, L=23
-
9215492154-0460 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-1231 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9220092200-1980 WASHER, 8.5X13X1WASHER, 8.5X13X1
