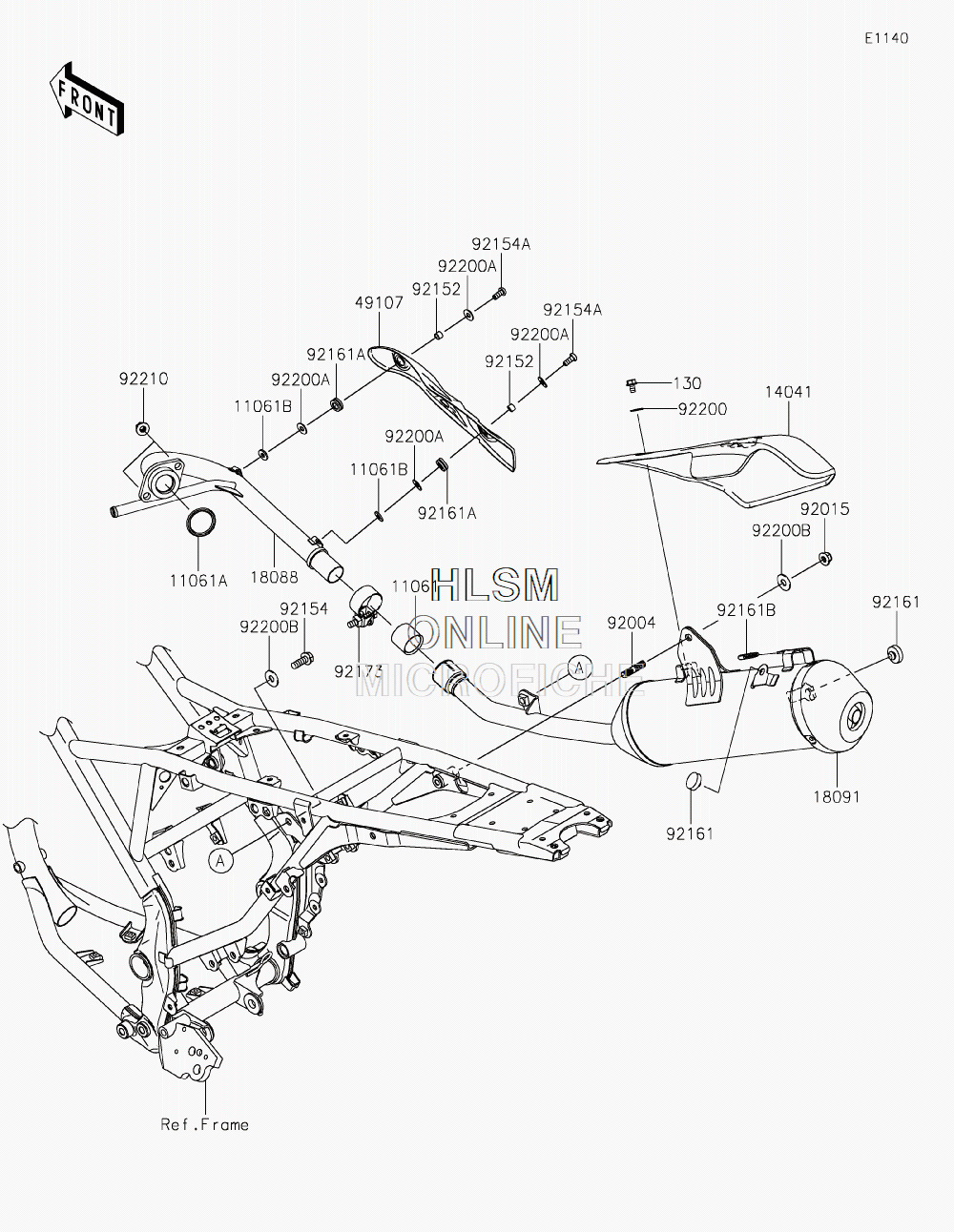

MUFFLER(S) для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0866 GASKET, MUFFLER JOINTGASKET, MUFFLER JOINT
-
11061A11061-0871 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
11061B11061-1148 GASKET, 5.8X12X1.5GASKET, 5.8X12X1.5
-
130130BA0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
1404114041-0585 COVER-COMPCOVER-COMP
-
1808818088-1329 PIPE-EXHAUSTPIPE-EXHAUST
-
1809118091-0950 BODY-COMP-MUFFLERBODY-COMP-MUFFLER
-
4910749107-0780 COVER-EXHAUST PIPECOVER-EXHAUST PIPE
-
9200492004-0040 STUD, 8X22STUD, 8X22
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9215292152-1962 COLLAR, 6.5X8.5X6COLLAR, 6.5X8.5X6
-
9215492154-1228 BOLT, 8X16BOLT, 8X16
-
92154A92154-2817 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9216192161-1284 DAMPER, MUFFLERDAMPER, MUFFLER
-
92161A92161-2110 DAMPERDAMPER
-
92161B92161-2125 DAMPERDAMPER
-
9217392173-1223 CLAMPCLAMP
-
9220092200-0796 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92200A92200-1974 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
92200B92200-1975 WASHER, 8.5X22X1.5WASHER, 8.5X22X1.5
-
9221092210-0773 NUT, 8MMNUT, 8MM
