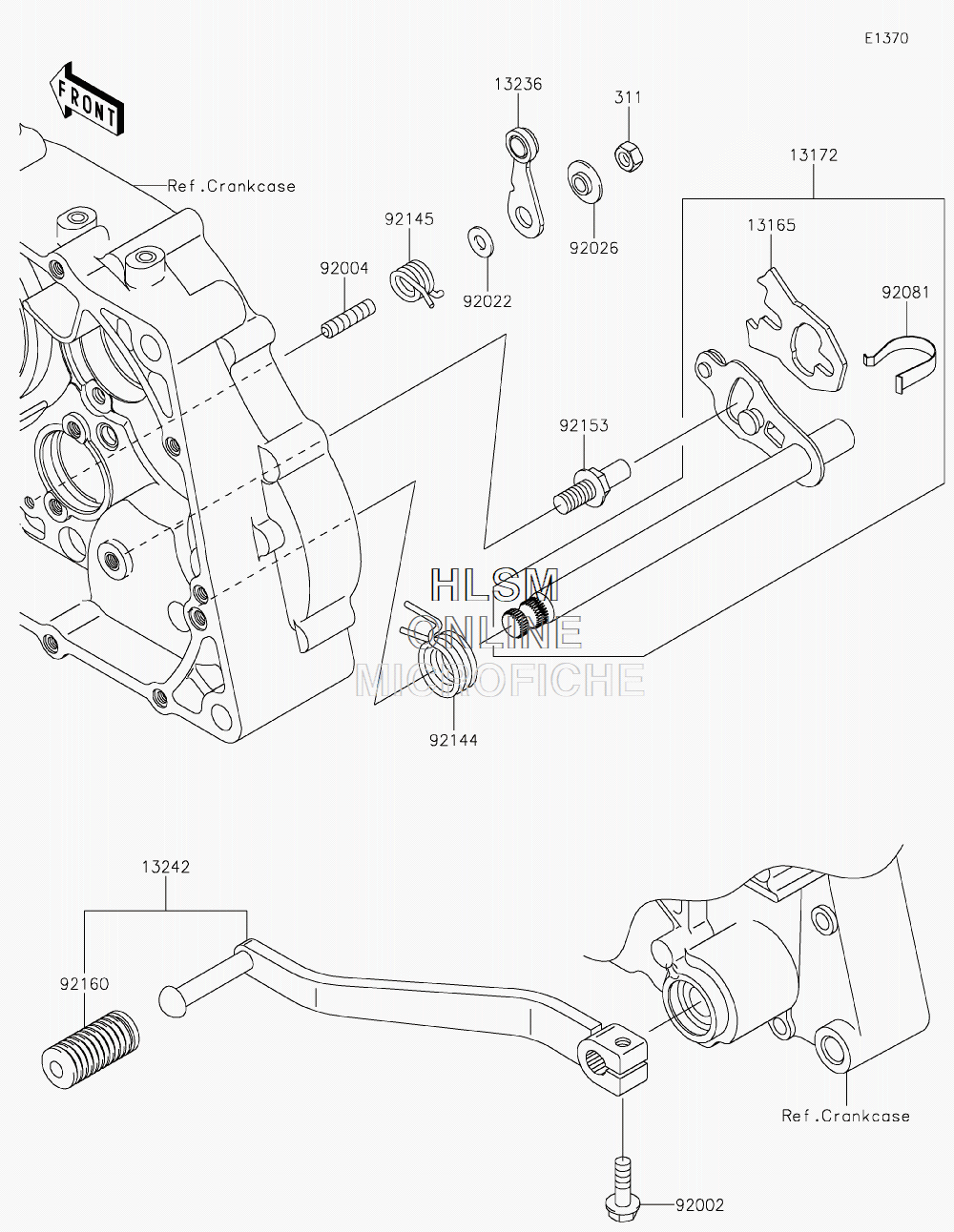

GEAR CHANGE MECHANISM для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1316513165-0003 PAWL, CHANGE SHAFTPAWL, CHANGE SHAFT
-
1317213172-0009 SHAFT-ASSY-CHANGESHAFT-ASSY-CHANGE
-
1323613236-0739 LEVER-COMP, DRUM POSITIONLEVER-COMP, DRUM POSITION
-
1324213242-0123 LEVER-ASSY-CHANGE, PEDALLEVER-ASSY-CHANGE, PEDAL
-
311311BA0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9200492004-0032 STUD, 6X12STUD, 6X12
-
9202292022-1827 WASHER, 6X12.8X1.2WASHER, 6X12.8X1.2
-
9202692026-0750 SPACERSPACER
-
9208192081-1829 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
9214492144-1345 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9214592145-0349 SPRINGSPRING
-
9215392153-1144 BOLT, 8X15.5BOLT, 8X15.5
-
9216092160-1036 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
