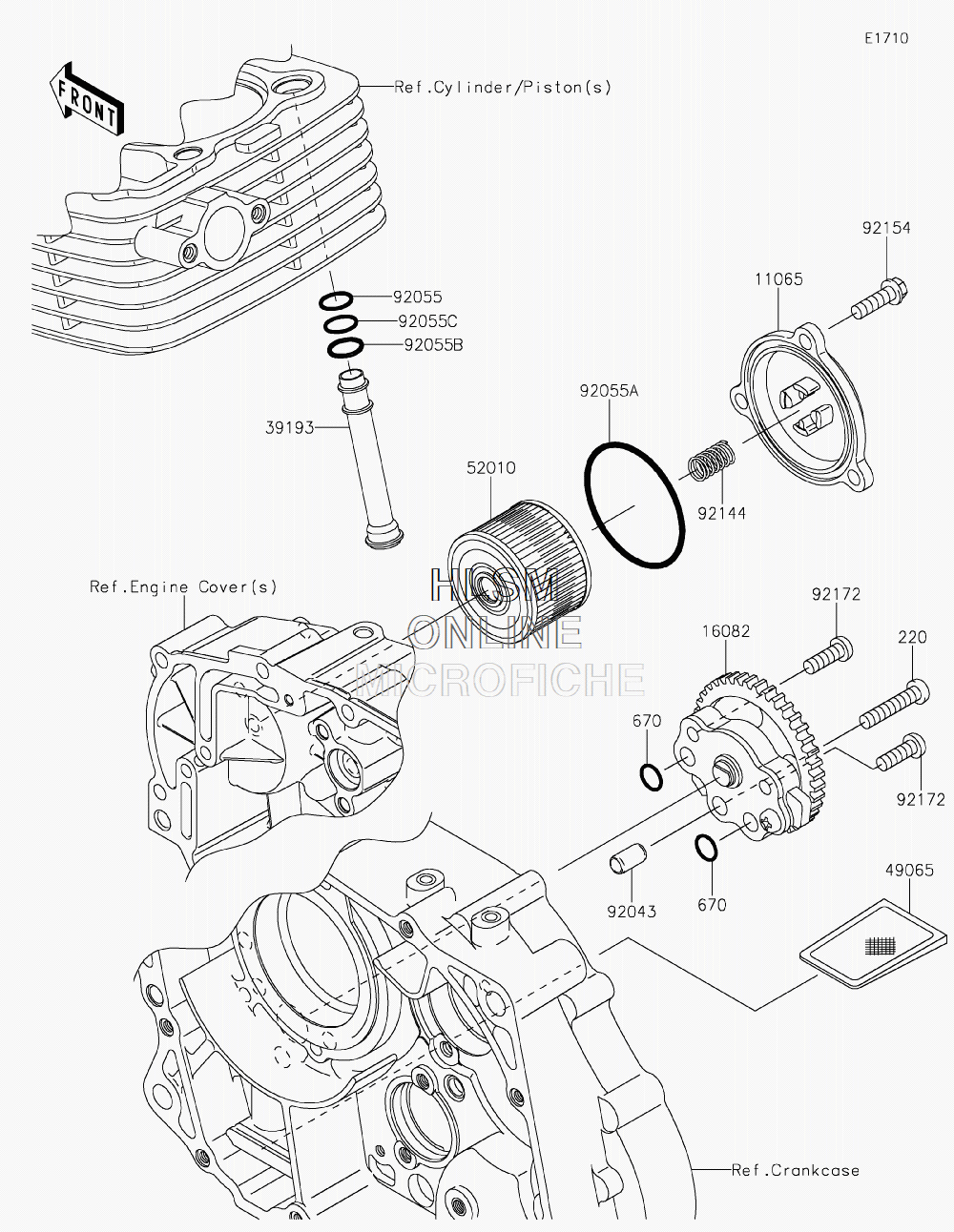

OIL PUMP для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1106511065-0818 CAPCAP
-
1608216082-0040 PUMP-ASSY-OILPUMP-ASSY-OIL
-
220220AA0630 SCREW-PAN-CROS, 6X30SCREW-PAN-CROS, 6X30
-
3919339193-0578 PIPE-OILPIPE-OIL
-
4906549065-0028 FILTER-OILFILTER-OIL
-
5201052010-0552 ELEMENT-OIL FILTERELEMENT-OIL FILTER
-
670670B1510 O RING, 9.8X1.9O RING, 9.8X1.9
-
9204392043-0099 PIN, 6.2X8X14PIN, 6.2X8X14
-
9205592055-0061 RING-O, 9.8X1.9RING-O, 9.8X1.9
-
92055A92055-0190 RING-O, 59.6X2.4RING-O, 59.6X2.4
-
92055B92055-0773 RING-O, 12.8X1.9RING-O, 12.8X1.9
-
92055C92055-1150 RING-O, 9.8X2.4RING-O, 9.8X2.4
-
9214492144-1892 SPRINGSPRING
-
9215492154-1219 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9217292172-0831 SCREW, 6X18SCREW, 6X18
