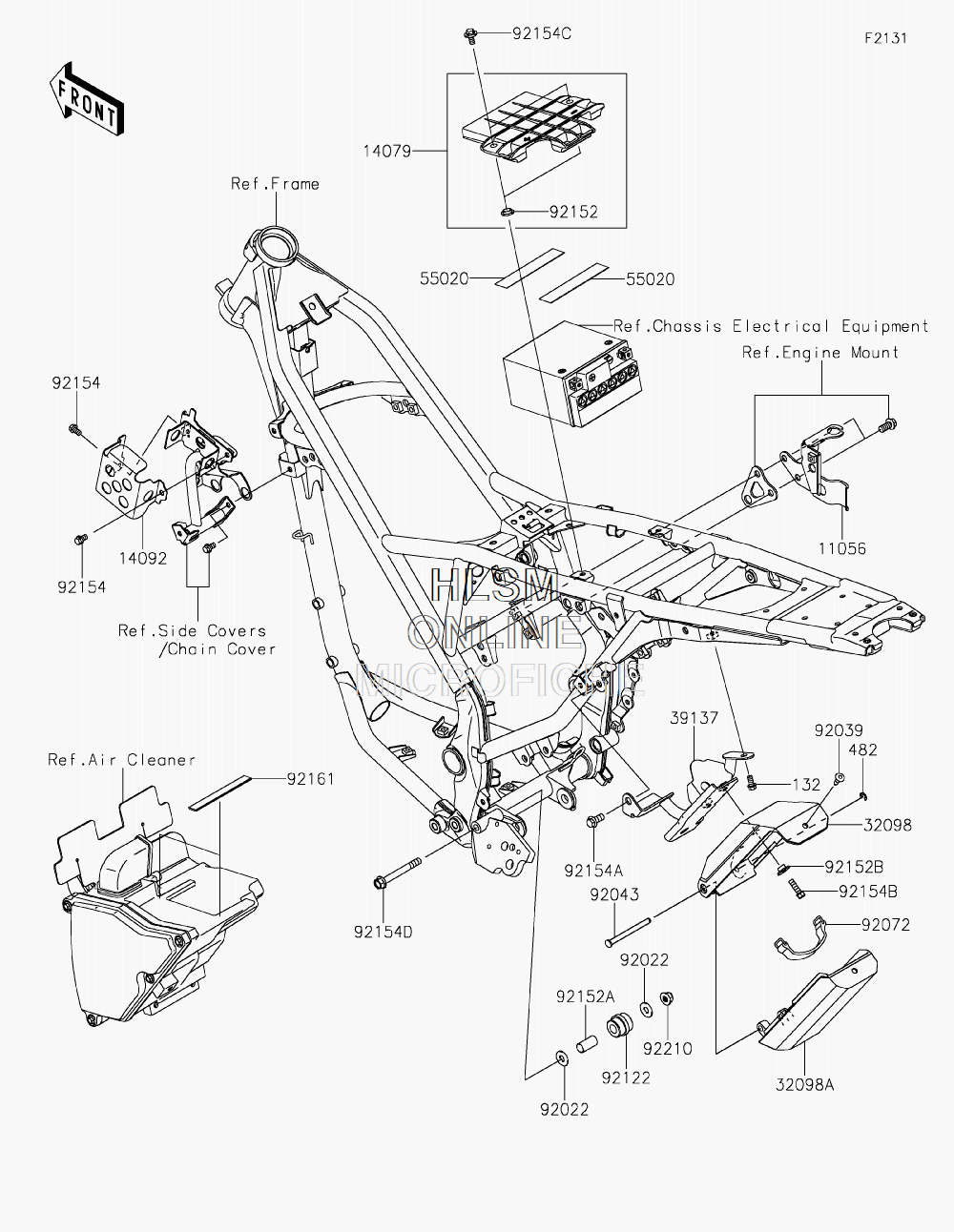

FRAME FITTINGS для Kawasaki KLX150L (LATIN AMERICA) (BR250EHF) - 2018 года выпуска
-
№АртикулНазвание
-
1105611056-7776 BRACKET, RESERVOIRBRACKET, RESERVOIR
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1407914079-0031 HOLDER-ASSY, BATTERYHOLDER-ASSY, BATTERY
-
1409214092-0035 COVER, IGNITERCOVER, IGNITER
-
3209832098-0022 CASE-TOOL, BASECASE-TOOL, BASE
-
32098A32098-0024 CASE-TOOL, COVERCASE-TOOL, COVER
-
3913739137-0668 STAY-COMP, TOOL CASESTAY-COMP, TOOL CASE
-
482482EA5000 CIRCLIP-TYPE-ECIRCLIP-TYPE-E
-
5502055020-0594 GUARDGUARD
-
9202292022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9203992039-0709 RIVETRIVET
-
9204392043-0834 PINPIN
-
9207292072-0738 BANDBAND
-
9212292122-0041 ROLLER, GUIDE CHAINROLLER, GUIDE CHAIN
-
9215292152-0909 COLLAR, 8.8X11.2X4COLLAR, 8.8X11.2X4
-
92152A92152-1881 COLLAR, 9.5X12.5X25COLLAR, 9.5X12.5X25
-
92152B92152-1978 COLLAR, 6.8X10X6.6COLLAR, 6.8X10X6.6
-
9215492154-0459 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
92154A92154-0462 BOLT, FLANGED, 8X16BOLT, FLANGED, 8X16
-
92154B92154-1157 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154C92154-1231 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92154D92154-1355 BOLT, FLANGED, 8X80BOLT, FLANGED, 8X80
-
9216192161-0838 DAMPERDAMPER
-
9221092210-0140 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
