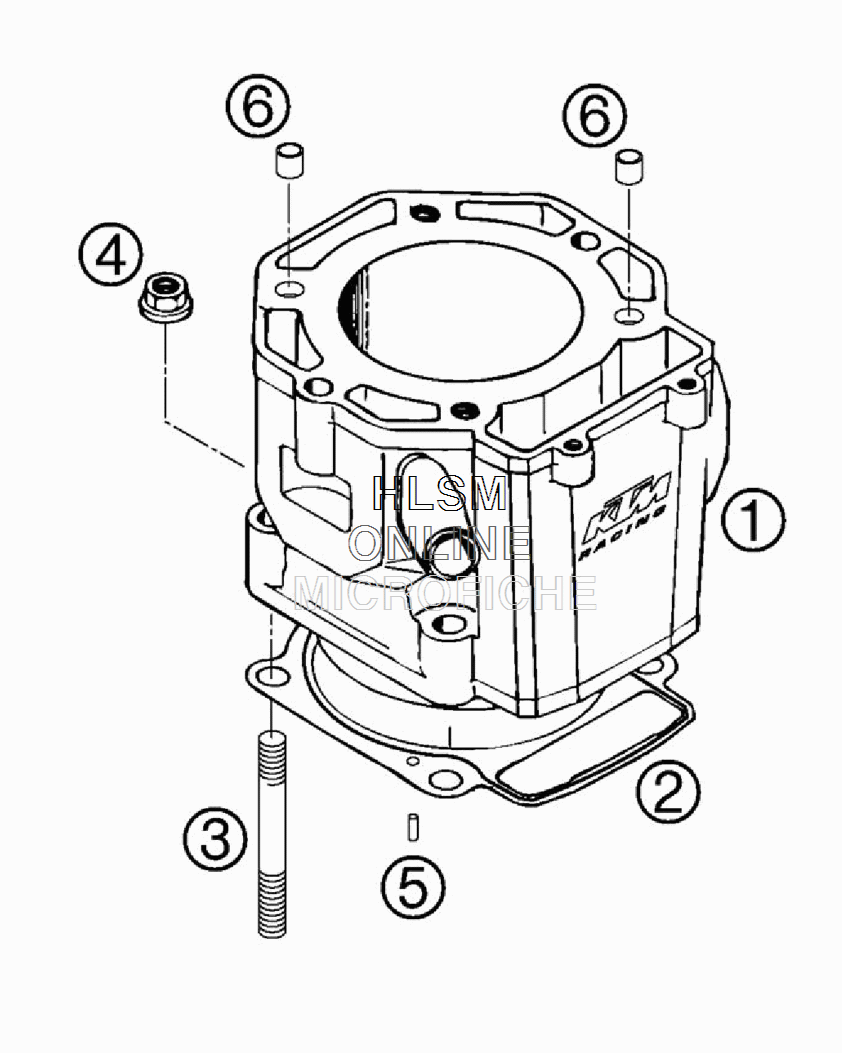

CYLINDER для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
15853000530030 CYLINDER 102MMCYLINDER 102MM
-
258530035000 CYL. BASE GASKET 0,33MMCYL. BASE GASKET 0,33MM
-
358530043000 STUD M10X75STUD M10X75
-
40331100003 COLLAR NUT DIN6923-M10 WS=15COLLAR NUT DIN6923-M10 WS=15
-
50402040980 NEEDLE ROL.DIN5402 NRB 4X9,8NEEDLE ROL.DIN5402 NRB 4X9,8
-
658530014000 DOWEL 10,2X12,5X10 3DOWEL 10,2X12,5X10 3
