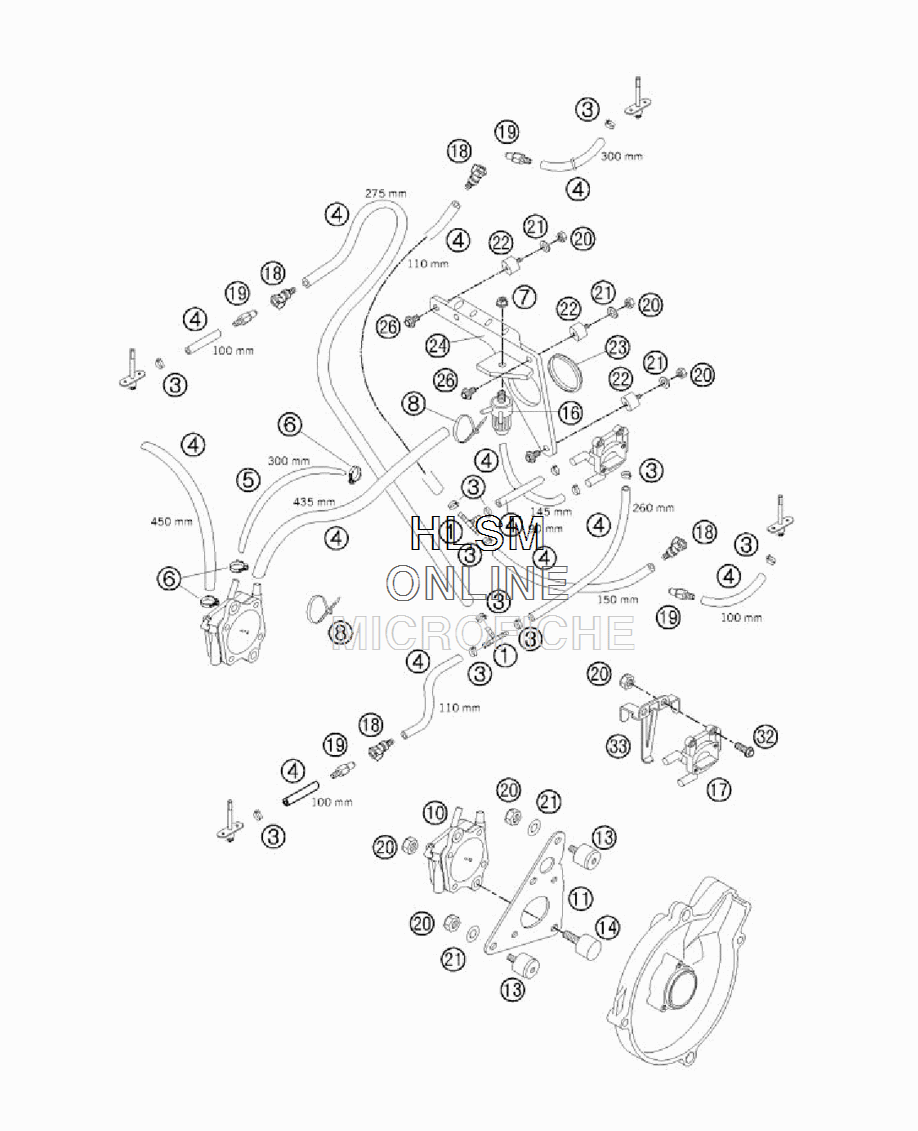

FUEL SYSTEM для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
158007015000 T-CONNECTOR FOR FUEL LINET-CONNECTOR FOR FUEL LINE
-
358031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
458507116100 HOSE OG.ECO 1TBSE 7X13MMHOSE OG.ECO 1TBSE 7X13MM
-
558507016100 FUEL HOSE DIN 73379 5,3X11,3FUEL HOSE DIN 73379 5,3X11,3
-
642013037000 CLAMP MINI 1CLAMP MINI 1
-
70934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
844011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
1058512087000 FUEL PUMP MIKUNI DF52-601FUEL PUMP MIKUNI DF52-601
-
1158512088000 HOLDING SHEET F. FUEL PUMPHOLDING SHEET F. FUEL PUMP
-
1343205062100 RUBBER GROMMET 20X15-M6X10 (1)RUBBER GROMMET 20X15-M6X10 (1)
-
1458538010000 RUBBER GROMMET 20X11/M6X18RUBBER GROMMET 20X11/M6X18
-
1658507009000 FUEL FILTERFUEL FILTER
-
1758507003100 COLLECTOR FUEL TAPCOLLECTOR FUEL TAP
-
1858507010500 CLUTCH F. FUEL HOSE CPCCLUTCH F. FUEL HOSE CPC
-
1958507010300 PLUG F. FUEL HOSE CPCPLUG F. FUEL HOSE CPC
-
200985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
210021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2243205062100 RUBBER GROMMET 20X15-M6X10 (1)RUBBER GROMMET 20X15-M6X10 (1)
-
2354635022000 SLEEVE FOR STEERING HEADSLEEVE FOR STEERING HEAD
-
2458507019000 SUPPORT FOR FUEL FILTERSUPPORT FOR FUEL FILTER
-
260014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
320015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
3358507003050 LOCKING PLATE F. COLL.FUEL TAPLOCKING PLATE F. COLL.FUEL TAP
