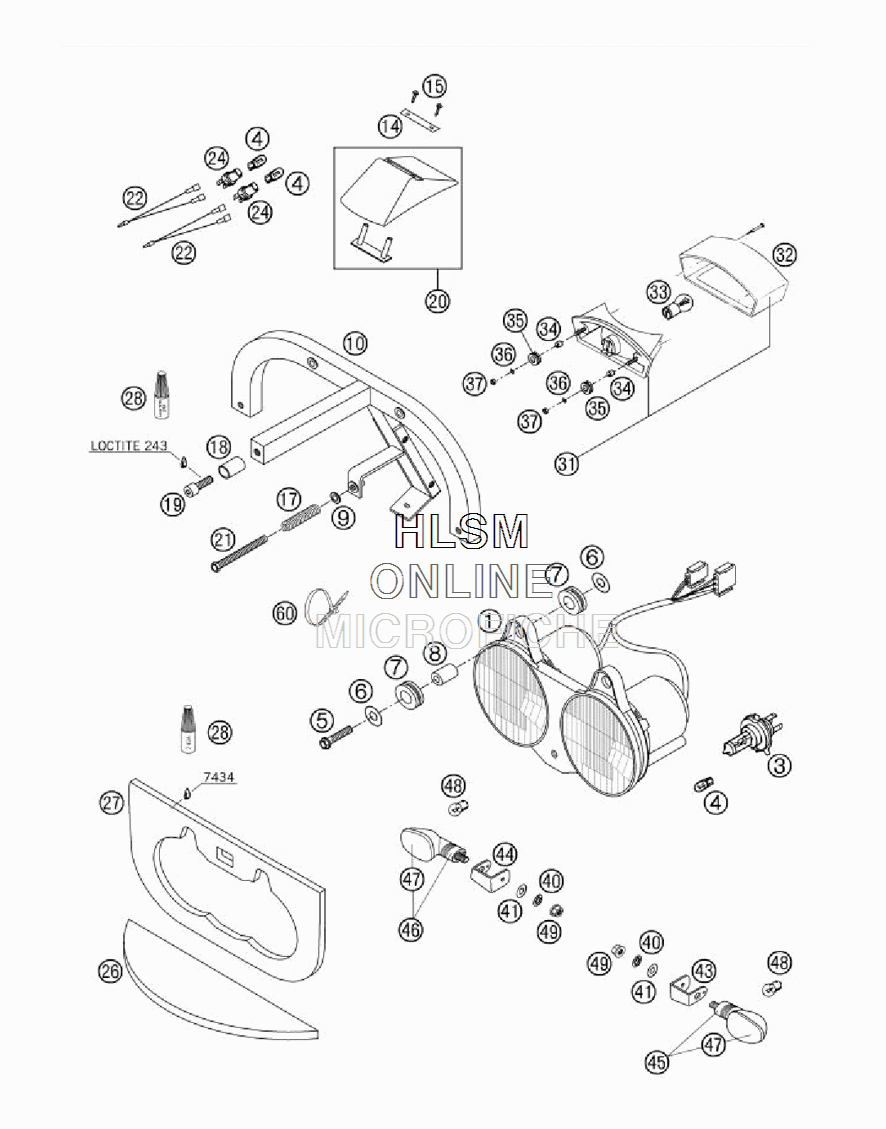

HEADLIGHTS W/ LIGHTS для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
158414001000 HEAD LIGHT TRIOM CPL.HEAD LIGHT TRIOM CPL.
-
354611038012 BULB HS1 12V 35/35W WHITEBULB HS1 12V 35/35W WHITE
-
449011435000 BULB 12V 5W (W2,1X9,5D)BULB 12V 5W (W2,1X9,5D)
-
50015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
60021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
741001052000 RUBBER SLEEVE D=12MMRUBBER SLEEVE D=12MM
-
856530060050 SPACER BUSHING 6X12X20 ALUSPACER BUSHING 6X12X20 ALU
-
90021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
1058512091200 CARRIER FOR TRIOM HEAD L.CARRIER FOR TRIOM HEAD L.
-
1458514046000 REAR LIGHT BRACKETREAR LIGHT BRACKET
-
150981350133 SHEET MET.SCR.DIN7981-3,5X13SHEET MET.SCR.DIN7981-3,5X13
-
1758311049007 TENSIONING SPRING 1 X 12 X 35TENSIONING SPRING 1 X 12 X 35
-
1858512006100 BUSHING SLEEVE COVER FRONTBUSHING SLEEVE COVER FRONT
-
190738060301 COU.SUNK SCR. AH ISO7380 M6X30COU.SUNK SCR. AH ISO7380 M6X30
-
2058511099244 EXTRA REAR LIGHT LENSEXTRA REAR LIGHT LENS
-
210933050603 HH SCREW DIN0933-M 5X60HH SCREW DIN0933-M 5X60
-
2258511099200 WIRING HARNESS REAR LIGHTWIRING HARNESS REAR LIGHT
-
2458514004000 SOCKET FOR BRAKE LIGHTSOCKET FOR BRAKE LIGHT
-
2658512091251 FLASHBACK PROTECTION HORIZ.FLASHBACK PROTECTION HORIZ.
-
2758512091250 FLASHBACK PROTECTION VERTI.FLASHBACK PROTECTION VERTI.
-
286899792 GLUE CYANACRYLAT 7434GLUE CYANACRYLAT 7434
-
286899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
3158311040000 REAR LIGHT CPL. CEV 358REAR LIGHT CPL. CEV 358
-
3258311041000 LENSLENS
-
3358414042000 BULB 12V 21/5W (BAY15S) REINFO.BULB 12V 21/5W (BAY15S) REINFO.
-
3458011039000 SPACER BUSHING 6,5 X 8 X 7SPACER BUSHING 6,5 X 8 X 7
-
3531008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
360021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
370985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
400797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
410125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
4358514033000 FLASHER SUPPORTFLASHER SUPPORT
-
4458514034000 FLASHER SUPPORTFLASHER SUPPORT
-
455841402500030 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
465841402600030 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
4758414028000 FLASHER LENS L/S & R/SFLASHER LENS L/S & R/S
-
4844111015100 BULB 12V 10W (BA15S)BULB 12V 10W (BA15S)
-
4958414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
6044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
6044011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
