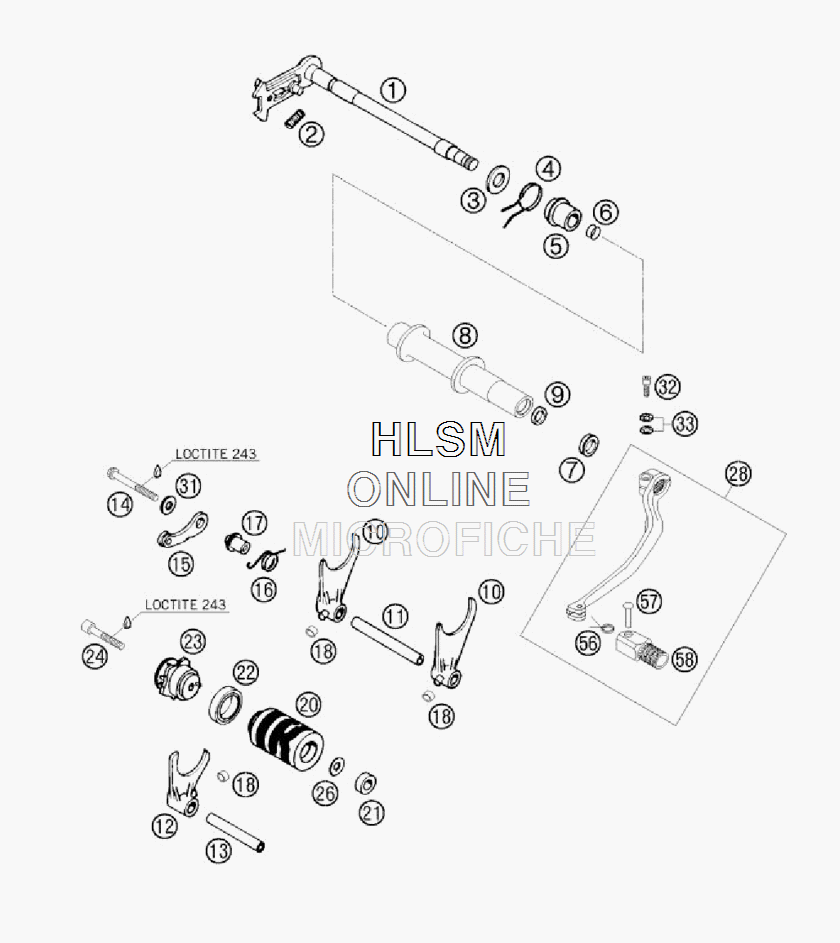

SHIFTING MECHANISM для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
158534005044 SHIFT SHAFT WELDEDSHIFT SHAFT WELDED
-
256534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
358034010000 STEEL WASHER 14 X 28 X 2STEEL WASHER 14 X 28 X 2
-
458034014000 RETURN SPRINGRETURN SPRING
-
558334020000 SPRING SLEEVESPRING SLEEVE
-
60770125020 O-RING 12,50X2,00 NBR 70O-RING 12,50X2,00 NBR 70
-
758033027000 V-SEAL RING V-14-AV-SEAL RING V-14-A
-
858534006000 SPACER SHAFT 2001SPACER SHAFT 2001
-
954632090000 SEAL RING DH/GR 12X16X3SEAL RING DH/GR 12X16X3
-
1058034002300 SHIFT FORK 1ST/4TH+2ND GEARSHIFT FORK 1ST/4TH+2ND GEAR
-
1158034004000 SHIFT RAIL 1ST/4TH + 2ND GEARSHIFT RAIL 1ST/4TH + 2ND GEAR
-
1258034001300 SHIFT FORK 3RD/5TH GEARSHIFT FORK 3RD/5TH GEAR
-
1358034003000 SHIFT RAIL 3RD/5TH GEARSHIFT RAIL 3RD/5TH GEAR
-
140015060653 HH COLLAR SCREW M 6X65 WS=8HH COLLAR SCREW M 6X65 WS=8
-
1558334024044 LOCKING LEVER CPL.LOCKING LEVER CPL.
-
1658034023500 SPRINGSPRING
-
1758334017000 SPRING SLEEVESPRING SLEEVE
-
1850334018100 SHIFTING ROLLER 6X8X5,2SHIFTING ROLLER 6X8X5,2
-
2058334012100 SHIFT ROLLER ALUSHIFT ROLLER ALU
-
210625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
220625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
2358434015044 SHIFT LOCATING DRUM CPL.SHIFT LOCATING DRUM CPL.
-
240912060404 AH SCREW DIN0912-M 6X40 A2AH SCREW DIN0912-M 6X40 A2
-
2651006097000 WASHER 6,2X22X1,ST30,W.GALV.WASHER 6,2X22X1,ST30,W.GALV.
-
2858534031144 SHIFT LEVER CPL.SHIFT LEVER CPL.
-
3150232050000 WASHER 6,2X18X2WASHER 6,2X18X2
-
320912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
3350233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
5654634032100 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
5754634031050 BOLT 6X25BOLT 6X25
-
5854634131000 STEP PLATESTEP PLATE
