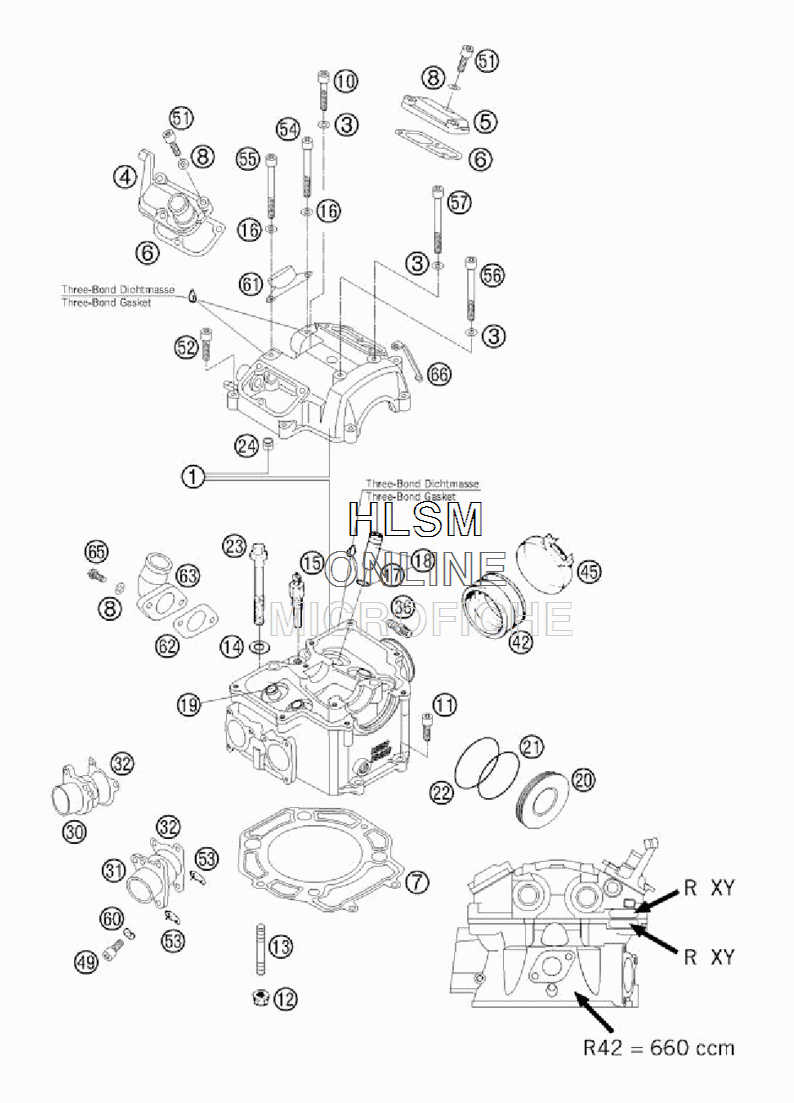

CYLINDER HEAD для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
15853602030023 CYLINDERHEAD CPL. GREYCYLINDERHEAD CPL. GREY
-
358036065100 CU-SEAL RING 6 X 10 X 2CU-SEAL RING 6 X 10 X 2
-
458036152600 VALVE COVER FRONTVALVE COVER FRONT
-
558036052000 VALVE COVER REARVALVE COVER REAR
-
658036053000 VALVE COVER GASKETVALVE COVER GASKET
-
758530036100 CYLINDER HEAD GASKET D=102CYLINDER HEAD GASKET D=102
-
80603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
100912060353 AH SCREW DIN0912-M 6X35AH SCREW DIN0912-M 6X35
-
110912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
1249030028000 COLLAR NUT M8COLLAR NUT M8
-
1354330043000 STUD DIN0835-M 8X40STUD DIN0835-M 8X40
-
140125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1542011252000 TEMPEMPERATURE SWITCH VDOTEMPEMPERATURE SWITCH VDO
-
160603070122 CU-SEAL RING DIN7603- 7X12X2CU-SEAL RING DIN7603- 7X12X2
-
170993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
1858036026644 VALVE GUIDE INTAKE CPL.VALVE GUIDE INTAKE CPL.
-
1958036126644 VALVE GUIDE EXHAUST CPL.VALVE GUIDE EXHAUST CPL.
-
2058536065000 PLUG COVER 2001PLUG COVER 2001
-
210770047015 O-RING 47,00X1,50 NBR 70O-RING 47,00X1,50 NBR 70
-
220770049025 O-RING 49,00X2,50 NBRO-RING 49,00X2,50 NBR
-
2358036099100 COLLAR SCREW M10X80 WS=13 10.9COLLAR SCREW M10X80 WS=13 10.9
-
2458530090000 DOWEL BUSHING 9,8X7,2X10 NOTCH, MARKINGDOWEL BUSHING 9,8X7,2X10 NOTCH, MARKING
-
3058536040000 EXHAUST FLANGE R/SEXHAUST FLANGE R/S
-
3158536140000 EXHAUST FLANGE L/SEXHAUST FLANGE L/S
-
3258036041000 EXHAUST FLANGE GASKETEXHAUST FLANGE GASKET
-
3658336020090 VACUUM CONNECTION M 6X1VACUUM CONNECTION M 6X1
-
4258536044000 INTAKE BOOTINTAKE BOOT
-
4559030061000 CLAMP D=56MM B=9MM M4X25CLAMP D=56MM B=9MM M4X25
-
490912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
510912060203 AH SCREW DIN0912-M 6X20AH SCREW DIN0912-M 6X20
-
520912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
5351005074000 RETAINING PLATERETAINING PLATE
-
540912070553 AH SCREW DIN0912-M 7X55 12.9AH SCREW DIN0912-M 7X55 12.9
-
550912070603 AH SCREW DIN0912-M 7X60 12.9AH SCREW DIN0912-M 7X60 12.9
-
560912060653 AH SCREW DIN0912-M 6X65AH SCREW DIN0912-M 6X65
-
570912060703 AH SCREW DIN0912-M 6X70AH SCREW DIN0912-M 6X70
-
600137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
6158539010000 STICK COIL HOLDERSTICK COIL HOLDER
-
6256535106000 GASKETGASKET
-
6356535006000 CONNECTING ANGLECONNECTING ANGLE
-
650015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
6658530005050 RETAINING PLATERETAINING PLATE
