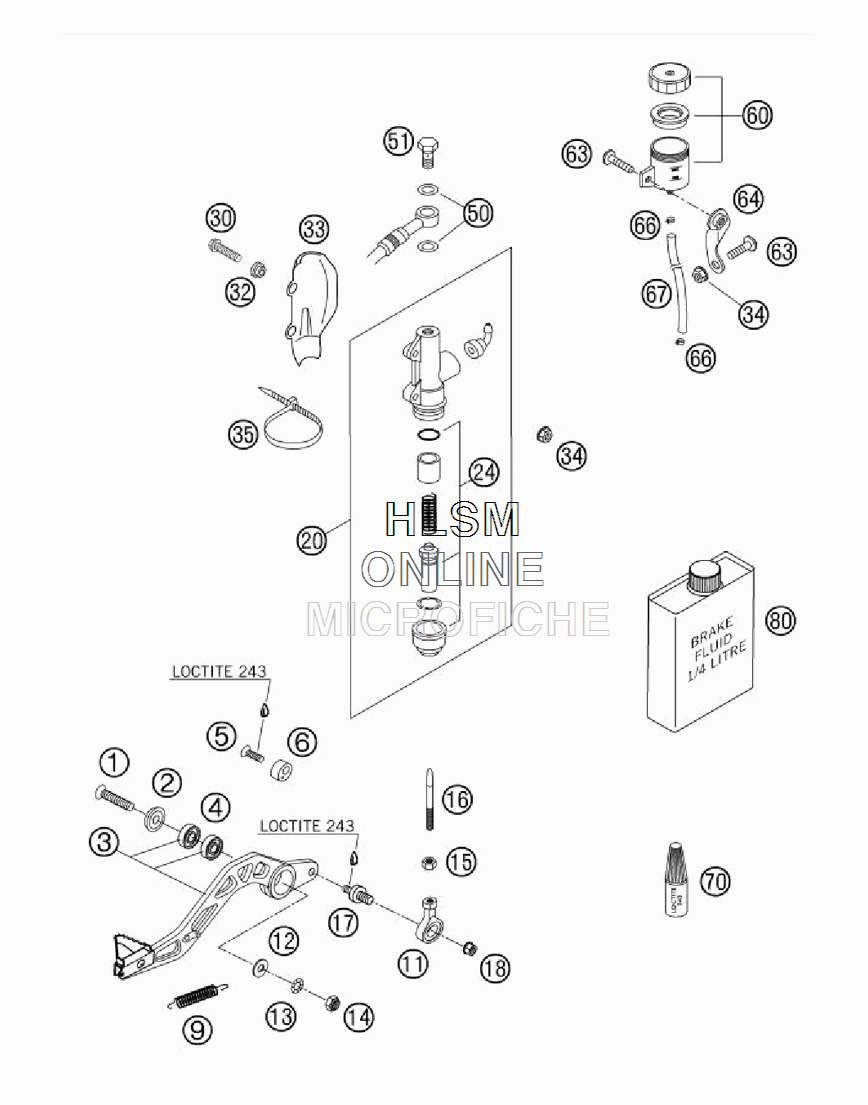

REAR BRAKE SYSTEM для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
10991080353 FLAT HEAD SCREW DIN7991-M 8X35FLAT HEAD SCREW DIN7991-M 8X35
-
258303061000 SPECIAL WASHER ALU 8 X 24 MMSPECIAL WASHER ALU 8 X 24 MM
-
358403070044 FOOT BRAKE LEVER KPL.FOOT BRAKE LEVER KPL.
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
50991060203 FLAT H.SCREW DIN7991-M6X20 8.8FLAT H.SCREW DIN7991-M6X20 8.8
-
658303063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
913003062000 RETURN SPRINGRETURN SPRING
-
1154603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.SWIVEL HEAD M6 FOOT BRAKE LEV.
-
120125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
13360030140 LOCK WASHER 8MMLOCK WASHER 8MM
-
140985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
150934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1658503068000 PUSH ROD STEEL 100MM M6PUSH ROD STEEL 100MM M6
-
1758503060050 BRAKE LEVER AXLEBRAKE LEVER AXLE
-
1854310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2054513101044 MAIN BRAKE CYLINDERMAIN BRAKE CYLINDER
-
2454513150000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
300015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
3250213161000 COLLAR BUSHINGCOLLAR BUSHING
-
3358513038000 BRAKE CYL. PROTECTORBRAKE CYL. PROTECTOR
-
3456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
3544011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
5042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
5150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
630014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
6459013068000 BRACKET BRAKE FLUID RESERVOIRBRACKET BRAKE FLUID RESERVOIR
-
6658031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
6758007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
706899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
