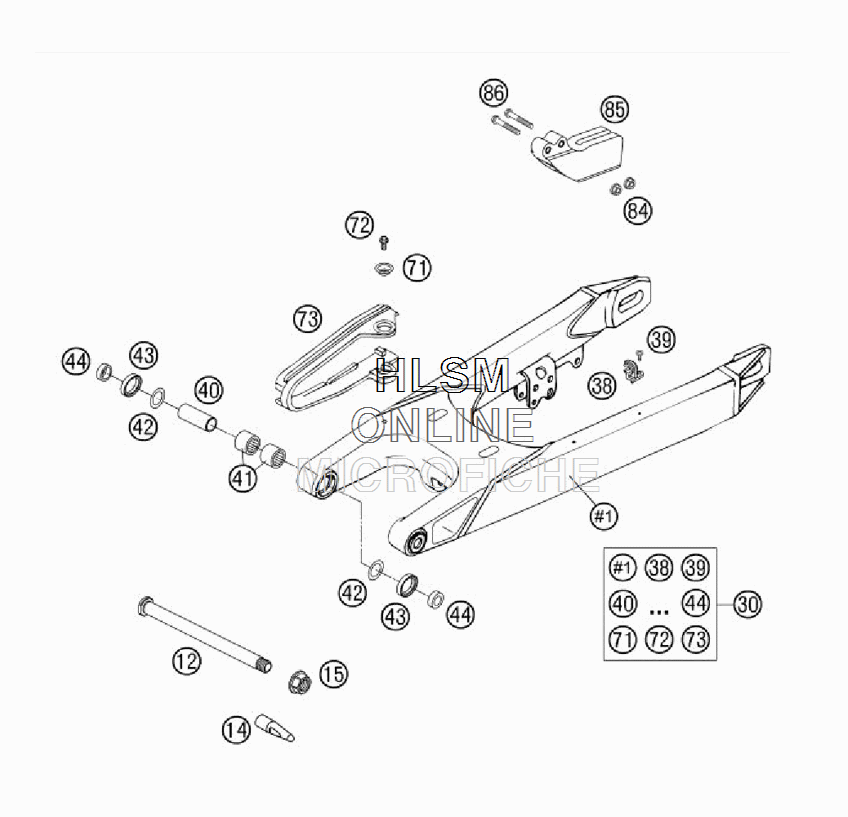

SWINGARM для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
1254603014100 SWINGARM BOLT KPL. L=253SWINGARM BOLT KPL. L=253
-
1458503014001 SPECIAL TOOL F. SWINGARM BOLTSPECIAL TOOL F. SWINGARM BOLT
-
1554603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
3058504030344 SWINGARMSWINGARM
-
3854611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
390010050103 SPECIAL SCREW M 5,0X10SPECIAL SCREW M 5,0X10
-
4050203081700 BUSHING SLEEVE 15X20X38,75BUSHING SLEEVE 15X20X38,75
-
4159004031000 NEEDLE BUSH HK2012VNEEDLE BUSH HK2012V
-
4254603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
430760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
4454603090000 BUCKET F.SHAFTSEALRING 15X25X9BUCKET F.SHAFTSEALRING 15X25X9
-
7172210079000 BUCKETBUCKET
-
720015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
7358307073000 CHAIN SLIDING GUARDCHAIN SLIDING GUARD
-
8456509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
8554607066100 CHAIN GUIDE REARCHAIN GUIDE REAR
-
860015060353 HH COLLAR SCREW M 6X35 WS=8HH COLLAR SCREW M 6X35 WS=8
