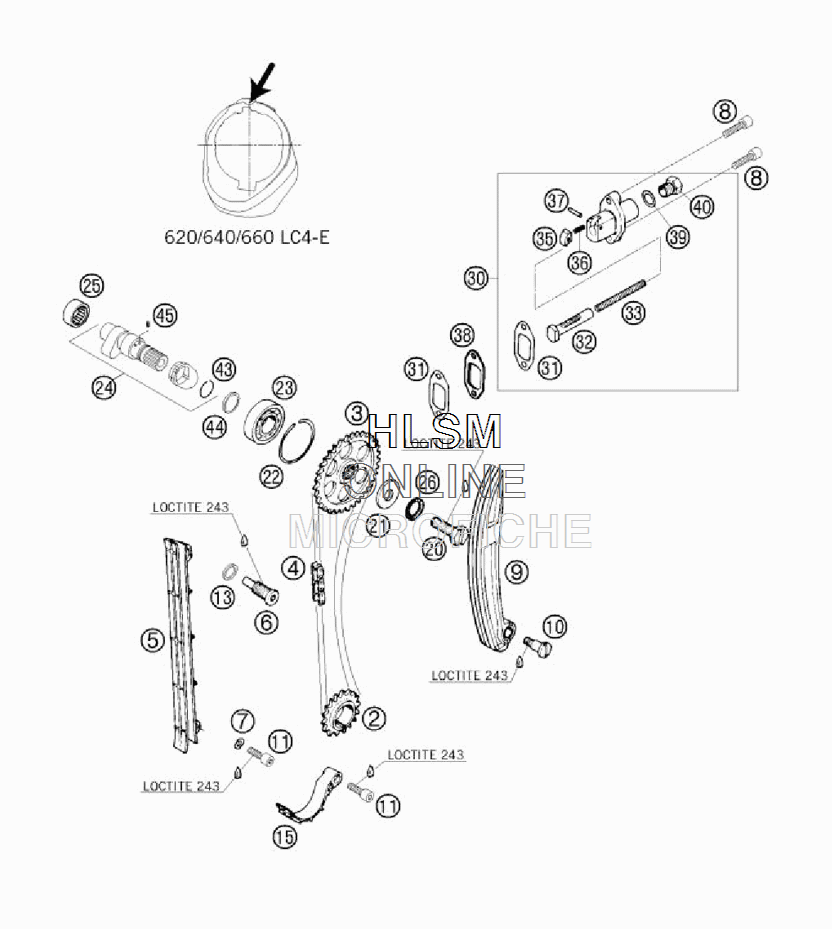

TIMING VALVE для Ktm 660 RALLYE - 2005 года выпуска
-
№АртикулНазвание
-
258036014000 TIMING GEAR 17-TTIMING GEAR 17-T
-
358336011001 CAMSHAFT GEAR 34-T "01"CAMSHAFT GEAR 34-T "01"
-
458036013000 TIMING CHAIN C107C / 100 LINKSTIMING CHAIN C107C / 100 LINKS
-
558036001000 TIMING CHAIN GUIDETIMING CHAIN GUIDE
-
658036009000 CHAIN GUIDE SCREWCHAIN GUIDE SCREW
-
70137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
80912060253 AH SCREW DIN0912-M 6X25AH SCREW DIN0912-M 6X25
-
958536002044 CHAIN TENSIONERCHAIN TENSIONER
-
100923080120 FLAT HEAD SCR. M 8X12FLAT HEAD SCR. M 8X12
-
110912060208 AH SCREW DIN0912-M 6X20 SSAH SCREW DIN0912-M 6X20 SS
-
1358038022100 CU-SEAL RING 12 X 16 X 2CU-SEAL RING 12 X 16 X 2
-
1558336018000 SECURING GUIDESECURING GUIDE
-
2058336112000 DRIVING SCREW M10X25DRIVING SCREW M10X25
-
2158036012000 STEEL WASHER 10 X 28 X 3STEEL WASHER 10 X 28 X 3
-
2258036096000 CIRCLIP SB 42CIRCLIP SB 42
-
230625060040 GROOVED BALL BEARING TMB004GROOVED BALL BEARING TMB004
-
2458536010044 CAMSHAFT RALLYE CPL.CAMSHAFT RALLYE CPL.
-
2558036097000 NEEDLE BEARING BK 2012NEEDLE BEARING BK 2012
-
2636003014200 LOCKING WASHER 10MMLOCKING WASHER 10MM
-
3058036003144 AUTOM.TENSIONER CPL.AUTOM.TENSIONER CPL.
-
3158036005100 TENSIONER GASKET 1,5 MMTENSIONER GASKET 1,5 MM
-
3258036004100 PRESSURE BOLTPRESSURE BOLT
-
3358036006100 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
3558036007100 RATCHETING PAWLRATCHETING PAWL
-
3658036007050 PRES.SPRING F.RATCHETING PAWLPRES.SPRING F.RATCHETING PAWL
-
370402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
3858536003050 FLANGEPL. F. AUTOM. TENSIONERFLANGEPL. F. AUTOM. TENSIONER
-
3958038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
4058036008100 PLUG M12X1,5PLUG M12X1,5
-
430417200120 CIRCLIP WS20CIRCLIP WS20
-
4458336015000 STEPPED RINGSTEPPED RING
-
4558336016052 SPRING FOR AUTO-DECOMPR.SPRING FOR AUTO-DECOMPR.
