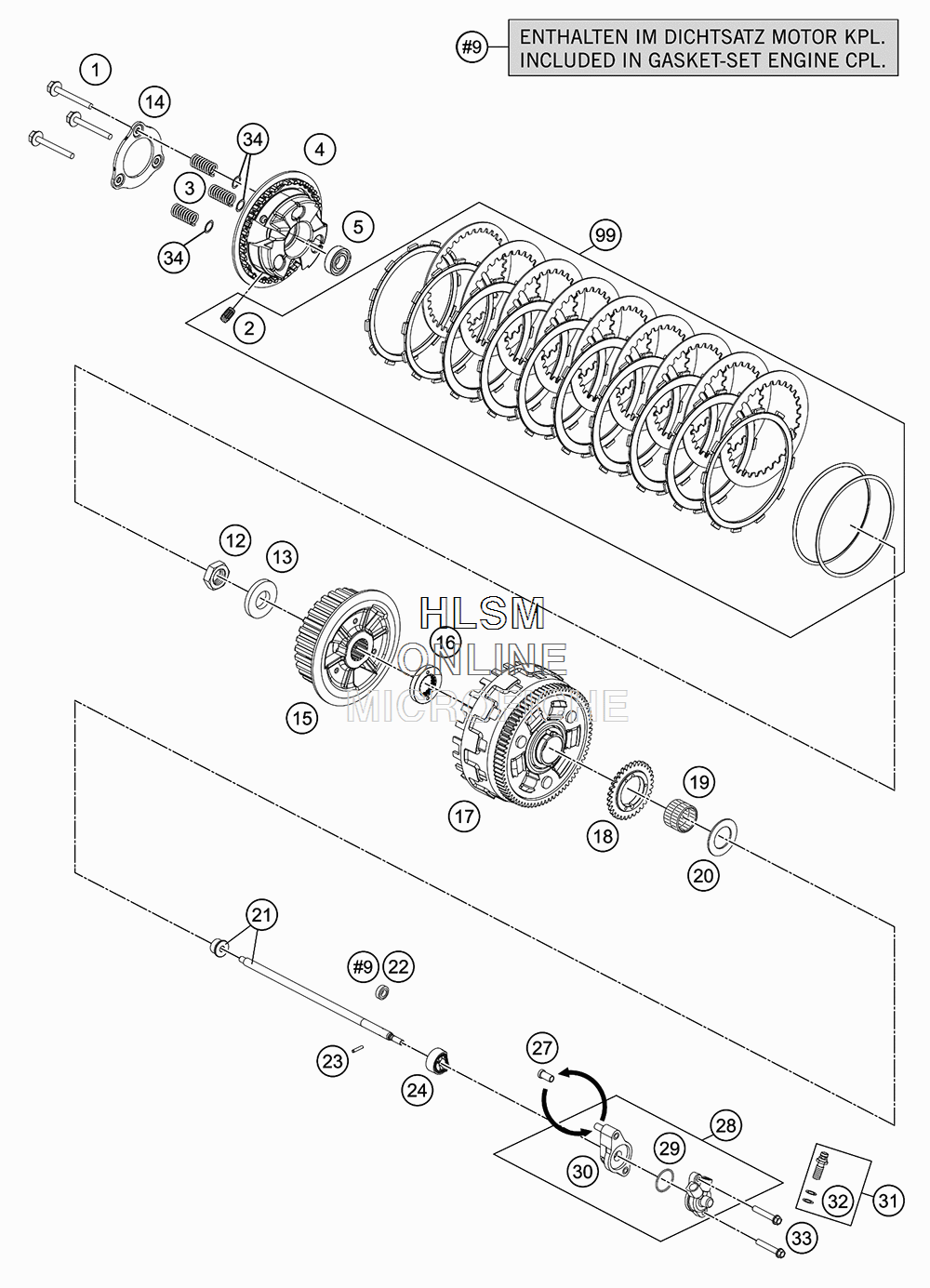

CLUTCH для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
161332044000 HH COLLAR SCREW M6X45 SW10HH COLLAR SCREW M6X45 SW10
-
261332007000 DAMPERDAMPER
-
369332005100 CLUTCH SPRING GREENCLUTCH SPRING GREEN
-
461332003000 PRESSURE CAPPRESSURE CAP
-
50625060032 BALL BEARING 6003 JR2 C4BALL BEARING 6003 JR2 C4
-
120936220155 HEXAGON NUT DIN0936-M22X1,5 R.HEXAGON NUT DIN0936-M22X1,5 R.
-
130126220373 WASHER DIN0126 22X37X3 MMWASHER DIN0126 22X37X3 MM
-
1461332006000 ARRESTOR PRESSURE CAPARRESTOR PRESSURE CAP
-
1561332002000 INNER CLUTCH HUBINNER CLUTCH HUB
-
1660032021000 SECTION WASHERSECTION WASHER
-
1761332001044 CLUTCH CAGE CPL.CLUTCH CAGE CPL.
-
1860038001132 OIL PUMP GEAR WHEEL 32-TOIL PUMP GEAR WHEEL 32-T
-
190618303526 NEEDLE BUSH HK 30X35X26NEEDLE BUSH HK 30X35X26
-
2060032020000 STOP DISK 30,2/50/2STOP DISK 30,2/50/2
-
2160232054000 PUSH ROD CPL. 110MMPUSH ROD CPL. 110MM
-
220760091862 SHAFT SEAL RING 9X18X06 B-NBRSHAFT SEAL RING 9X18X06 B-NBR
-
230402031780 NEEDLE ROL.DIN5402 NRB 3X17,8NEEDLE ROL.DIN5402 NRB 3X17,8
-
2461232069000 PUSH ROD GUIDEPUSH ROD GUIDE
-
2761232061051 SLEEVE CLUTCH CONTR.SLEEVE CLUTCH CONTR.
-
2860032061344 SLAVE CYLINDER CPL. LC8 DOTSLAVE CYLINDER CPL. LC8 DOT
-
2960032065000 O-RING GASKETO-RING GASKET
-
3060032061050 DISTANCE CLUTCH CONTR. CPL.DISTANCE CLUTCH CONTR. CPL.
-
3150332062000 HOLLOW SCREW CPL. M 10X1HOLLOW SCREW CPL. M 10X1
-
320603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
330025060506 HH COLLAR SCREW M6X50HH COLLAR SCREW M6X50
-
3461332004000 SUPPORT CLUTCH SPRINGSUPPORT CLUTCH SPRING
-
9960432011010 CLUTCH KIT 1190/1290CLUTCH KIT 1190/1290
