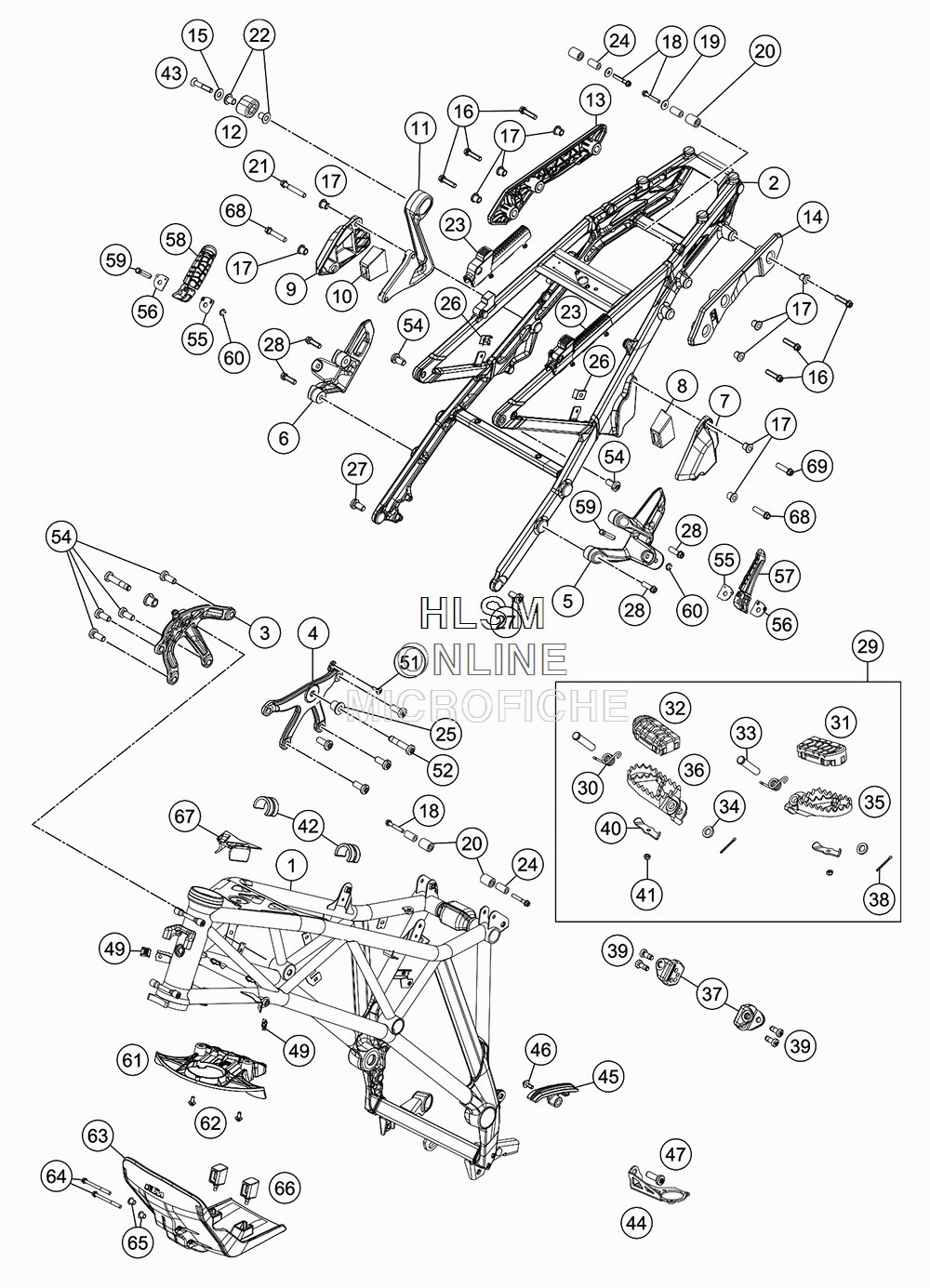

FRAME для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
160703001000EB FRAME ''607 QA'' ELEC OR .FRAME ''607 QA'' ELEC OR .
-
26030300200033 SUB FRAMESUB FRAME
-
36030300600033S ENGINE SUPPORT R/S BLACKENGINE SUPPORT R/S BLACK
-
46030300500033S ENGINE SUPPORT L/S BLACKENGINE SUPPORT L/S BLACK
-
56030304800033S FOOTR. SUP. REAR L/S BLACKFOOTR. SUP. REAR L/S BLACK
-
66030304900033S FOOTR. SUP. REAR R/S BLACKFOOTR. SUP. REAR R/S BLACK
-
760312010050 SUITCASE HOOK L/SSUITCASE HOOK L/S
-
860312010060 DAMPING RUBBER SUITCASE HOOKDAMPING RUBBER SUITCASE HOOK
-
960312011050 SUITCASE HOOK R/SSUITCASE HOOK R/S
-
1060312011060 DAMPING RUBBER SUITCASE HOOKDAMPING RUBBER SUITCASE HOOK
-
116030508400033S EXHAUST BRACKETEXHAUST BRACKET
-
1261305068000 DAMPING RUBBERDAMPING RUBBER
-
1360312021250 CASE BAR R/SCASE BAR R/S
-
1460312020250 CASE BAR L/SCASE BAR L/S
-
1560405069000 SHAPE DISC ALUSHAPE DISC ALU
-
160025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
1760303002058 SPACER BUSHING 13X17X8,2SPACER BUSHING 13X17X8,2
-
180025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
190021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2060307048000 RUBBER SEAT-CONTACT SURFACERUBBER SEAT-CONTACT SURFACE
-
210025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
2260305069000 BUSHINGBUSHING
-
2360307040041 PLATE RUBBER SEATPLATE RUBBER SEAT
-
2460307049000 BUSH 6.2X12X21.5BUSH 6.2X12X21.5
-
2560303007000 SPACER BUSH ENGINE SUPPORTSPACER BUSH ENGINE SUPPORT
-
2654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
270035100209 AH-COLLAR SCREW M10X20 ISA45AH-COLLAR SCREW M10X20 ISA45
-
280035080256 AH-COLLAR SCREW M8X25 ISA45AH-COLLAR SCREW M8X25 ISA45
-
2960003040133 FOOTPEG LS+RS CPL.FOOTPEG LS+RS CPL.
-
3054603041000 FOOTREST SPRING L/S & R/SFOOTREST SPRING L/S & R/S
-
3160003040010 FOOTREST RUBBER FRONT L/SFOOTREST RUBBER FRONT L/S
-
3260003041010 FOOTREST RUBBER FRONT R/SFOOTREST RUBBER FRONT R/S
-
3354803044000 PIN FOR FOOT PED 51.5X9.8 MMPIN FOR FOOT PED 51.5X9.8 MM
-
340125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
3578003040050 FOOTREST L/SFOOTREST L/S
-
3678003041050 FOOTREST R/SFOOTREST R/S
-
376030310109533S FOOTREST MOUNTINGFOOTREST MOUNTING
-
380094032253 PIN DIN0094-3,2X25 STEELPIN DIN0094-3,2X25 STEEL
-
390025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
4060003044010 CLOSING PANEL FRONT L/S R/SCLOSING PANEL FRONT L/S R/S
-
410985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
4261007014000 SPACER FUEL TANKSPACER FUEL TANK
-
430019080456 COUNTERSUNK SCREW ISA45 M5X45COUNTERSUNK SCREW ISA45 M5X45
-
4460312967040 OIL INFILLING ADAPTER BRACKETOIL INFILLING ADAPTER BRACKET
-
4560303070000 CHAIN GUIDECHAIN GUIDE
-
460024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
470035100309S AH-COLLAR SCREW M10X30 ISA45AH-COLLAR SCREW M10X30 ISA45
-
4954603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
5169008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
520035100509S AH-COLLAR SCREW M10X50 ISA45AH-COLLAR SCREW M10X50 ISA45
-
540035100249 AH-COLLAR SCREW M10X24 ISA45AH-COLLAR SCREW M10X24 ISA45
-
5560003152000 ENGAGE PANEL FOOTREST L/SENGAGE PANEL FOOTREST L/S
-
5660003052000 ENGAGE PANEL FOOTREST R/SENGAGE PANEL FOOTREST R/S
-
5760003050000 FOOTREST CPL. L/S REARFOOTREST CPL. L/S REAR
-
5860003051000 FOOTREST CPL. R/S REARFOOTREST CPL. R/S REAR
-
5960003044100 BOLT FOR FOOTREST REARBOLT FOR FOOTREST REAR
-
600799060003 TAB WASHER DIN6799-RS 6,0TAB WASHER DIN6799-RS 6,0
-
6160308024200 TRIPLECLAMP-FACEPLATE BELOWTRIPLECLAMP-FACEPLATE BELOW
-
620081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
636030319000030 SKID PLATESKID PLATE
-
640025060406 HH COLLAR SCREW M6X40HH COLLAR SCREW M6X40
-
6545239060050 COLLAR BUSHING 6,3X8X13X9,5COLLAR BUSHING 6,3X8X13X9,5
-
6660003096000 VIBRATION DAMPERVIBRATION DAMPER
-
6760303003010 STEARING HEAD COVERSTEARING HEAD COVER
-
680025080256 HH COLLAR SCREW M8X25HH COLLAR SCREW M8X25
-
690025080306 HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
