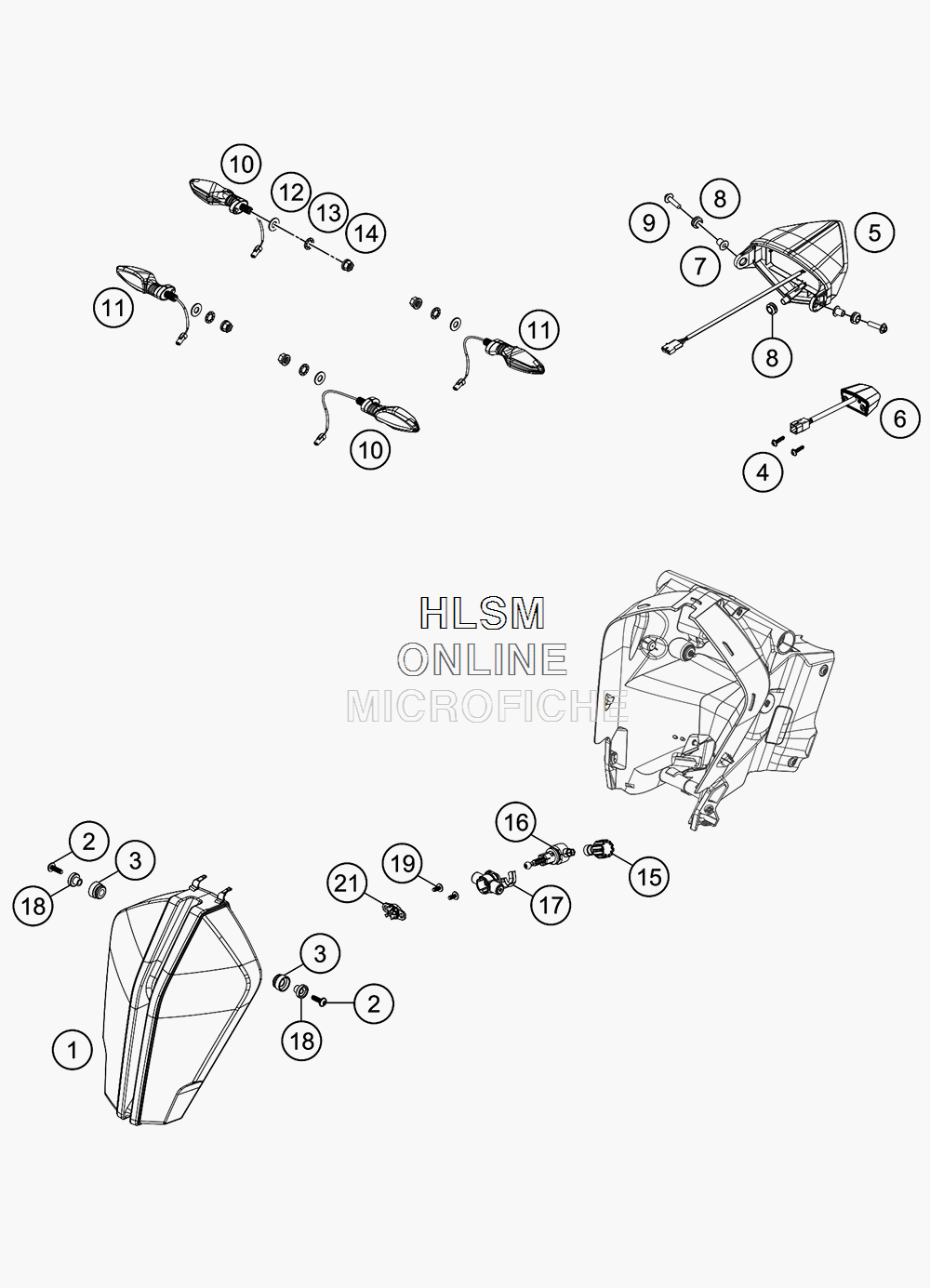

LIGHTING SYSTEM для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
160714001000 HEADLIGHT LED TFLHEADLIGHT LED TFL
-
260714014200 EJOT ALTRACS 5161 60X20EJOT ALTRACS 5161 60X20
-
360714011060 PLUG-IN ELEMENT HEADLIGHTPLUG-IN ELEMENT HEADLIGHT
-
40081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
560314040000 REAR LIGHTREAR LIGHT
-
660314047000 NUMBER PLATE LIGHTNUMBER PLATE LIGHT
-
760308006000 COLLAR BUSHING 6,2X9,2X15X12,5COLLAR BUSHING 6,2X9,2X15X12,5
-
860006001022 RUB.SLEEVE FLOAT CHAMB.VENTINGRUB.SLEEVE FLOAT CHAMB.VENTING
-
90024060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
1078114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
1178114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
120433100003 WASHER 18X10,5X1,6WASHER 18X10,5X1,6
-
130797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
1458414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
1560714023000 THUMBWHEEL HEADLIGHT ADJUST.THUMBWHEEL HEADLIGHT ADJUST.
-
1660714024100 HEADLIGHT SUPPORTHEADLIGHT SUPPORT
-
1760714020000 HEADLIGHT ADJUSTERHEADLIGHT ADJUSTER
-
1760714020000 HEADLIGHT ADJUSTERHEADLIGHT ADJUSTER
-
1961614018100 SCREWSCREW
-
2161614020100 BALLHEAD HOLDERBALLHEAD HOLDER
