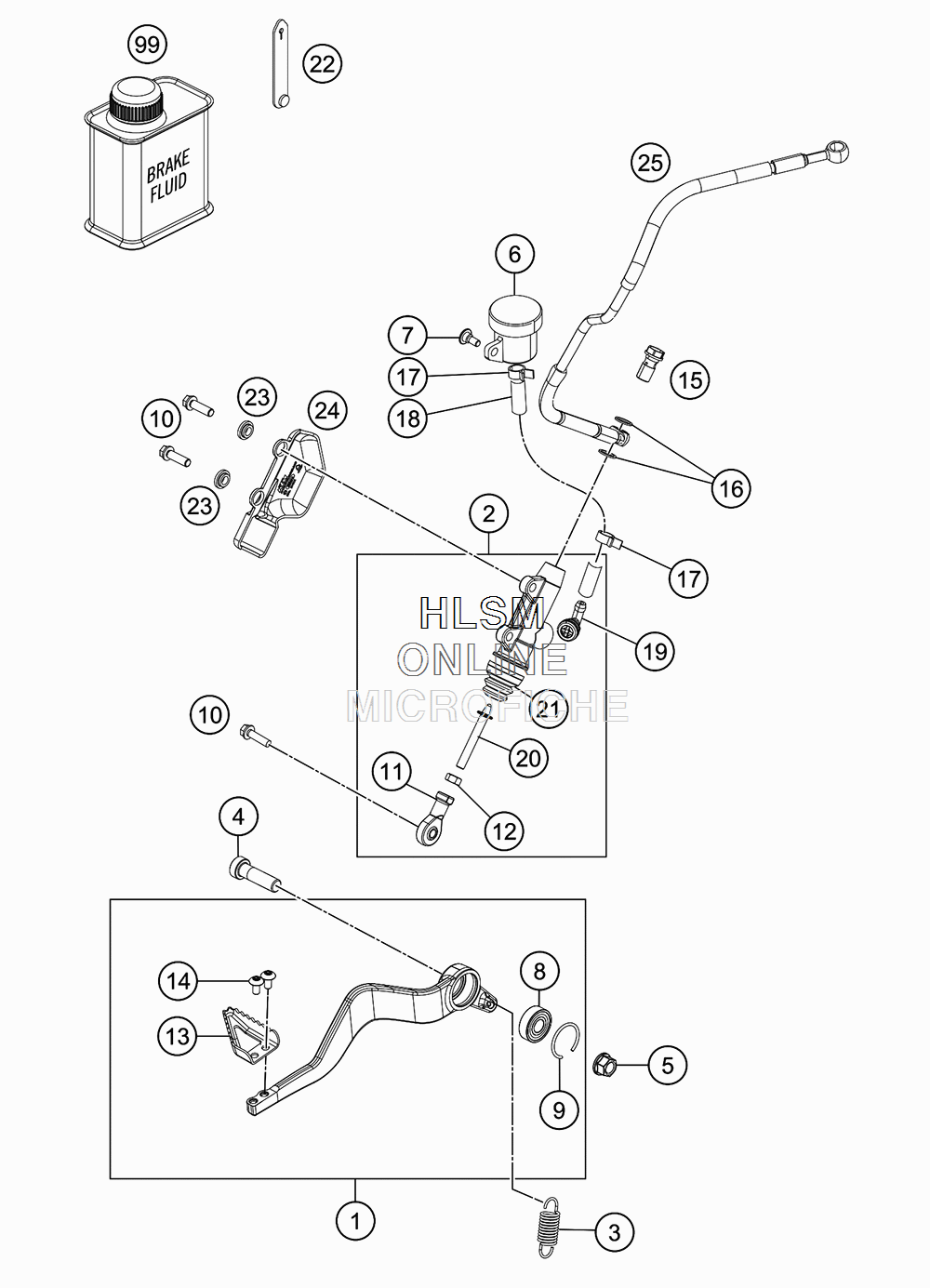

REAR BRAKE CONTROL для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
16031305004433S FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
26031306000030 REAR BRAKE CONTROLREAR BRAKE CONTROL
-
354603062100 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
40032100356S AH-COLLAR SCREW M10X35 ISA45AH-COLLAR SCREW M10X35 ISA45
-
554630044000 COLLAR NUT M10COLLAR NUT M10
-
654513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
769013099050 SCREW F. EXPANSION TANKSCREW F. EXPANSION TANK
-
80625060002 BALL BEARING SKF 6000-2RS1BALL BEARING SKF 6000-2RS1
-
90993026500 LOCK RING DIN7993-B26LOCK RING DIN7993-B26
-
100025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1154603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.SWIVEL HEAD M6 FOOT BRAKE LEV.
-
120934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1360313051000 STEP PLATE FOOT BRAKE LEVERSTEP PLATE FOOT BRAKE LEVER
-
1478105081010 SCREW TORX M5X10SCREW TORX M5X10
-
1562113020100 HOLL. SCREW M10X1X19.5HOLL. SCREW M10X1X19.5
-
160603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
1758007017000 YDNAC CLAMP 10101 (10,4MM)YDNAC CLAMP 10101 (10,4MM)
-
1869013069001 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
1954513155000 ANGLE PIECEANGLE PIECE
-
2060313056044 PUSH ROD CPL.PUSH ROD CPL.
-
2154513151000 RUBBER SLEEVERUBBER SLEEVE
-
2260011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
2350213161000 COLLAR BUSHINGCOLLAR BUSHING
-
2454513038000 BRAKE CYL. PROTECTOR "BREMBO"BRAKE CYL. PROTECTOR "BREMBO"
-
2560342001000 BRAKE HOSE REAR BRAKE CONTROLBRAKE HOSE REAR BRAKE CONTROL
-
9900062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
