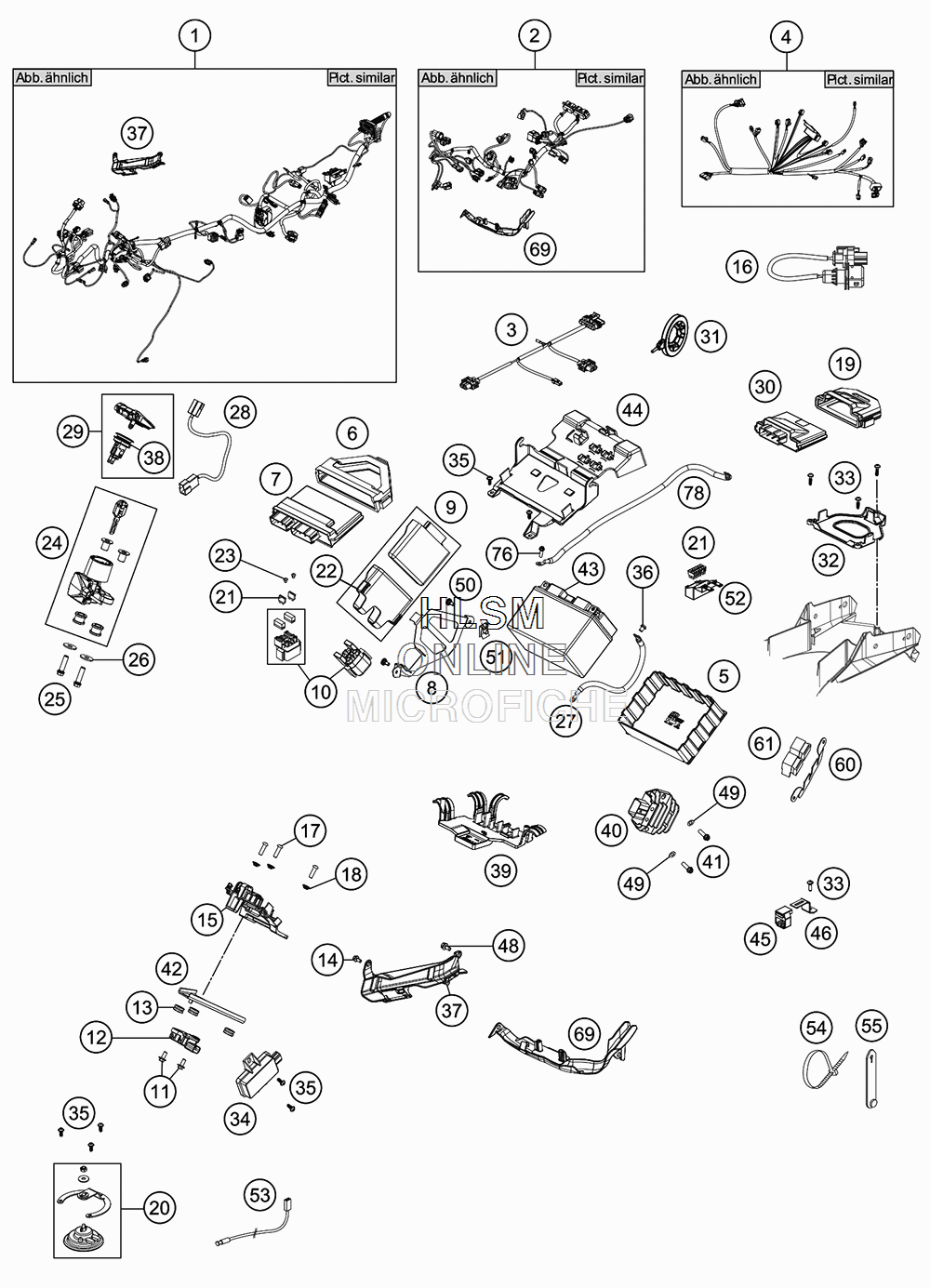

WIRING HARNESS для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
160711175033 MAIN WIRING HARNESS R CPL.MAIN WIRING HARNESS R CPL.
-
260711085000 WIRING HARNESSWIRING HARNESS
-
360311079000 WIRING HARNESS HEAD LIGHTWIRING HARNESS HEAD LIGHT
-
460311076000 REAR WIRING HARNESSREAR WIRING HARNESS
-
560311053050 BATTERIE HOUSINGBATTERIE HOUSING
-
660341031050 ECU RUBBER BRACKETECU RUBBER BRACKET
-
761341031300 CONTROL UNIT EFICONTROL UNIT EFI
-
860311057050 BRACKET ELECTRICBRACKET ELECTRIC
-
960416031000 ELECTRONIC CONTROL UNIT SAFEELECTRONIC CONTROL UNIT SAFE
-
1058211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
110024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
-
1260342090000 SLOPING POSITIONS SENSORSLOPING POSITIONS SENSOR
-
1362142041000 DAMP. COMPONENT ABS MODULDAMP. COMPONENT ABS MODUL
-
1469008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
1560711048000 CONNECTOR SUPPORT FRONTCONNECTOR SUPPORT FRONT
-
1660411078050 WIRING HARNESSWIRING HARNESS
-
170738060201 FLAT HEAD SCREW ISO7380 M6X20FLAT HEAD SCREW ISO7380 M6X20
-
1876508043050 COLLAR BUSHINGCOLLAR BUSHING
-
1960711033050 RUBBER BANDRUBBER BAND
-
2060711060033 DIRECT CURRENT HORN COMPLETEDIRECT CURRENT HORN COMPLETE
-
2158011109140 FUSE 40 AFUSE 40 A
-
2158011109130 FUSE 30 AFUSE 30 A
-
2158011109125 FUSE 25 AFUSE 25 A
-
2158011109115 FUSE 15 AFUSE 15 A
-
2158011109110 FUSE 10 AFUSE 10 A
-
2260316029000 RUBBER EDS-CONTROL UNITRUBBER EDS-CONTROL UNIT
-
230902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
2460711066000 LOCKSETLOCKSET
-
250025080306S HH COLLAR SCREW M8X30HH COLLAR SCREW M8X30
-
260021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
2760311059050 BATTERIE CABLEBATTERIE CABLE
-
2860711042050 CABLECABLE
-
2960714013033B2 POWER SOCKET COMPLETE SILVERPOWER SOCKET COMPLETE SILVER
-
3060711033000 CONTROL UNIT MCU 3.0CONTROL UNIT MCU 3.0
-
3169011168000 ANTENNA KEYLESSANTENNA KEYLESS
-
3160708019010 SUPPORTSUPPORT
-
330081050181 SCREW FOR PLASTIC K50X18 T20SCREW FOR PLASTIC K50X18 T20
-
3460312032000 RECEIVER AIR PRESSURE SENSORRECEIVER AIR PRESSURE SENSOR
-
350081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
360902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
3760311047000 CABLE CHANNEL R/SCABLE CHANNEL R/S
-
3860711042000 POWER SOCKET 12VPOWER SOCKET 12V
-
3960311049200 PLUG BOARD REARPLUG BOARD REAR
-
4060311034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
410025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
4260342090040 BRACKET SLOPING POSITIONS SENSBRACKET SLOPING POSITIONS SENS
-
4360011053000 BATTERY 12V/11AHBATTERY 12V/11AH
-
4460308017000 BATTERIE COVERBATTERIE COVER
-
4561041085050 RUBBER SUPP. PRESSURE SENSORRUBBER SUPP. PRESSURE SENSOR
-
4660311040100 BRACKET PRESSURE SENSORBRACKET PRESSURE SENSOR
-
480023060123 COLLAR SCREW M6X12COLLAR SCREW M6X12
-
4960007020040 PLASTIC WASHERPLASTIC WASHER
-
500025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
5154603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
5258411087050 RUBBERCOVER F.LOCKHOLDERRUBBERCOVER F.LOCKHOLDER
-
5361111018100 TEMPERATURE SENSORTEMPERATURE SENSOR
-
5444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
5444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
5444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
5560011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
5560011093060 RUBBER CABLE TIE 60MMRUBBER CABLE TIE 60MM
-
5560011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
6060711057050 RETAINING BRACKETRETAINING BRACKET
-
6161111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
6960311046000 CABLE CHANNEL L/SCABLE CHANNEL L/S
-
7860311097000 GROUND CABLEGROUND CABLE
