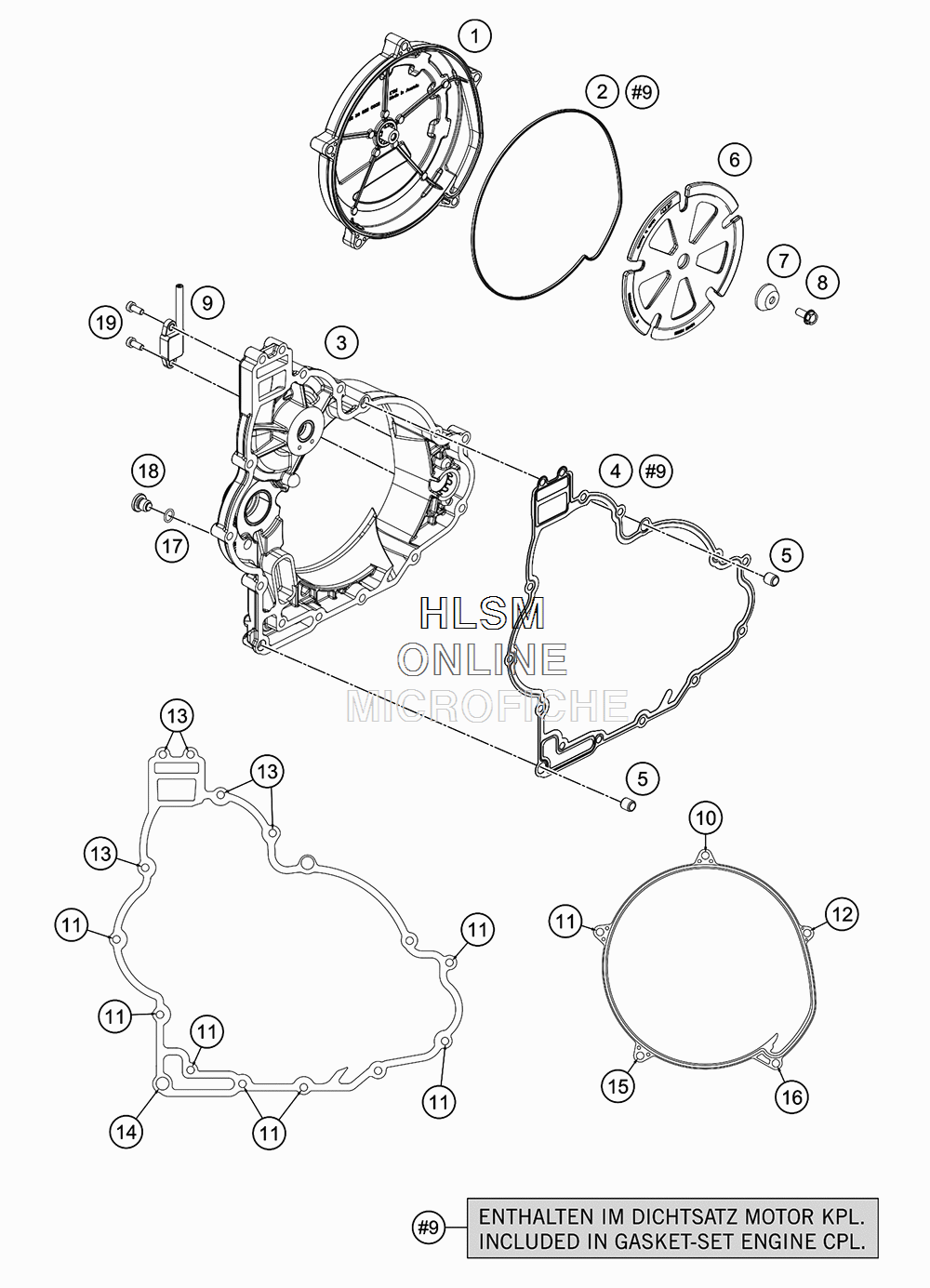

CLUTCH COVER для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
16033002600041 OUTER CLUTCH COVEROUTER CLUTCH COVER
-
261230027000 MOLDED RING OUTER CLUTCH COVERMOLDED RING OUTER CLUTCH COVER
-
36143000104441 CLUTCH COVER WITH BEARINGCLUTCH COVER WITH BEARING
-
461230025100 CLUTCH COVER GASKETCLUTCH COVER GASKET
-
549030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
660330026050 DAMPING SHEET CPL.DAMPING SHEET CPL.
-
760330026053 BUSHINGBUSHING
-
860030126080 EJOT ALTRACS SCR. WN5147;60X14EJOT ALTRACS SCR. WN5147;60X14
-
961434051000 GEAR-POSITION SENSORGEAR-POSITION SENSOR
-
100025060956 HH COLLAR SCREW M6X95HH COLLAR SCREW M6X95
-
110025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
120025060906 HH COLLAR SCREW M6X90HH COLLAR SCREW M6X90
-
130025060456 HH COLLAR SCREW M6X45HH COLLAR SCREW M6X45
-
140025060356 HH COLLAR SCREW M6X35HH COLLAR SCREW M6X35
-
150025060256 HH COLLAR SCREW M6X25HH COLLAR SCREW M6X25
-
160025060856 HH COLLAR SCREW M6X85HH COLLAR SCREW M6X85
-
1707700900151 O-RING 9X1,5 V80 SHO-RING 9X1,5 V80 SH
-
1877336056095 SCREW PLUGSCREW PLUG
-
190984050143S CYL. SCREW DIN6912 M5X14 8.8CYL. SCREW DIN6912 M5X14 8.8
