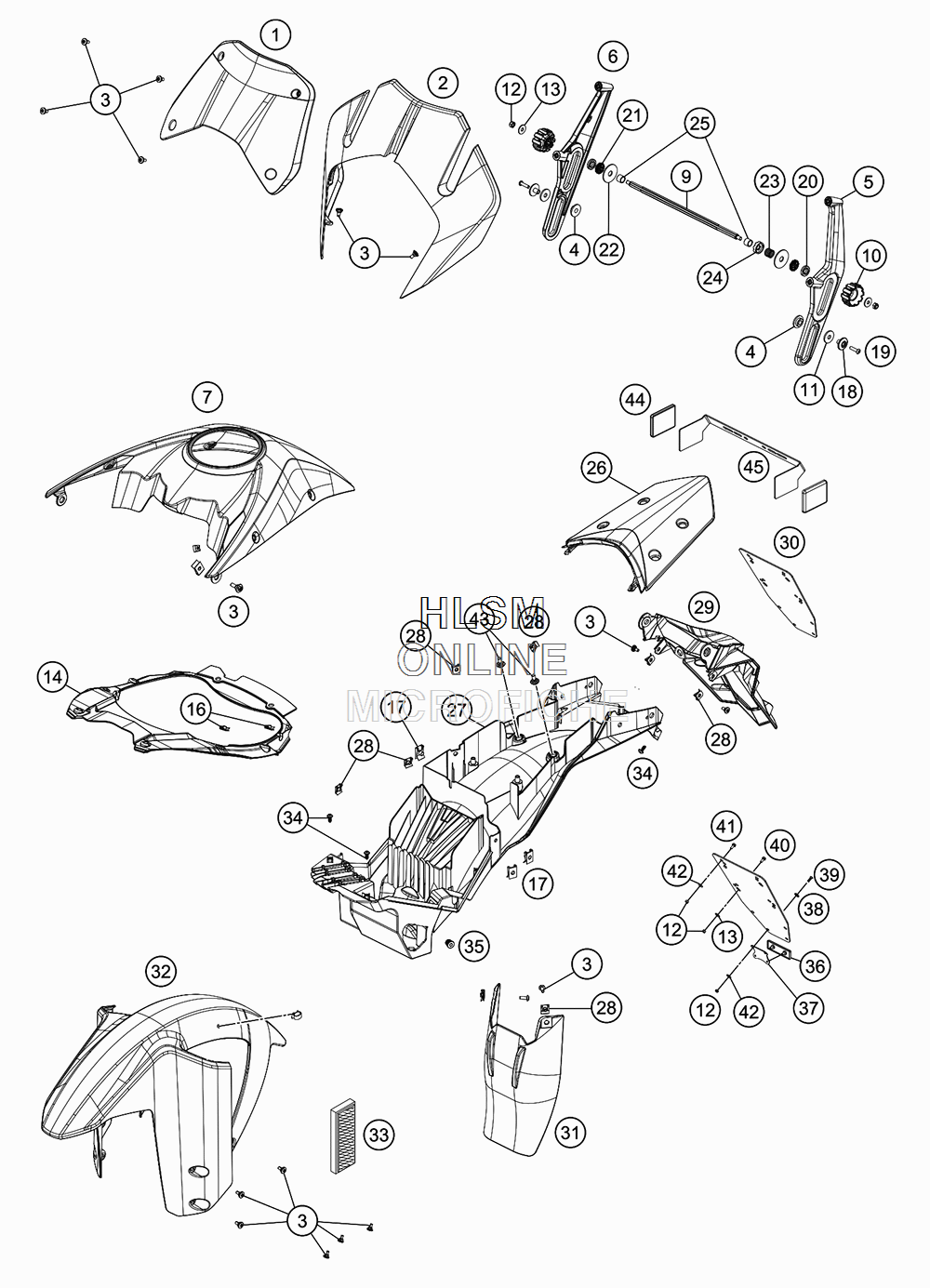

MASK- FENDERS для Ktm 1290 SUPER ADVENTURE R - 2017 года выпуска
-
№АртикулНазвание
-
160708508000 WINDSHIELD SHORT USAWINDSHIELD SHORT USA
-
260708001000 HEADLIGHT MASKHEADLIGHT MASK
-
369008021160 SPECIAL SCREW M5X12SPECIAL SCREW M5X12
-
460708008052 BEARING SLEEVEBEARING SLEEVE
-
56070800805033 WINDSHIELD SUPPORT LEFTWINDSHIELD SUPPORT LEFT
-
66070800805133 WINDSHIELD SUPPORT RIGHTWINDSHIELD SUPPORT RIGHT
-
760308030000EB TANK FAIRINGTANK FAIRING
-
960708008054 SHAFTSHAFT
-
1060408008053 ADJUSTING WHEELADJUSTING WHEEL
-
1160708008062 W ASHER D=24/T=2.5W ASHER D=24/T=2.5
-
120985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
130021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
1460708105000 DASHBOARD COVERDASHBOARD COVER
-
1669008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
1754603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
1860708008055 COLLARED BUSHCOLLARED BUSH
-
190738050202 LENS HEAD SCREW ISO 7380-M5X20A2LENS HEAD SCREW ISO 7380-M5X20A2
-
2060708008057 WINDSHIELD SUPPORT RUBBERWINDSHIELD SUPPORT RUBBER
-
2160408008155 GEAR 16TH ADJUSTMENTGEAR 16TH ADJUSTMENT
-
2260708008063 W ASHER D=36/T=2W ASHER D=36/T=2
-
2360708008067 SPRING WINDSHIELDSPRING WINDSHIELD
-
2460708008065 TEETH LOCK WASHER OUTSIDETEETH LOCK WASHER OUTSIDE
-
2560708008064 PLAIN BEARINGPLAIN BEARING
-
266030801300033 REAR FENDERREAR FENDER
-
2760308019200 TAIL END LOWER PARTTAIL END LOWER PART
-
2854603048200 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
2960308015000 NUMBER PLATE SUPPORTNUMBER PLATE SUPPORT
-
3060012081200 LICENCE FITTINGLICENCE FITTING
-
3160304050000 SPLASH PROTECTIONSPLASH PROTECTION
-
326030801000033 FRONT FENDERFRONT FENDER
-
3360012080100 SIDE REFLECTOR YELLOW "CEV"SIDE REFLECTOR YELLOW "CEV"
-
340081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
3560308095000 HOLDERHOLDER
-
3658412080200 REFLECTOR RED ''CEV''REFLECTOR RED ''CEV''
-
3758412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
3840006006000 WASHER 6MMWASHER 6MM
-
390966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
400024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
410024060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
420125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
4383008000015 SPECIAL SCREW M6X15X3SPECIAL SCREW M6X15X3
-
4416512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
4562512081100 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
