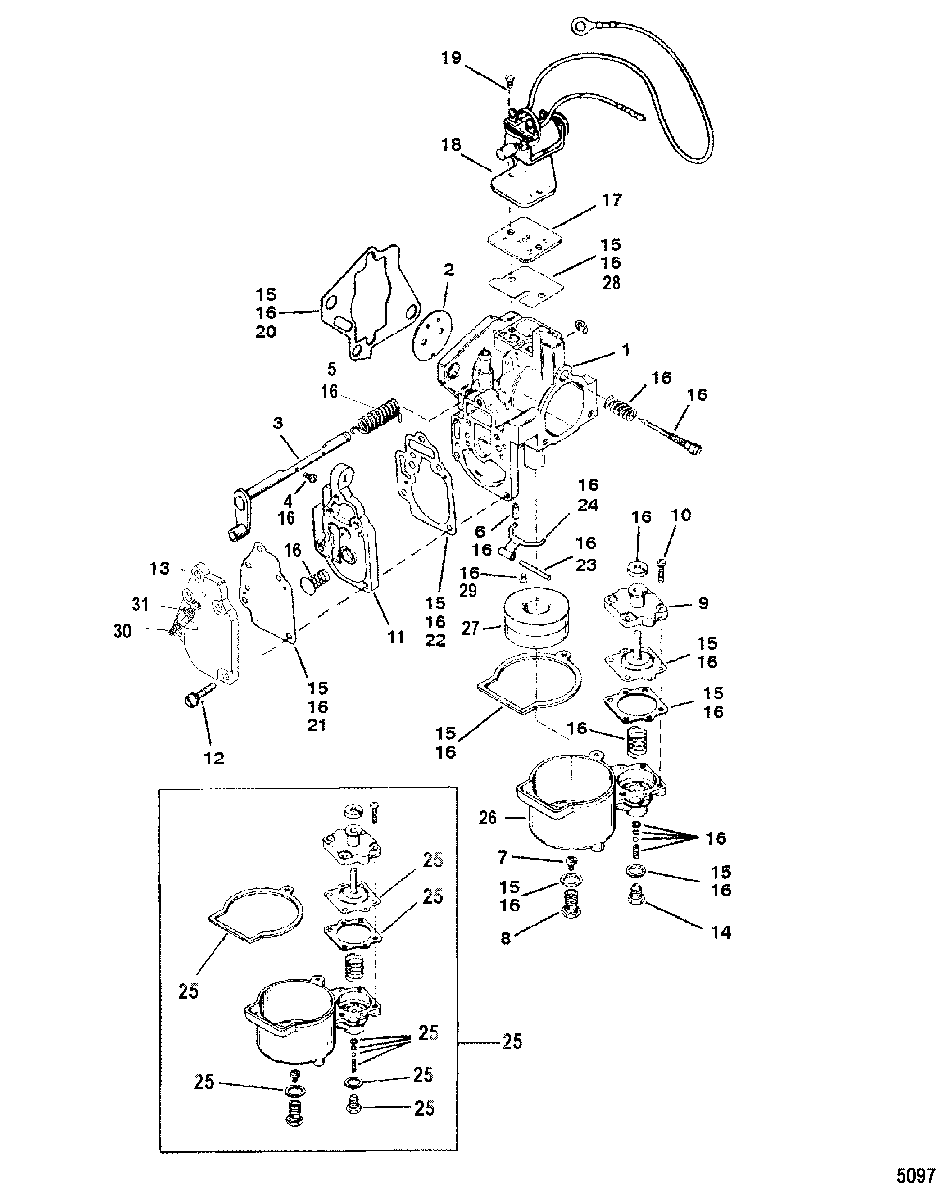

Carburetor(20/25/Jet 20) для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
11392-823907T12 CARBURETOR, (WMC-64)
(20 Hp)CARBURETOR, (WMC-64)
(20 Hp) -
11392-823907T12 CARBURETOR, (WMC-85A)
(20 Hp)CARBURETOR, (WMC-85A)
(20 Hp) -
11390-817405T23 CARBURETOR, (WMC-65)
(25 Hp/Jet 20)CARBURETOR, (WMC-65)
(25 Hp/Jet 20) -
11390-817405T23 CARBURETOR, (WMC-87A)
(25 Hp/Jet 20)CARBURETOR, (WMC-87A)
(25 Hp/Jet 20) -
2815133 VALVE, Throttle
(WMC-64)(WMC-85A)VALVE, Throttle
(WMC-64)(WMC-85A) -
21395-96461 VALVE, Throttle
(WMC-65)(WMC-87A)VALVE, Throttle
(WMC-65)(WMC-87A) -
31395-96951 SHAFT, ThrottleSHAFT, Throttle
-
41395-804997 SCREWSCREW
-
51395-804996 SPRINGSPRING
-
61395-803861 VALVE, Inlet NeedleVALVE, Inlet Needle
-
71395-7394 JET, (.044)
(WMC-64)(WMC-85A)JET, (.044)
(WMC-64)(WMC-85A) -
71399-3796 JET, (.076)
(WMC-65)(WMC-87A)JET, (.076)
(WMC-65)(WMC-87A) -
81395-9171 PLUGPLUG
-
91395-823648 COVER, DiaphragmCOVER, Diaphragm
-
101395-9697 SCREWSCREW
-
111395-9702 BODYBODY
-
121395-9643 SCREWSCREW
-
131395-96371 COVER, Fuel PumpCOVER, Fuel Pump
-
141395-9762 PLUGPLUG
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR KITREPAIR KIT
-
171395-9699 PLATE, ManualPLATE, Manual
-
181395-823433 CHOKE, Electric, ElectricCHOKE, Electric, Electric
-
191395-9696 SCREWSCREW
-
2027-192061 GASKET, CarburetorGASKET, Carburetor
-
211395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
221395-9633 GASKETGASKET
-
23F10064 SHAFTSHAFT
-
241395-824401 LEVER, FloatLEVER, Float
-
251395-9844A1 SERVICE KIT, Primer/Injector
(See Illustrations for Contents)SERVICE KIT, Primer/Injector
(See Illustrations for Contents) -
261395-9164 BOWL, FuelBOWL, Fuel
-
271395-91691 FLOATFLOAT
-
2827-44426 GASKETGASKET
-
291395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
3010-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
3111-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
-27-41499A88 GASKET SETGASKET SET
-
-804946T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
