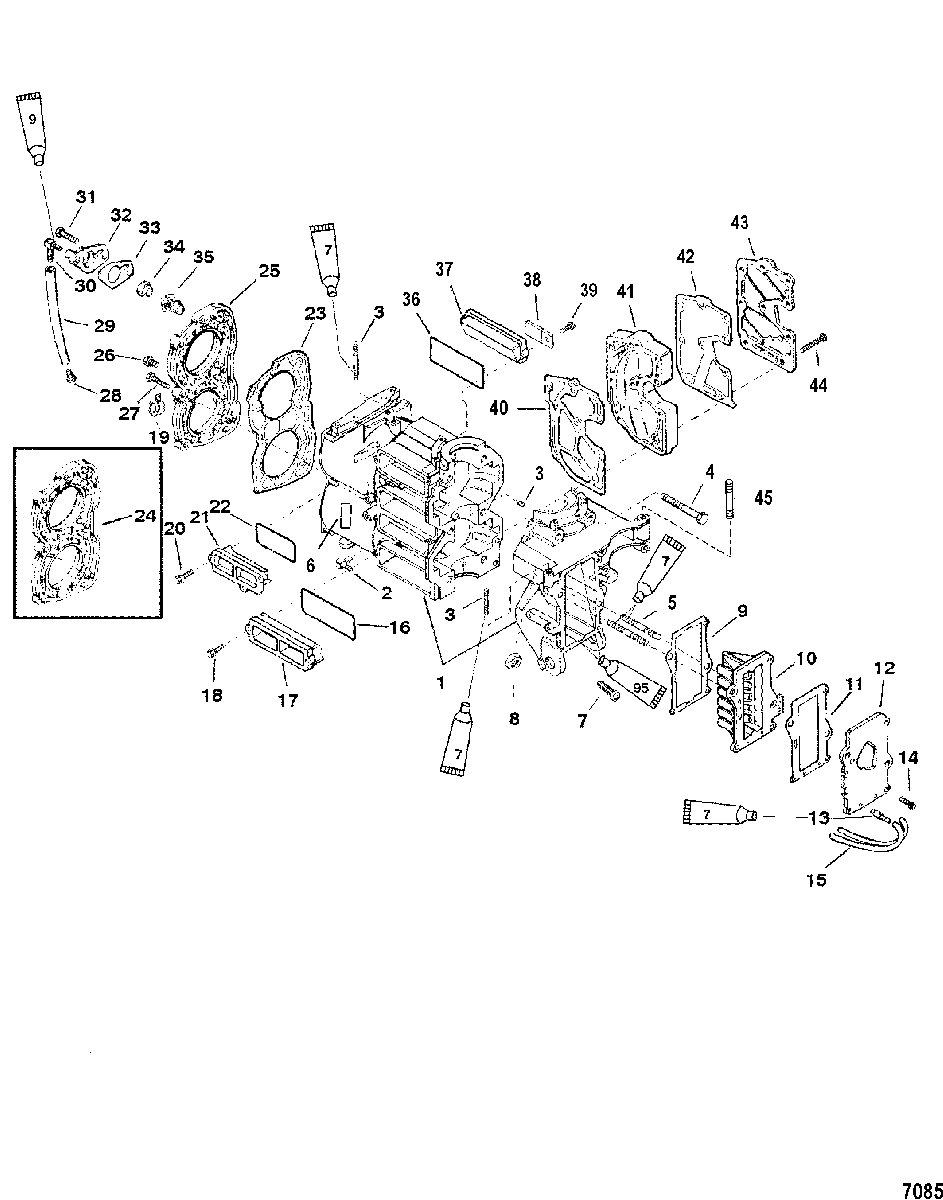

Cylinder Block and Covers для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
1872-9533T40 CYLINDER BLOCKCYLINDER BLOCK
-
222-15133 FITTING (45 Degree)FITTING (45 Degree)
-
317-85171 PIN, DowelPIN, Dowel
-
410-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
516-429173 STUDSTUD
-
6NSS NOT SOLD SEPARATE, Decal-SerializationNOT SOLD SEPARATE, Decal-Serialization
-
710-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
811-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
927-414172 GASKETGASKET
-
1014112T REED BLOCKREED BLOCK
-
1127-414181 GASKETGASKET
-
1241420A3 PLATE ASSEMBLY, Carb AdaptorPLATE ASSEMBLY, Carb Adaptor
-
1321-889781 CHECK VALVECHECK VALVE
-
1410-40011108 SCREW, (M5 x 20) Stainless SteelSCREW, (M5 x 20) Stainless Steel
-
1532-892024122 TUBING, (240.00 Inches Bulk) (Cut to 13.25 Inch Length)TUBING, (240.00 Inches Bulk) (Cut to 13.25 Inch Length)
-
1625-822370 O-RING, (2.362 x .103)O-RING, (2.362 x .103)
-
1714408 COVERCOVER
-
1810-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
1954-55098 J CLIP
(Quanity of 2 on Remote Control)J CLIP
(Quanity of 2 on Remote Control) -
2010-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2114406 COVERCOVER
-
2225-86391 O-RINGO-RING
-
2327-863895 GASKETGASKET
-
241028-8282A1 COVER ASSEMBLYCOVER ASSEMBLY
-
25NSS NOT SOLD SEPARATE, CoverNOT SOLD SEPARATE, Cover
-
2622-390721 PLUG, Pipe (.125-27) Brass
(Electric RC)PLUG, Pipe (.125-27) Brass
(Electric RC) -
2710-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
2822-94848 FITTINGFITTING
-
2932-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8.00 Inch Length)HOSE, (57.00 Inches Bulk) (Cut to 8.00 Inch Length)
-
3022-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
3110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
32143171 COVERCOVER
-
3327-14318005 GASKETGASKET
-
3427-62386001 GASKETGASKET
-
3514586 THERMOSTATTHERMOSTAT
-
3625-822370 O-RING, (2.362 x .103)O-RING, (2.362 x .103)
-
37144071 COVER
SN# 0P042112 & UpCOVER
SN# 0P042112 & Up -
37144071 COVER
SN# 0P042111 & BelowCOVER
SN# 0P042111 & Below -
3854-825404 STRAPSTRAP
-
3910-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
4027-892158 GASKET, Exhaust ManifoldGASKET, Exhaust Manifold
-
4192329F03 MANIFOLD, ExhaustMANIFOLD, Exhaust
-
4227-892157 GASKET, Exhaust Manifold CoverGASKET, Exhaust Manifold Cover
-
43923301 COVERCOVER
-
4410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
4516-8M0034424 STUD, (M6 x 50)
(Seapro/Marathon)STUD, (M6 x 50)
(Seapro/Marathon) -
-804946T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-41499A88 GASKET SETGASKET SET
