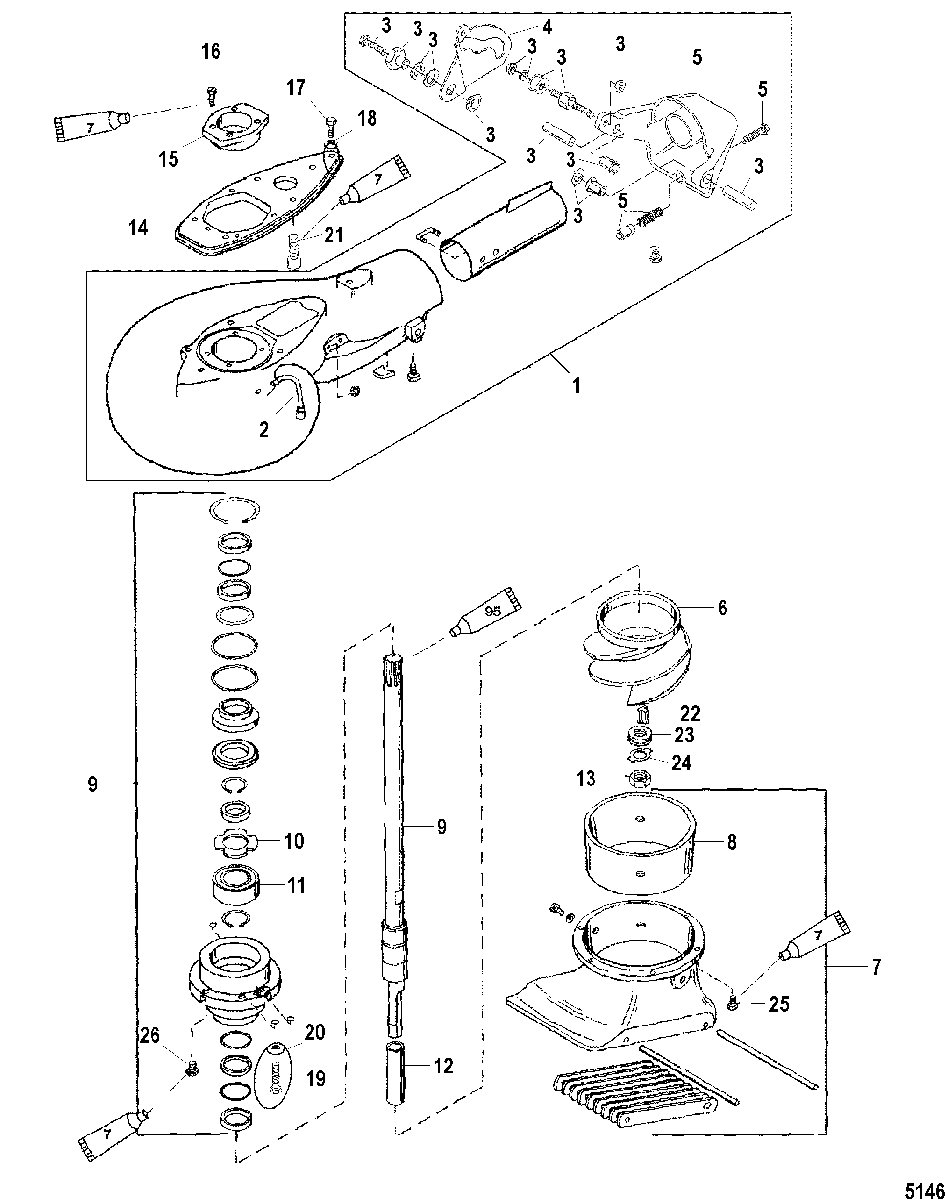

Jet Pump Assembly для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
-856143A4 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1801411251 HOUSING, PumpHOUSING, Pump
-
232-827490 HOSE, LubeHOSE, Lube
-
3878376 SHIFT LINKAGE KITSHIFT LINKAGE KIT
-
4878381 CAMCAM
-
5878378 GATE, Reverse - With BumperGATE, Reverse - With Bumper
-
647-855708T25 IMPELLER
(Stainless Steel)IMPELLER
(Stainless Steel) -
780141225 HOUSING, IntakeHOUSING, Intake
-
8827188T LINERLINER
-
945-8M0084536 DRIVESHAFTDRIVESHAFT
-
1012-879652 THRUST WASHERTHRUST WASHER
-
1130-879653 BEARING, BallBEARING, Ball
-
1223-827189 SLEEVESLEEVE
-
1311-827190 NUTNUT
-
14801430 ADAPTORADAPTOR
-
15801431 BASE, PumpBASE, Pump
-
1610-846500 SCREW, (#10-32 x 1.00) Stainless SteelSCREW, (#10-32 x 1.00) Stainless Steel
-
1710-19925125 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
1812-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1910-19924200 SCREW, (.312-18 x 2.00)SCREW, (.312-18 x 2.00)
-
2012-12038 WASHERWASHER
-
2110-801432 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
2228-801405625 KEY, ImpellerKEY, Impeller
-
2315-801404625 SHIM, ImpellerSHIM, Impeller
-
2414-801403625 TAB WASHERTAB WASHER
-
2510-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
2610-F2211 SCREW, (#10-24 x .625) Stainless SteelSCREW, (#10-24 x .625) Stainless Steel
