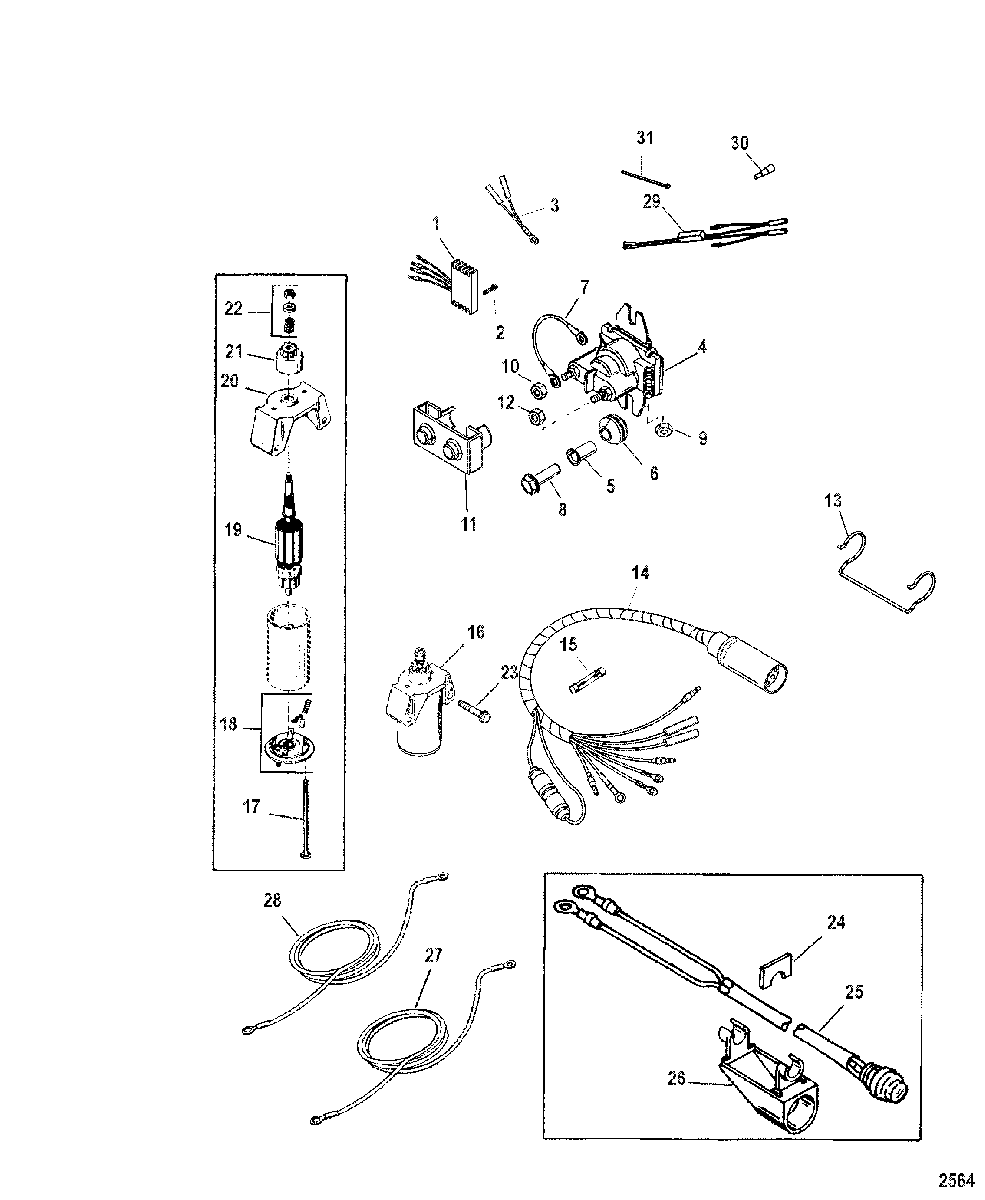

Electric Start Components для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
1853358T1 RECTIFIERRECTIFIER
-
210-883075 SCREW, (#10-16 x 1.25)SCREW, (#10-16 x 1.25)
-
384-11149A54 HARNESS ASSEMBLY, AdaptorHARNESS ASSEMBLY, Adaptor
-
489-850188T1 SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
523-818968 BUSHINGBUSHING
-
625-818967 GROMMETGROMMET
-
784-88809A5 WIRE ASSEMBLYWIRE ASSEMBLY
-
810-40011129 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
911-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
1011-64015 NUT, (.250-20)NUT, (.250-20)
-
1185-97861 INSULATORINSULATOR
-
1211-64015 NUT, (.250-20)NUT, (.250-20)
-
1392753 RETAINERRETAINER
-
1484-92436A9 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
1588-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1650-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1650-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1710-96566 THRU BOLTTHRU BOLT
-
1896564T END CAP, With BrushesEND CAP, With Brushes
-
1996565 ARMATUREARMATURE
-
2096563T END CAPEND CAP
-
2196562 DRIVEDRIVE
-
2296561 DRIVE KITDRIVE KIT
-
2310-421251 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
24824918 CLIP
(Local Electric)CLIP
(Local Electric) -
2587-823609A6 SWITCH ASSEMBLY, Start/Stop
(Local Electric)SWITCH ASSEMBLY, Start/Stop
(Local Electric) -
26889734 HOUSING, Switch
(Local Electric)HOUSING, Switch
(Local Electric) -
2784-88439A28 CABLE ASSEMBLY, Battery - BlackCABLE ASSEMBLY, Battery - Black
-
2884-88439A27 CABLE ASSEMBLY, Red - BatteryCABLE ASSEMBLY, Red - Battery
-
2917461T11 MODULE KIT, Tachometer AdaptorMODULE KIT, Tachometer Adaptor
-
3013541 PLUG, MalePLUG, Male
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
