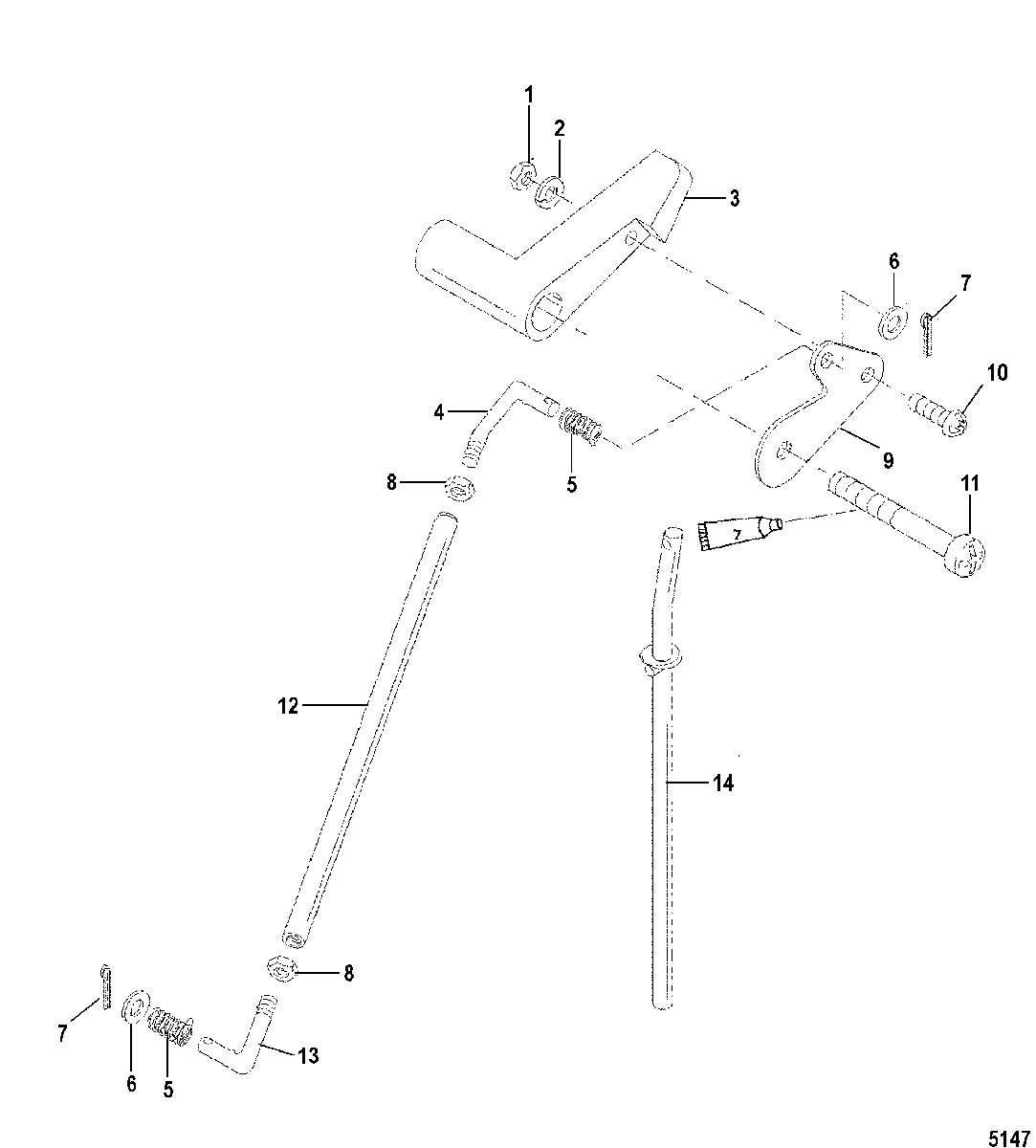

Jet Linkage для Mariner - 20 (2 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
111-87599 NUTNUT
-
213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
38239521 SHIFT HANDLESHIFT HANDLE
-
4828251 ROD ENDROD END
-
524-828252 SPRINGSPRING
-
612-846673 WASHER, (.265 x .500 x .060) Stainless SteelWASHER, (.265 x .500 x .060) Stainless Steel
-
718-56206 COTTER PINCOTTER PIN
-
811-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
9828253 LEVER, ShiftLEVER, Shift
-
1010-828254 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1110-828255 SCREW, (#10-32 x 2.50)SCREW, (#10-32 x 2.50)
-
12828256 SHIFT RODSHIFT ROD
-
13828257 ROD ENDROD END
-
14828258 TILT LATCH RODTILT LATCH ROD
Все узлы модели:
- Accessories
- Bottom Cowl
- Carburetor(20/25/Jet 20)
- Carburetor(Seapro/Marathon 20/25)
- Clamp Bracket Assembly
- Crankshaft, Pistons and Flywheel
- Cylinder Block and Covers
- Driveshaft Housing Assembly
- Electric Start Components
- Fuel System Components(Commercial Engines)
- Fuel System Components(Commercial Engines)
- Fuel System Components(USA-1B153167/BEL-0P365661 and Below)
- Fuel System Components(USA-1B153168/BEL-0P365662 and up)
- Gasket Set Components, Engine Overhaul
- Gear Housing(Driveshaft)(2.25:1 Gear Ratio)
- Gear Housing, Propeller Shaft - 2.25:1 Gear Ratio
- Ignition/Electrical Components
- • Jet Linkage
- Jet Pump Assembly
- Jet Water Pump Components
- Lube Chart
- Service/Support Material
- Starter Assembly(Manual)
- Swivel Bracket Assembly
- Throttle and Shift Linkage(Remote Control)
- Throttle and Shift Linkage(Side Shift)
- Throttle and Shift Linkage(Tiller Handle Shift)
- Tiller Handle Assembly
- Tools, Special
- Top Cowl
