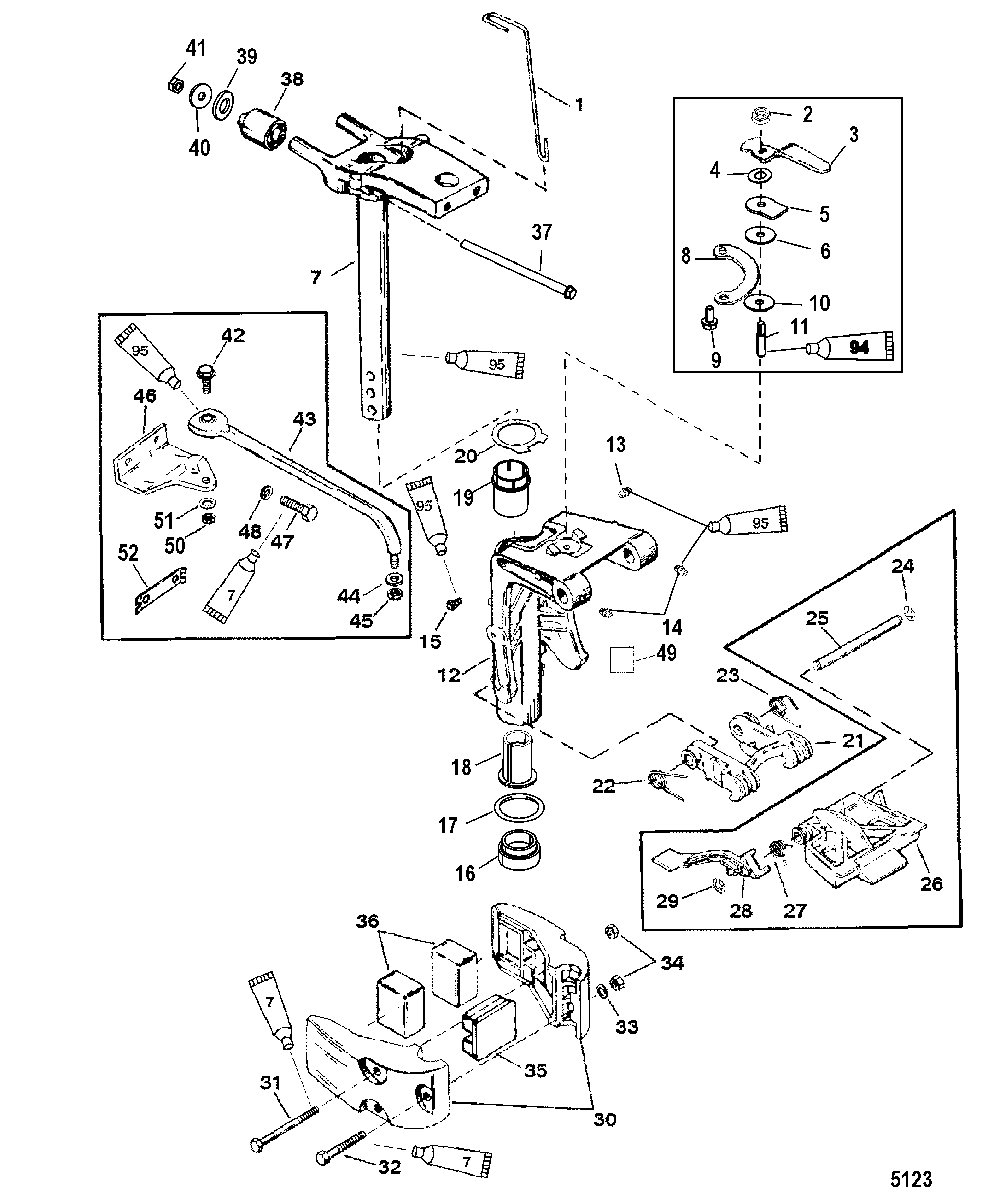

Swivel Bracket Assembly для Mariner - 20 (2 CYL.) 0P325500 & Up

№

Артикул

Название
1

165541 ROD, Reverse Hook

ROD, Reverse Hook

2 130 ₽
2

11-8M0042636 NUT, (.375-24) Stainless Steel
(Tiller Handle)

NUT, (.375-24) Stainless Steel
(Tiller Handle)

150 ₽
3

821959 HANDLE
(Tiller Handle)

HANDLE
(Tiller Handle)

1 090 ₽
4

12-29330 WASHER
(Tiller Handle)

WASHER
(Tiller Handle)

100 ₽
5

821957 BRAKE PLATE
(Tiller Handle)

BRAKE PLATE
(Tiller Handle)

1 100 ₽
6

8165621 DISC
(Tiller Handle)

DISC
(Tiller Handle)

1 030 ₽
7

822238A9 SWIVEL HEAD
(Black)

SWIVEL HEAD
(Black)

26 140 ₽
8

821958A1 PLATE KIT
(Tiller Handle)

PLATE KIT
(Tiller Handle)

1 260 ₽
9

10-40011126 SCREW, (M6 x 13) Stainless Steel
(Tiller Handle)

SCREW, (M6 x 13) Stainless Steel
(Tiller Handle)

220 ₽
10

8165621 DISC
(Tiller Handle)

DISC
(Tiller Handle)

1 030 ₽
11

821961 ROD
(Tiller Handle)

ROD
(Tiller Handle)

1 020 ₽
12

3415-822237A3 SWIVEL BRACKET
(Black)

SWIVEL BRACKET
(Black)

34 690 ₽
13

22-74036 FITTING, Grease

FITTING, Grease

340 ₽
14

22-74036 FITTING, Grease

FITTING, Grease

340 ₽
15

22-74036 FITTING, Grease

FITTING, Grease

340 ₽
16

23-85154A1 BUSHING KIT

BUSHING KIT

1 200 ₽
17

25-86993 O-RING

O-RING

380 ₽
18

NSS NOT SOLD SEPARATE, Bushing

NOT SOLD SEPARATE, Bushing

0 ₽
19

NSS NOT SOLD SEPARATE, Bushing

NOT SOLD SEPARATE, Bushing

0 ₽
20

NSS NOT SOLD SEPARATE, Washer

NOT SOLD SEPARATE, Washer

0 ₽
21

98830A3 HOOK ASSEMBLY, Reverse Lock

HOOK ASSEMBLY, Reverse Lock

1 730 ₽
22

24-97427 SPRING
(Remote Control Models)

SPRING
(Remote Control Models)

870 ₽
22

24-879894 SPRING
(All other Models)

SPRING
(All other Models)

460 ₽
23

24-96018 SPRING

SPRING

870 ₽
24

53-13194 RING, Retaining
(Tiller Handle)

RING, Retaining
(Tiller Handle)

110 ₽
25

17-13195 PIN

PIN

2 260 ₽
26

12756 BRACKET
(Tiller Handle)

BRACKET
(Tiller Handle)

2 350 ₽
27

24-12754 SPRING
(Tiller Handle)

SPRING
(Tiller Handle)

380 ₽
28

12758 LEVER
(Tiller Handle)

LEVER
(Tiller Handle)

1 320 ₽
29

53-13194 RING, Retaining
(Tiller Handle)

RING, Retaining
(Tiller Handle)

110 ₽
30

17232A1 COVER
(Tiller Handle)

COVER
(Tiller Handle)

8 330 ₽
31

10-19943100 SCREW, (M8 x 100)

SCREW, (M8 x 100)

710 ₽
32

10-1994360 SCREW, (M8 x 60)

SCREW, (M8 x 60)

560 ₽
33

12-36001 WASHER

WASHER

100 ₽
34

11-400213 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

180 ₽
35

85123001 BUMPER, Front

BUMPER, Front

1 090 ₽
36

85122001 MOUNT, Lower

MOUNT, Lower

1 910 ₽
37

10-125161 SCREW, (M8 x 133)

SCREW, (M8 x 133)

4 510 ₽
38

14894 MOUNT

MOUNT

4 200 ₽
39

12-85172 WASHER, Upper Mount Screw

WASHER, Upper Mount Screw

120 ₽
40

12-43430 WASHER

WASHER

210 ₽
41

11-400213 NUT, (M8) Stainless Steel

NUT, (M8) Stainless Steel

180 ₽
42

10-849838 SCREW, (.375-24 x 1.250)
(Remote Control)

SCREW, (.375-24 x 1.250)
(Remote Control)

1 670 ₽
43

41323A03 ATTACHING KIT, Steering Link
(Remote Control)

ATTACHING KIT, Steering Link
(Remote Control)

7 910 ₽
44

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(Remote Control)

WASHER, (.390 x .625 x .062) Stainless Steel
(Remote Control)

50 ₽
45

11-8M0042636 NUT, (.375-24) Stainless Steel
(Remote Control)

NUT, (.375-24) Stainless Steel
(Remote Control)

150 ₽
46

96186A2 BRACKET ASSEMBLY
(Remote Control)

BRACKET ASSEMBLY
(Remote Control)

3 590 ₽
47

10-1993325 SCREW, (M10 x 25)
(Remote Control)

SCREW, (M10 x 25)
(Remote Control)

600 ₽
48

13-400248 LOCKWASHER, (M10)
(Remote Control)

LOCKWASHER, (M10)
(Remote Control)

50 ₽
49

NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate

NOT SOLD SEPARATE, Decal-Serial Overlaminate

0 ₽
50

11-8M0042636 NUT, (.375-24) Stainless Steel
(Remote Control)

NUT, (.375-24) Stainless Steel
(Remote Control)

150 ₽
51

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel

WASHER, (.390 x .625 x .062) Stainless Steel

50 ₽
52

96201 STRAP, Key (Included with Ride Guide Bracket)
(Remote Control)

STRAP, Key (Included with Ride Guide Bracket)
(Remote Control)

200 ₽
-

27-41499A88 GASKET SET

GASKET SET

11 760 ₽
